FluiDyne products

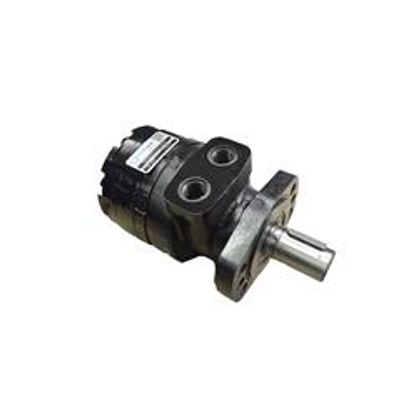

Our motor adapts the Geroler gear set design with high speed distribution of flow and high pressure. It offers a perfect compromise between price and performance by producing a high torque motor at a reasonable price. Our 500-Series motors are available in the following displacements: 125, 160, 200, 230, 250, 300, 350, 375, 475, 540 and 750. The motors are bi-directional and interchangeable with popular brands, such as: Charlynn, White, Ross, Parker and Danfoss.

Our VTM42 power steering pumps are for mobile use. They have high efficiency. Available in ring sizes: 10, 15, 20, 40, 50, and 60. Threaded (VTM42 only) and splined (VTM42A only) shafts are also available. Our VTM42 vane pumps are ready for immediate shipment and offer 18 month warranty.

Our balanced vane motors are not only compact and efficient, but they have the ability to provide variable speed, variable horsepower, and constant torque. They offer speeds to 2200 rpm at maximum pressure.

FluiDyne`s A4V piston pump are in stock and ready to ship. We carry a complete line of A4V piston pumps that are available in displacement of 40, 71, 125, 180, 250. Pressure controls include pressure only, remote pressure, pressure & flow, and horsepower limiting, Side porting, Metric and SAE mounting. Controls include: DR, DRG, FR, FRG, DFR, and LR2.

FluiDyne vane pumps are rated up to 2000 psi and 1800 rpm. They are offered in drop-in replacement on flange mounting (V210), foot mounting (V214) and face mounting (V230) with Buna or Viton seals. The V200 Series has a robust dual shaft bearing design and double lipped shaft seals. Shafts are available in straight keyed long (standard), short, male threaded shaft end and spline. Other shafts are available upon request.

FluiDyne vane pumps are rated up to 2000 psi and 1800 rpm. They are offered in drop-in replacement on flange mounting (V210), foot mounting (V214) and face mounting (V230) with Buna or Viton seals. The V200 Series has a robust dual shaft bearing design and double lipped shaft seals. Shafts are available in straight keyed long (standard), short, male threaded shaft end and spline. Other shafts are available upon request.

FluiDyne A10V10 piston pump (52 design) Variable Displacement are available in a uniquely small displacement 10 cm3/rev (0.61 in3/rev). Pressures to 250 bar (3600 psi) nominal with speeds as high as 3600 rpm. Multiple control options include pressure only (DR), remote pressure (DRG), and pressure & flow (DFR(1)). Both Metric or SAE mount and Rear Porting are standard on this pump.

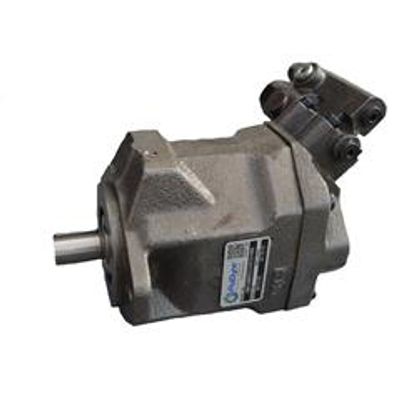

FluiDyne A10V piston pumps (-31 design) Variable Displacements are available in displacements 18 cm3/rev to 140 cm3/rev (0.61 in3/rev to 8.54 in3/rev), pressures to 280 bar (4000 psi) nominal, single pump or thru drive pumps, Pressure controls include pressure only, remote pressure, pressure & flow, and horsepower limiting, Side or Rear porting, Metric and SAE mounting.

FluiDyne A10V -52/53 design piston pump Variable Displacements are available in displacements 28 cm3/rev to 63 cm3/rev (1.71 in3/rev to 3.84 in3/rev), pressures to 315 bar (4500 psi) nominal, single pump or thru drive pumps, Pressure controls include pressure only, remote pressure, pressure & flow, and horsepower limiting, Side or Rear porting, Metric and SAE options.

FluiDyne’s gear pumps are well suited for both industrial and mobile applications. Available in SAE AA. Displacements from .04 in3/rev to .82 in3/rev., Single Pumps, pressures to 3600 psi and speeds to 4000 rpm.
