Flux Pumps Intern. (UK) Ltd. products

FLUX offers pre-configured pump sets consisting of pump, drive motor, hose, hose clamps, hand nozzle and compression gland to secure the pump in your container. An ideal solution for manually controlled transfer of almost any liquid.  Please do not hesitate to call if you require pump selection advice.

Need to improve safety and reduce manual handling? Want to improve dispensing speed and accuracy? Cut waste and reduce spills?  Improve productivity and profitability?  Then talk to FLUX, experts in drum, IBC and tank and dispensing solutions. Whatever your problem, whatever the liquid, whatever the viscosity, FLUX can probably help.  Flammable liquids, food and beverage products, aggressive acids and alkalis, oils and greases – we can pump and dispense them all.  Both electric and compressed air powered solutions are available.

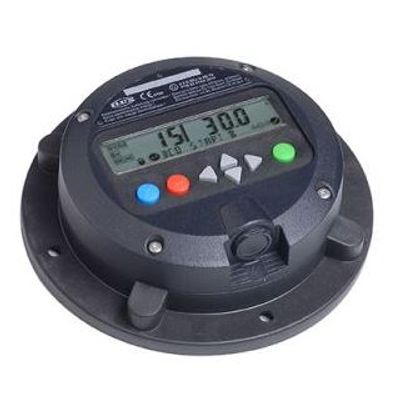

The FLUXTRONIC controller is combined with FMC/FMO flowmeter to deliver safe, accurate, filling and dispensing of almost any liquid, from 250 ml to 500+ kg.  Typical accuracy

Seal-less COMBIFLUX pump FP 314 is suitable for a wide variety of applications, from emptying small containers, 200 litre drums or even 1000 litre IBC’s. The intelligent cooling concept of the motor with double-walled housing ensures optimum air circulation and protects against the penetration of aggressive vapors. The modular design allows the pump to be operated with commutator motor FEM 3070 (available for 110V or 230V power supply) or Li-ion brushless battery motor FBM-B 3100. The quick-release motor allows several pumps to be operated using only one motor, minimising cross-contamination between pump tubes and reducing cost.

JUNIORFLUX F 310 with fixed commutator motor and mechanical seal is suitable for a wide variety of applications, from emptying smaller containers up to 200 litre barrels. This pump should be selected when solid particles are present, or if the liquid has a tendency to crystallise. The mechanical seal eliminates premature bearing wear, as particles cannot enter the inner tube. This design can also be selected if the pump is to be used with several different liquids - the sealed inner tube minimises risk of cross-contamination.

The F 426 is ideal for mixing and/or pumping inhomogeneous media in open or closed drums. Keep media moving that tend to separate, even during pumping. With the outlet closed, e.g. via a hand nozzle or blanking plug, the F 426 can be temporarily operated as pure barrel mixer. By turning the manual lever, the pump can be easily adjusted between "mixing" or "pumping" modes. The pump is easy to dismantle for rapid cleaning and is suitable for many applications - available in stainless steel 316 or polypropylene, with a wide choice of o-ring materials . The stainless steel version is ATEX certified for use in hazardous areas.  1000 or 1200 mm long versions available for use with 200 litre drums, barrels or 1000 litre IBC`s.

Transfer faster, further or higher! Pump F 430 PP 100/50 was designed for tank and IBC applications where higher delivery pressures are required. Instead of standard 38 mm rotor, this pump is equipped with a larger 50 mm impeller enclosed in wider diameter housing. When used with powerful compressed air or 800W electric motors, the pump can deliver high pressures of over 3 bar compared to pumps with semi-axial rotors. This makes it ideal for conveying liquids from IBCs and tanks into higher lying pipe systems or for example, from an IBC in the basement to higher floors. Note this pump cannot be used with closed top 200 litre drums.

Pre-assembled pump kit to pump high flammable media out of 200 l drums or IBCs. Comprising drum pump F 424, outer tube in stainless steel, hose, hand nozzle and compression gland. As drive either the commutator motor F 460 or compressed-air  motor F 416 are available.

F 550 GS is known as a progressive cavity or eccentric worm drive pump, suitable for handling low to medium viscosity media. The pump develops a smooth flow at a constant pressure, offering low shear, pulsation-free liquid transfer. The pump is portable, but can also be used in fixed installations. Very easy to disassemble for maintenance and cleaning, with few moving components.  F 550 GS can handle hard and soft solid particles up to 8 mm in diameter.  Fitted with planetary gearbox, requires FLUX single phase electric or compressed air motor.

The FLUX F 560 GS eccentric worm-drive pump with planetary gear is used to pump thin to medium viscosity liquids up to 30.000 mPas. The pump is designed to meet the specific requirements of the food, cosmetic and pharmaceutical industries, offering FDA / EN1935 or 3A certification where required. These pumps do not shear the product, create little turbulence, deliver constant pressure and ensure smooth, pulsation-free pumping. The pump can be used mobile or stationary, has only a few moving components and can be dismantled easily for cleaning or maintenance.
