Fox Environmental Systems Pty Ltd products

A Fox SCS (Spill Control System) is used in applications where there is a need to ensure that a spillage of `free floating hydrocarbons` (oils or fuels etc.) cannot leave the area. The system provides 24hr protection to sites such as bulk liquid storage facilities, Service Stations and Re-fuelling areas.

A Fox Model BPT600 Gross Pollutant Trap is a baffled pollutant trap with a high flow by-pass. It is designed for use in open areas where trash and other debris cannot be controlled and a potential for minor quantities of hydrocarbons exist. The Fox BPT Gross Pollutant Trap comes standard with a heavy duty Class ‘B’ grate and frame. Heavier classes can be supplied if required at an additional cost. The Gross Pollutant Trap has a controlled flow rate through the silt basket where trash and silt are removed. Runoff then enters the main chamber and exits under the baffle, retaining any hydrocarbons that may be present. If the rain intensity exceeds the treatable flow rate the high flow by-pass allows excess runoff to exit directly via the baffle.

A Fox Model PT600 silt trap is ideal for installation with an indoor wash bay or an open area where silt and debris cannot be controlled. The silt trap unit has a basket with an approximate 50 litres capacity which is easy to remove, ensuring simple, low cost servicing and maintenance. If the intensity of rainfall exceeds the flow capacity of the silt trap basket or bad housekeeping has allowed the basket to become full, water will back up onto the catchment area. For applications where this is not acceptable a high flow basket should be used.

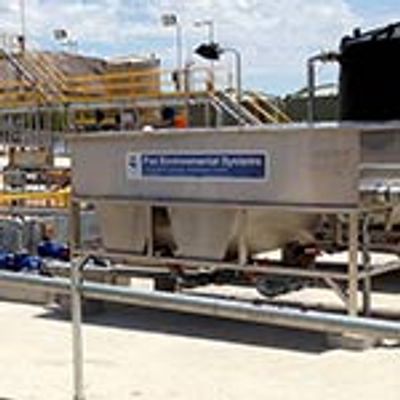

The FD1500 Incline Lamella Tube settler clarifier has a compact, skid-mounted design that performs a continuous or batch flow chemical precipitation process. The FD1500 incorporates two chemical process reaction chambers, a flocculation chamber, and an inclined tube separator for solids separation. The FD1500 has been used in a wide range of applications for Industrial wastewater treatment.

The Fox Model FF600 First flush Diversion system is a `site specific` unit that will capture the `first flush` of rain falling on a site after a pollution generating activity has occurred. This volume will be diverted to a holding tank for processing via a treatment unit such as the Fox Oil/Water separator.

The Fox Oil Water Separator range is designed to provide solutions for companies generating waste water that will require treatment before disposal to the council’s sewer infrastructure, re-use systems or swales.

A Fox Model DD600S washdown diversion system is a demand driven unit. It is designed for use in a wash area where at the completion of a wash activity the area will be hosed clean of pollutants such as grease & oils. It is important that the area be left clean as there is no protection to the stormwater network during a rain event. The unit is particularly suited to bin wash areas and dedicated carwash facilities in high rise developments. It is not designed for use in areas where silt and solids will be generated such as truck wash, equipment washing, or agricultural applications.

When your site has the potential to have stormwater run-off that has been contaminated with water soluble products such as wines, milk or chemicals entering the waterways there is a need for a Fox model CMS600 Constant Monitoring System. The Fox CMS600 system will monitor all site run-off for pollutant concentrations that exceed predetermined levels. If set levels are exceeded the system will divert to a Holding Chamber for containment. Diversion will continue until pre-set levels return and run-off will then be allowed to leave the site.
