Franklin Electric Co., Inc. products

The FPS 3200 Series is a submersible well pump and is designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric’s industry leading submersible 4-inch motor. This reduced diameter pump end makes it ideal for installations where the well is considered encrusted or tight in comparison to a standard 4-inch well. The FPS 3200 Series submersible well pump also offers a hydraulic stage design optimized for greater water and pressure output when installed at deeper well depths.

The Schaefer 3200 Series submersible well pump is designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric’s industry leading submersible 4-inch motor. This reduced diameter pump end makes it ideal for installations where the well is considered encrusted or tight in comparison to a standard 4-inch well. The Schaefer 3200 Series submersible well pump also offers a hydraulic stage design optimized for greater water and pressure output when installed at deeper well depths.

The J-Class 3200 Series submersible well pump is designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric’s industry leading submersible 4-inch motor. This reduced diameter pump end makes it ideal for installations where the well is considered encrusted or tight in comparison to a standard 4-inch well. The J-Class 3200 Series submersible well pump also offers a hydraulic stage design optimized for greater water and pressure output when installed at deeper well depths.

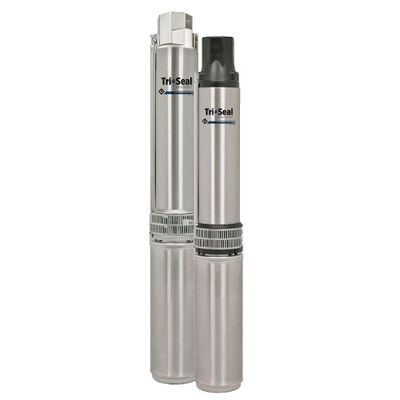

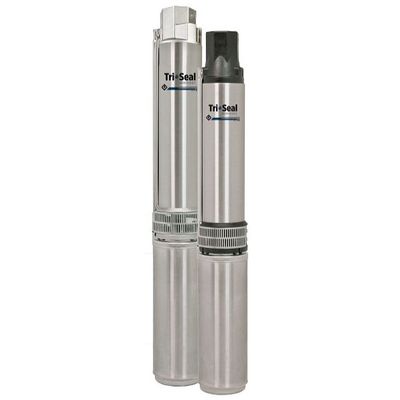

The standard FPS Tri-Seal 4-inch submersible well pump features the new TRI-SEAL floating stage system. This new stage system for the submersible well pump improves efficiency and protects against wear when pumping abrasives (sand).

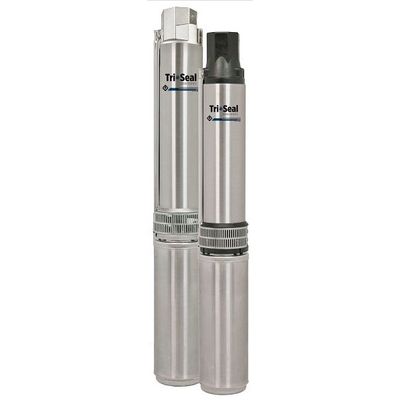

The Schaefer Tri-Seal 4-inch submersible well pump features the Tri-Seal floating stage system. This stage system further for our submersible well pump improves efficiency and protects against wear when pumping abrasives (sand).

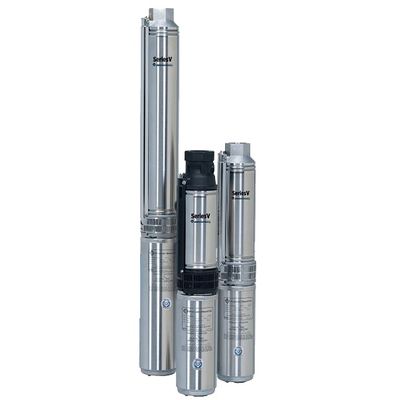

The standard FPS Series V submersible well pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives. Discharge and motor brackets are available in thermoplastic or stainless steel with a removable check valve system. This submersible well pump series is available in 5, 7, 10, 15, 20, and 25 gpm, 1/2 - 5 horsepower.

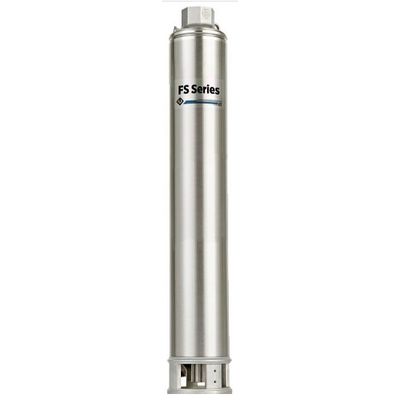

Franklin Electric’s FS Series submersible well pump features floating stage hydraulics that improve efficiency and minimize wear even when pumping abrasives. Intended for potable drinking water applications where a submersible pump provides the best output, the FS Series line is designed to enhance pump performance with minimal internal leakage or restriction. Each FS Series submersible well pump floating stage design also reduces the vertical downthrust applied on the submersible motor and increases the overall performance of the water system. Available in various performance ranges: 5, 8, 10, 12, 16, 22, or 26 GPM with horsepower ranges from 1/2 to 5.

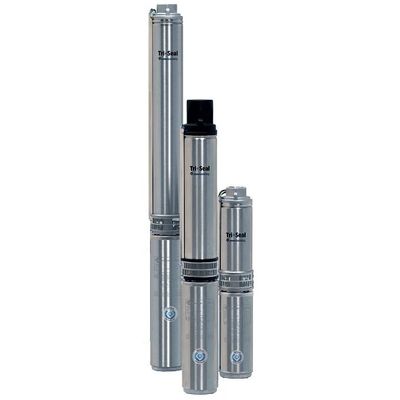

Our 4-inch TRI-SEAL High Capacity submersible well pump is ideal for farm, home, irrigation, industry, municipal, and commercial applications, equipped with the power, performance, and reliability you expect from Franklin Electric. Flow ratings of this high capacity submersible well pump are available in 35, 45, 60, and 90 gpm. Available from 1-1/2 to 10 hp.

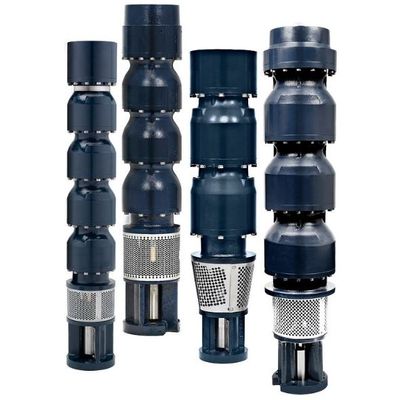

The complete STS Series submersible turbine pump family includes 5-inch, 6-inch, 8-inch, and 9-inch models ideal for irrigation, agricultural, industrial, commercial, or municipal water pumping applications. This submersible turbine pump offers flows from 60 to 1600 gpm and a total dynamic head up to 2300 feet. Each pump features premium materials of construction, including ductile iron motor brackets, ductile iron discharges, cast 304 stainless steel impellers, robust spiral cutlass rubber intermediate bowl bearings, and copper bismuth bronze discharge and motor bracket bearings.
