Freytech Inc. products

The heated iron core located at the center of our planet Earth emits Negative Energy Particles (NEP-) which travel outwards towards our stratosphere and together with the planet’s constant rotation, forms the magnetic force field surrounding Earth. Positive Energy Particles (PEP+) from the high stratosphere in turn, travel down to Earth’s surface.

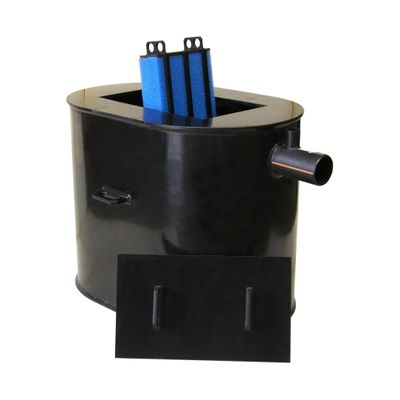

Enhanced Coalescing Oil Water Separators (OWS) to separate free non-emulsified oil, hydrocarbons, diesel, gasoline, fuels, from water and guarantee 5 parts per million(PPM) separation efficiency. Affordable small footprint units for flow rates starting at 25 GPM (1.5 l/s) to over 640GPM(40 l/s). Coalescing media is easy to maintain and can be spray washed and reused for years of trouble-free efficient use. Each model comes with standard manual oil drain port or can be provided with the optional “ADD” oil skimmer. Optional downstream polishing system available to also separate traceemulsified oildown to0.1PPM.

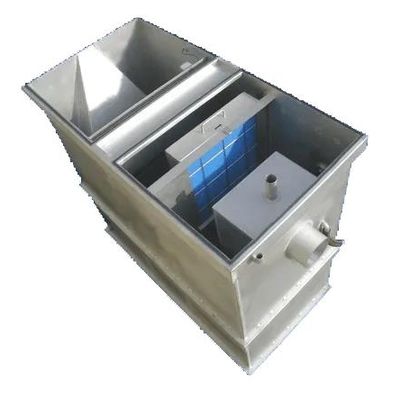

The ecoTop above ground oil water separator is made of high- grade stainless steel. Achieves below 5 parts per million (PPM) separation. Each ecoTop model comes with standard manual oil drain port or can be provided with the optional “ADD” oil skimmer. Optional downstream polishing system available to also separate traceemulsified oildown to0.1 PPM.

The Containerized Oil Water Separator includes a steel cargo container measuring either 20 or 40 feet in length that is provided turnkey to the client. It has all of the sedimentation chambers and the oil water separator equipment built into the container itself. It represents a unique solution for a wide variety of applications where infrastructure may be lacking and also for those cases where the operator may not want to invest in concrete tank construction or other types of resources on property being used / exploited on a short-term basis. Achieves 5PPMseparation of free non-emulsified oil. Optional downstream polishing system available to also separate traceemulsified oildown to0.1PPM. Engineered for use in both hot and cold climates.

The EcoSorp oil water separator is for use to obtain below 1 part per million (PPM) separation efficiencies. It is for use with free or PHYSICALLY EMULSIFIED AND DISSOLVED OIL by adsorption from water.

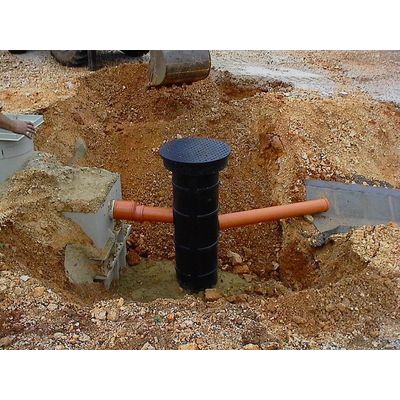

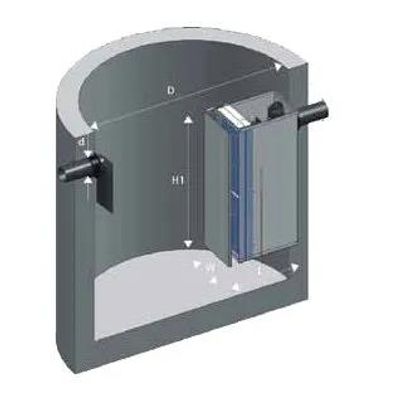

Enhanced Coalescing Oil Water Separators for installation inside new or to RETROFIT existing concrete or steel tanks. This series is extremely versatile in that it can be installed inside existing above or below ground round, square or rectangular tanks. Instead of shipping heavy concrete / steel tanks cross country, simply procure a standard off the shelf tank locally and connect our turnkey separator kit to the outlet pipe inside your tank.

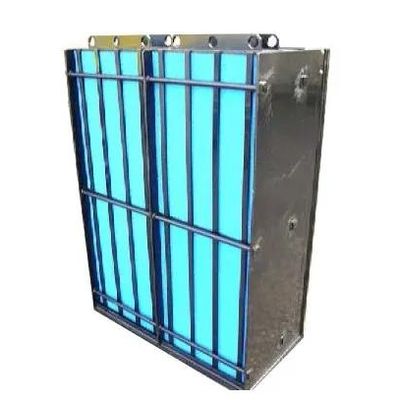

Each XL Separator Panel can effectively treat oily water flow rates ranging from 320GPM(20 l/s) to 640GPM(40 l/s). Achieves 5 Part per Million (PPM) separation of free non-emulsified oil. By far, the most affordable method for large industrial oil-water separation since panels can be installed side by side like windowpanes in a submerged cross-wall in locally procured concrete or steel tanks. This unique solution represents a huge advantage over shipping conventional bulky separators since there is no limit to the flow rate that can be treated and the panels are washable and reusable. Maintenance is conducted from above ground making it safer, cleaner, quicker and of course, more affordable. Each panel requires 1 yard / 1 meter of submerged wall space. Optional polishing system available to also separate traceemulsified oildown to0.1PPM.

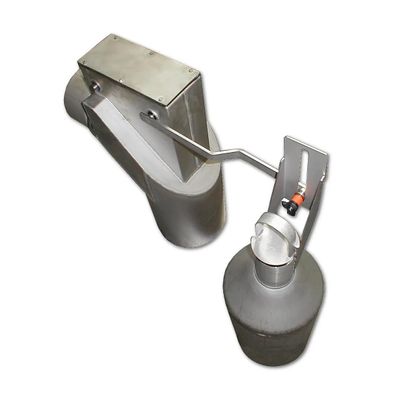

Our patented ADD Oil Skimmer automatically and mechanically collects the oil that has been separated but is still floating on the surface of the water inside the oily water separator (OWS). Once a conventionalOWSis full of oil, it has to be removed. In many cases, operators use manual drain ports or suction to drain or extract the separated oil but this tends to be problematic since such manually drained or suctioned used oil usually contains a high content of unwanted water. Separated oil containing a lot of water is usually picked up by septic service trucks and transported to wastewater treatment plants. The separated oil is not only lost this way but the process is very costly. With the ADD Skimmer, the oil being separated inside the separator is mechanically and automatically collected and drained by gravity to a separate receptacle / compartment positioned inside or next to the separator.
