The diagram above shows typical arrangements for flanged pipe. Please contact us for the full range. All are manufactured to suit and normal lead times are 7-10 working days. Shorter delivery times can be arranged. Standard drilling is NP16 with NP10 and NP25 also available. The maximum length we can manufacture per pipe is 5300mm. Coatings for EN545 are cement lined internal and bitumen external, cement lined seal coated internal, blue epoxy external. Coatings for EN598 are High Alumina cement lined internal, red epoxy external. Other coatings are available on request. To protect the pipe during transportation and handling, a range of flanged pipe end caps are now available from FT Ductile.  They feature a drawstring closure method and are available for all pipe sizes.

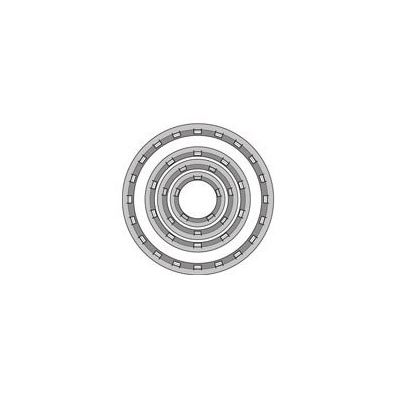

Flange Joint Sets are available in galvanised and rilsan finishes. Flange Joint Sets are also supplied in stainless steel. Anchor gaskets up to 600mm can be supplied. FT Ductile is pleased to announce an exclusive agreement for the supply of 450mm, 500mm and 600mm Tyton-Sit Anchor gaskets. VIP Polymers are manufacturing the anchor gaskets using FT Ductile`s brand new tooling and moulds. When these sizes are added to our existing range, it means that we can manufacture and stock anchor gaskets from 80mm through to 600mm.  Having the sole distribution rights to these products also gives us the flexibility we require to meet specific customer needs in a timely manner.

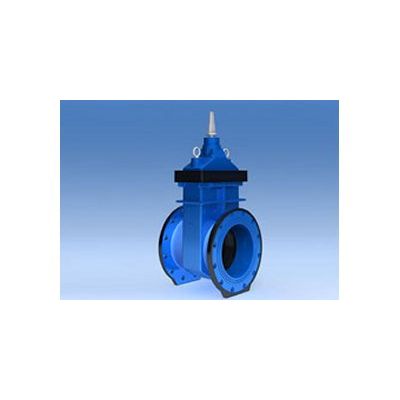

FT Ductile Ltd stocks Resiliant seated and metal faced gate valves for both the water and gas industries. Other types of valve include the following: Air valves water and sewage, Ball check valves, Non return valves, Knife gate, Actuated valves.

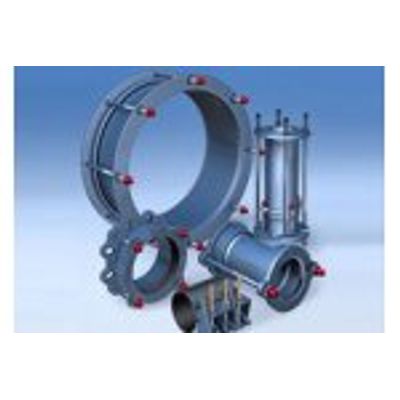

Pipe adapters and couplings are a vital component of any pipe network, effectively connecting pipes safely and securely to ensure that no maintenance issues arise as a result of stress or strain on the network. FT Ductile provides a wide range of pipe adapters and couplings to suit any work involving a network or system of ductile iron water pipes.

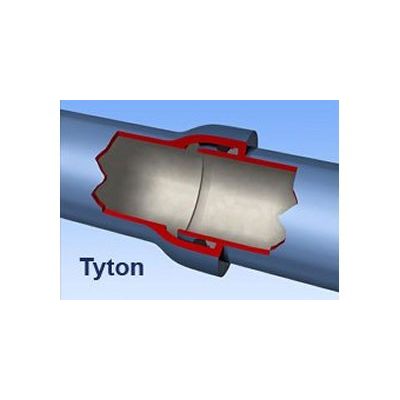

Diameters: 80mm – 1000mm. Linings: Cement Mortar Lining to DWI 31 (4) (a) plus Epoxy seal coat up to 800mm OD. For EN598, High Alumina Cement Pipe. Protection: Zinc – aluminium alloy with blue epoxy coating, P.W. (red epoxy coating for sewage pipes). Uses: Potable Water & Sewage Sludge. Pressure Rating: 40 bar, with standard thrust blocks at the bends. Realistic Usability: Any potable water or sewage sludge pipeline. Joint Type: Tyton Push Fit joint. Fittings: Tyton D I fittings.

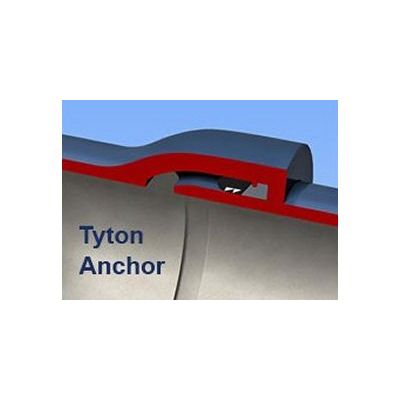

Diameters: 80mm – 600mm. Linings: Cement Mortar Lining to DWI 31 (4) (a). For EN598, High Alumina Cement Pipe. Protection: Zinc – aluminium alloy with blue epoxy coating (red epoxy coating for sewage pipes). Uses: Potable Water & Sewage Sludge. Pressure Rating: Up to 16 bar, 80mm – 600mm depending on diameter. Realistic Usability: Any potable water or sewage sludge pipeline. Joint Type: Tyton Anchor Push Fit. Fittings: Tyton D I fittings.

Diameters: 80mm – 1200mm. Linings: Epoxy Coatings to DWI 31 (4) (a) and EN598 ,plus Epoxy seal coat up to 800mm OD. For EN598, High Alumina Cement Pipe. Uses: Potable Water & Sewage Sludge. Pressure Rating: NP16 available from stock. (NP10 & 25 are available to order). Realistic Usability: High pressure mains. Any potable water or sewage sludge pipeline.
