Fultz Pumps, Inc. products

Fultz Pumps. Inc.`s dedicated pump system provides for one of the most user friendly installations in the industry. We assemble the hose with integrated power lead and the well cap to the exact customer specified length. Simply snap the pump onto the end of the hose and lower the assembly into the well. The well cap features a 1` access port for other instruments and serves as the storage port for the discharge line. To power the pump the operator will only need to plug our briefcase controller to the well cap plug to draw the sample. (Specify schedule of pipe)

Our portable disposable tubing sampling pump system is designed for reliable and efficient purging and sampling of monitoring wells. The system consists of a briefcase controller, our pump head, power lead made to customer specified length (not pictured) and stainless quick connect couplings for easy assembly. The customer only need supply the disposable tubing. This system eliminates the chance of cross contamination from re-using tubing. Man hours spent deconing tubing between wells is greatly reduced. Our disposable tubing system has an economical start-up cost and is easily transported. This system is also an ideal choice for rental pool equipment.

Our dedicated freestanding portable pump system is ideal for short term monitoring projects. This complete pump system includes the pump head, a lightweight freestanding tubular frame, durable composite hose reel, hose with integrated power wire, control panel with flow control feature, and all stainless steel quick connect couplings installed. Reel capacity is 200`.

This electric submersible pump is ideal for providing representative samples due to the low RPM motor and user controlled flow rate. Our positive displacement gear pumps are machined from stainless steel and Teflon* in the interest of purity. Water enters the pump through a 50 mesh screen into a stainless steel cavity.  Two Teflon* rotors sit in the stainless steel cavity and push the water up the hose in a steady stream. Efficient low maintenance pump is ideal for both remote field work and long term monitoring projects. There are no bladders to wear out.  The low RPM motor protects sample integrity - no whipping the water up in stages.  No cooling shroud or cool-down period is needed to prevent the motor from overheating  as long as the pump is immersed in water.  Designed for 2` and larger monitoring wells.

Low clearance PVC waterproof well cap available for 2` and 4` wells.  Well cap includes stainless steel couplings for discharge line.  An extra 7/8` port allows for inserting other instruments into the well.  The discharge hose (included) stores in the well.  Pump / Hose / Well cap snap together via quick connect couplings for simple installation.  Our Portable Power Supply Control Case (see above) plugs into this well cap to operate the pump.

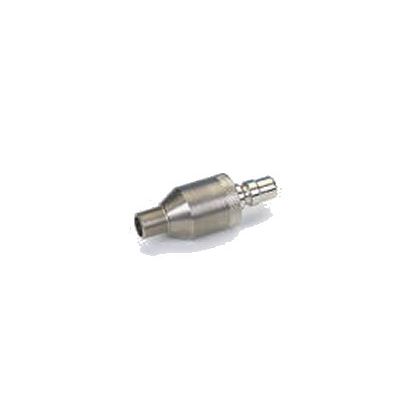

This detachable check valve is useful for projects where the hose cannot be allowed to empty back into the well.  The check valve is inserted between the pump and hose connections..Materials:  Stainless steel and Teflon*
