Fumex AB products

An effective “heavy duty” extraction arm. The PRX is extremely easy to manoeuvre, while at the same time offering great positional stability, even with the arm fully extended. The suction nozzle can be angled through 90° in all directions, and the wall attachment has a 360° swivel function. The smooth interior of the suction tube makes the extractor very easy to clean.

Telescopic point extraction for cramped workplaces. A compact and flexible telescopic point extraction with low pressure drop for cramped workplaces. Diameter is Ø125 mm and the point extraction can be adjusted from 1.3 up to 2.1 meters in length. A gas spring balances the dead weight of the arm, and PTEX is equipped with a hand knob for adjusting the upper friction joint, which makes the adjustment very simple. External support arms provide a low pressure drop and little risk of clogging. The smooth inside of the suction duct makes PTEX very easy to clean. Complete with wall bracket.

Extraction arm for workplaces with requirements for safe handling of explosive gases and dust. The PR EXC/EXD has the same unique features and design as PR. The differences lays in the grounded structure and that PR EXC/EXD meet the requirements of the ATEX Directive 2014/34/EU Category 2 for gases and dust.

Fully stainless steel extractor arm for demanding work environments. Smart and stylish design developed mainly for industries with high hygiene requirements, such as the food and pharmaceutical industry. The design is further based on FUMEX’s basic principle of external support arms, which provides the lowest possible pressure drop and little risk of clogging.

Stainless steel extraction arm for ATEX classified working environments. FUMEX PSR – stylish stainless steel design developed for industries with explosion-proof working environments. All surface finishes are polished stainless steel and the hose is fitted with quick connectors, making the FUMEX PSR industry-leading easy to clean.

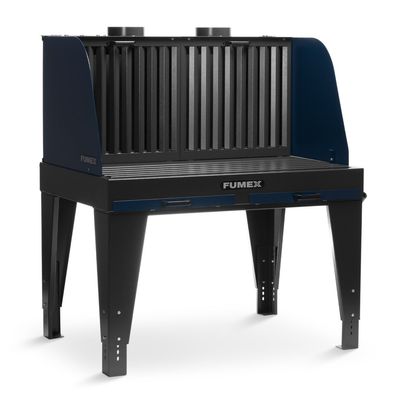

Industrial table with efficient extraction for grinding & welding. FUMEX TW & TWG are industrial welding and grinding tables for handling smoke, dust and particles during welding and grinding work. They remove harmful substances directly from the breathing zone. The tables are connected to a separate fan or existing fan system. The working surface is 1370 × 700 mm and the working height can be adjusted.

Fumex fans are designed to comply with the specific requirements applicable to local extraction systems. For use with air that is contaminated with high concentrations of dust: Welding, Vehicle exhaust gases. Self-cleaning impeller with straight blades: Dust will not adhere to the fan`s blades, Reduced risk of imbalance and damaged bearings, Minimal risk of spark formation. The exhaust direction can be altered by adjusting the mounting bracket or the fan housing.

Hose reels for vehicle workshops. Hose reel ASE / ASEM is a practical solution when working with stationary vehicles where you want to create a free work surface when the extractor is not used. The hose reels are available in four different models:
