Gadson Electronics products

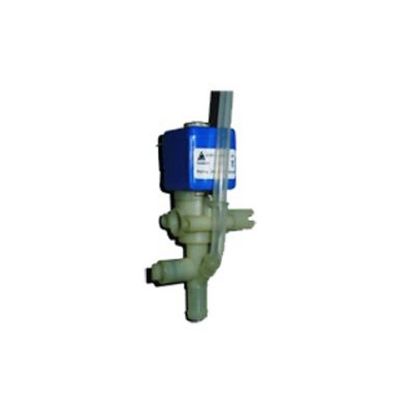

BRIEF SPECIFICATION : Low pressure Direct acting valve for water head up to 1.5 meter. Inlet 012mm & Outlet. 010.5mm barbed. With flow adjustment & air vent, suitable for water temp up to 85°C. APPLICATION : COFFEE MACHINE, SOFT DRINK DISPENSER. VALVE TYPE : 2 WAYS, DIRECT ACTING, LOW PRESSURE DISPENSE VALVE. PRESSURE RANGE : 0 TO 1.5 MTR WATER COLUMN. INLET : 012mm UN-BARBED. OUTLET : Outlet 010.5mm barbed. COIL : 12VDC, 24VDC, 36VDC, 110VAC, 220VAC. FLOW RATE : 1.2 L/M for 200 mm Water Head. OTHER FEATURES : Ideal for coffee machine, Can be directly mounted on the tank with silicone bush, Ideal for hot water applications,long life rubber and body material.Air vent and flow control knob with complete isolated water chamber.lnsect filter on air vent.

BRIEF SPECIFICATION: : l/P M10 X 1 .5MM, BRASS / SS BODY, DIRECT ACTING HIGH PRESSURE VALVE UP TO 10 BAR. APPLICATION: : COFFEE VENDING MACHINE, FUEL INJECTORS, FURNACES, steam applications. VALVE TYPE: : DIRECT ACTING HIGH PRESSURE. PRESSURE RANGE: : 0 TO 10 Kg/Cm2. INLET: : M10X1.5MM. OUTLET: : M10X1.5MM. COIL: : 12VDC, 24VDC, 36VDC, 110VAC, 220VAC FLOW RATE: : UP TO 5 L/M at 1 Kg/Cm2. OTHER FEATURES: : Suitable for hostile industrial applications, brass /ss body, Ideal for coffee vending machines, fuel injectors, steam applications.

BRIEF SPECIFICATION: REED SWITCH TYPE, TOP MONTING FLOAT. APPLICATION: VENDING MACHINE , STORAGE WATER PURIFIER. MECHANICALS: MONTING THROUGH 1/2(12.5 MM) ORIFICE . ELECTRICALS: 200 mA reed switch with molex connector termination. OTHER FEATURES: RELIABLE FLOAT FOR LEVEL CONTROL WITH FINE HYSTERYSIS.

BRIEF SPECIFICATION: MICRO SWITCH TYPE TOP MOUNTING FLOAT. APPLICATION: STORAGE WATER PURIFIER. MECHANICALS: MONTING THROUGH 1/2(12.5 MM) ORIFICE . ELECTRICALS: 5 amp microswitch with NO/ NC option , 6.35 mm male tab termination. OTHER FEATURES: RUGGED FLOAT WITH 5 AMP MICROSWITCH WITH GOOD AESTHETICS AND COMPACT SIZE, LIFE 50K CYCLES MINIMUM.

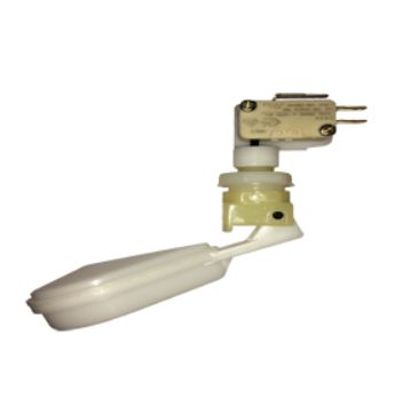

BRIEF SPECIFICATION: MICRO SWITCH TYPE SIDE/ WALL MOUNTING FLOAT. APPLICATION: STORAGE WATER PURIFIER. MECHANICALS: MONTING THROUGH 1/2(12.5 MM) ORIFICE . ELECTRICALS: 5 amp microswitch with NO/ NC option , 6.35 mm male tab termination. OTHER FEATURES: RUGGED FLOAT WITH 5 AMP MICROSWITCH WITH GOOD AESTHETICS AND COMPACT SIZE, LIFE 50K CYCLES MINIMUM.

BRIEF SPECIFICATION: MICRO SWITCH TYPE TOP MOUNTING FLOAT. APPLICATION: STORAGE WATER PURIFIER. MECHANICALS: MONTING THROUGH 1/2(12.5 MM) ORIFICE . ELECTRICALS: 5 amp microswitch with NO/ NC option , 6.35 mm male tab termination. OTHER FEATURES: RUGGED FLOAT WITH 5 AMP MICROSWITCH WITH GOOD AESTHETICS AND COMPACT SIZE, LIFE 50K CYCLES MINIMUM.

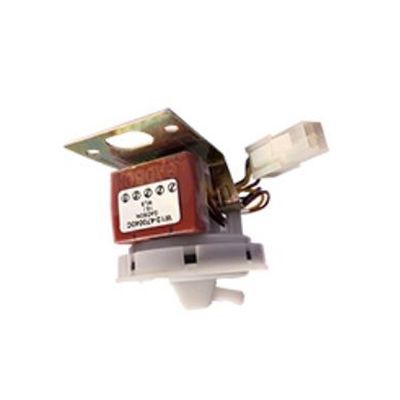

BRIEF SPECIFICATION: Replacement component for pressure sensor of Onida washing machine. APPLICATION: Onida washing machine. MECHANICALS:  Mounting bracket. ELECTRICALS:  4 terminal male molex connector with harness. OTHER FEATURES: built in oscillator ckt. Direct frequency out as per water level.

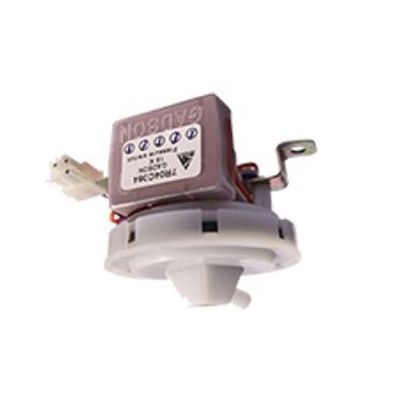

BRIEF SPECIFICATION: Replacement component for pressure sensor of Godrej washing machine. APPLICATION: Godrej washing machine. MECHANICALS:  Mounting bracket. ELECTRICALS:  4 terminal male molex connector with harness. OTHER FEATURES: built in oscillator ckt. Direct frequency out as per water level.
