Galbreath LLC products

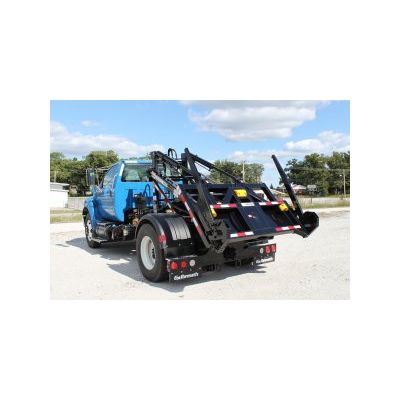

The Galbreath bail hook hoist is designed for Dempster-style containers and prevents haulers from incurring the expense of switching to outside rail cable hoists. The unique design of the bail hook hoist allows the driver to remain inside the cab to hook a container. Since the Galbreath bail hook hoist does not use a cable system, it minimizes maintenance costs.

Galbreath double pivot hook hoists are designed for higher hauling capacities than single pivot hook models. They allow the container to be locked during the dump cycle. Hook heights of either 54" or 61-3/4".

Galbreath single pivot hook hoists features a universal fit for nearly any chassis. The simple design of the single pivot hook hoist means fewer moving parts and less maintenance. Hook heights range from 35 1/2" up to 61 3/4”.

The Galbreath bail hook hoist is designed for Dempster-style containers and prevents haulers from incurring the expense of switching to outside rail cable hoists.  The unique design of the bail hook hoist allows the driver to remain inside the cab to hook a container.  Since the Galbreath bail hook hoist does not use a cable system, it minimizes maintenance costs.

The Galbreath Loaded Container Handler (SLCH) was designed as a safer way to transport front- and rear-load containers. Containers are designed to sit level during transport to minimize trash spillage. The container and the center of gravity sit in front of the rear axle to maximize weight distribution, allowing safe loaded container transport at highway speeds. The Galbreath SLCH can accommodate up to 8,000 lbs. and front load containers up to 10 yards or rear load containers up to 6 yards in size. Legal overhang at the rear of the vehicle when hauling loaded containers prevents the need for an ICC bumper.

The CH8000 Container Handler is used for moving containers around a yard. Available with or without a rotator for emptying containers. ls the tarp over the load. The tarp is then tied down to the cleat provided.

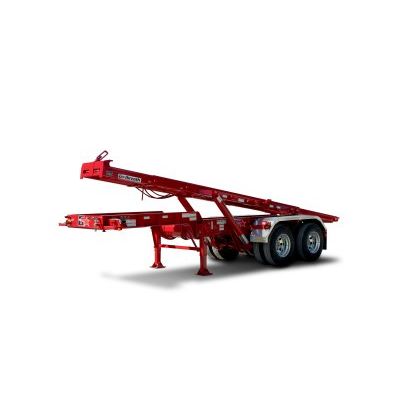

Shorter overall length for maneuverability. Outside rail (OR) or extendable tail (EX) models are standard. Lower trailer height to accommodate tall containers. Hoist capacity of 60,000 lbs. GVWR Outer bridge 77,500 lbs. Trailer main frame 16` W. F. Milled I-Beam A36 32 LB. 50,000 lb. single point suspension. 25,000 lb. axles. 10-hole hub piloted steel rims. 11R/22.5 tires. ABS braking system. Trailer brake at street side front fender air operated
