Galyean Equipment Company products

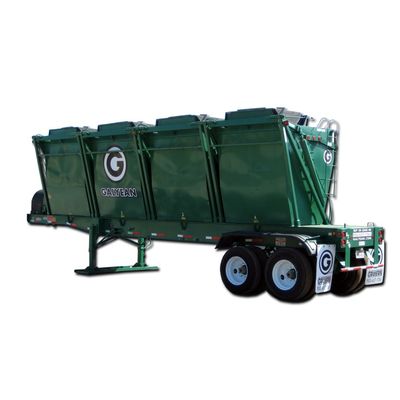

Galyean High Reach Trailers are designed for maximum dumping height, which enables these units to service the largest spreaders on the market today. The High Reach 200 features one hole opening tops with hydraulic controlled pouring lids. This means no more getting on top of the trailers to open a hatch cover to load, or climbing on top of the trailer in the field to open the pouring lid to unload. Not only does this new feature reduce your liability and save labor but it increases hopper rife because pouring ids gently glide open and shut reducing stress and hopper damage. Increasing the door size and eliminating the hatch cover opening prevents any chance of fertilizer spillage that was the result of operator error on the older side dump models. Galyean`s new innovative design of the High Reach 200 makes all other side dump models obsolete.

These proven, dependable, long lasting haulers have surpassed our standard "R" and "O" models. High Volume Trailers feature 220 cu. ft. capacity hoppers with lids that pour at 11" to 9` 6", the total road height is 12" 3". Standard models feature 200 cu. ft. capacity hoppers, lids pour at 9" 2" to 8", and the total road height is 10" 11`.

For lighter loads Galyean offers an Ash Hauler Trailer with maximum cargo capacity. They can haul 280 cu. ft. per hopper, which amounts to 40+ total cubic yards of material. The Ash Hauler features a 40" frame length for maximum GVW, with the dame road and dumping height as the High Dump Trailer. Tops can be left open for easy loading.

5000 Gallon +/-2% 2 Or 3 Compartment Acid Transport Trailer. Built To DOT412 Specs. Air/Spring Actuated Butterfly Valves, DOT Approved Roll Over Protection, Fire Extinguisher. Static Discharge Reel, DOT Approved Pressure Vent, Placards, Third Party DOT Inspection.

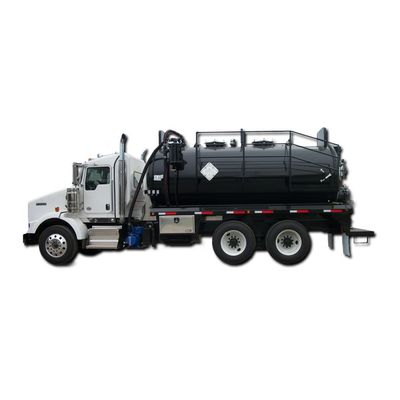

Vacuum – Chemical – Acid Models Available. 30BBL (1,260 gal) TO 110BBL (4,620 gal) configurations.  Mild Steel or Stainless Steel Construction.  Full Length Hosetrays.  Full Length DOT Approved Catwalk and Safety Handrail with Rear Entry. DOT Approved Rear Bumper with Tow Hook. Plumbing Customized To Your Application.  1-1/2” Hard Sightglass at Rear (Non Code Models).  (1) 18” x 18” x 36” Aluminum Toolbox. DuPont Single Color Exterior Paint With Protective Clear Coat. Carboline 309 Interior Liner (Vacuum Models).  DOT Approved Sealed LED Lighting With 4 Work Lights.

2 Compartment, DOT-412 MS. Capacity: 4500 Gallons +/- 2%.  Layout: 2250.2250 Gallons.  Catwalk: 12" Wide x 12` Long Galvanized Walkway with 1" Pipe Handrails Providing Access to all Manways, Mounted at 9 o`clock on Driver`s Side, Side Entry.  Shell: 1/4" SA-36 Code Steel Shell x 38" Length.

130BBL (5460 Gallons) +/-2% Capacity. 2 Compartments 40BBL/90BBL. A-36 Steel Construction. Galyean Heavy Duty Airride Suspension. 25,000 lb Axles with Spring Brakes and Outboard Drums. 11R24.5 Tires Mounted on Steel Wheels. 50K Jost 2 Speed Heavy Duty Landing Gear. DOT Approved Bumper with Tow Hook. Full Length Hosetrays. Full Length Galvanized Catwalk with Safety Handrail and Rear Entry. (1) 18” x 18” x 36” Aluminum Toolbox. Custom Plumbing for Your Application. 3” Air Actuated Vents. DOT Approved Fully Sealed LED Lights. DuPont Single Color Exterior Paint with Protective Clear Coat. Carboline 309 Interior Liner. 1-1/2” Hard Sightglass.

130BBL-140BBL-150BBL-160BBL-180BBl. 5460gal-5880gal-6300gal-6720gal-7560gal +/- 2%. Built To Code or Non Code Specs. SA36 Carbon Steel Or 316L Stainless Steel Construction. Full Length DOT Approved Catwalk and Safety Handrail with Rear Entry. Rear Bumper with Tow Hook. (1) Primary Scrubber (1) Secondary Scrubber (3) 20” Gasketed Manways with Greaseable Wingnuts. Galyean Airrude Suspension with Manual Dump Valve. 25,000lb Axles with Spring Brakes and Outboard Drums. 11R24.5 Tires Mounted on Steel Wheels. 50K Jost 2 Speed Heavy Duty Landing Gear. Adjustable Bolt on 5/16” High Tensile Strength King Pin Plate. (1) 18 x 18 x 36 Double Barn Door Aluminum Diamond Plate Toolbox Mounted Drivers Side. Near White Steel Grit Blast inside and Out. Single Exterior Color with DuPont Protective Clear Coat. Carboline 309 Interior Liner. Dot Approved Sealed LED Lighting with 4 Work Lights.

There is not a job too big or too small at Galyean. Bulk Cement Trailers fully rigged out with all the motors, pumps, as well as hydraulics. Massive 8 Axle 225 BBL (9,450 gal) Vacuum Trailers. Multiple configurations of custom Drop Deck Frame Rails. Custom Mud Mixing Tanks just to name a few of Galyeans special projects. The fact of the matter is – If you can think it we can build it.

DOT Approved 2000 -5000 Gallon Stainless Steel Transports. 25PSI Design Pressure. Manufactured 316L Stainless Steel Shell Material. ASME Code F&D SA240-316L Stainless Steel Heads. F&D SA240-316L Stainless Steel Baffles. Betts 8310-LC 20” Full Opening Manways. Betts Stainless Steel Sump. Betts Stainless Steel Chemical Drain Valves.
