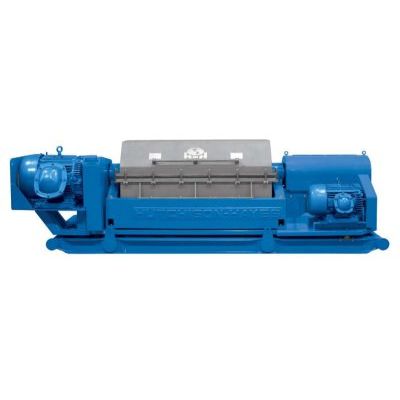

The MegaBowl comes with a standard “VFD Ready” drive system which allows for full variability on both the main and back drive motors through VFD’s. The bowl is driven by a 150 HP inverter duty main drive motor and the conveyor is driven through a planetary gear box (49:1) with a 40 HP inverter duty back drive motor. The MegaBowl is engineered and manufactured within the same rigid standards as the HHS Model 5500 with many of the same features, plus more than twice the processing capacity. All major rotating assembly components are manufactured from centrifugal castings or forgings of either Duplex 2205 SS, or 316 SS. As with the 5500, the MegaBowl™ case is 316 SS. All major wear areas are protected with tungsten carbide and/or Stellite. This unit is manufactured to operate in a Class 1, Division 1 environment.

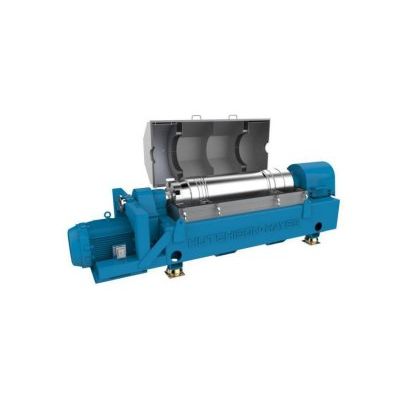

The Horizontal Decanting centrifuge (Decanter) has a vast field of applications in various Processes where a liquid and a solid phase have to be continuously separated.

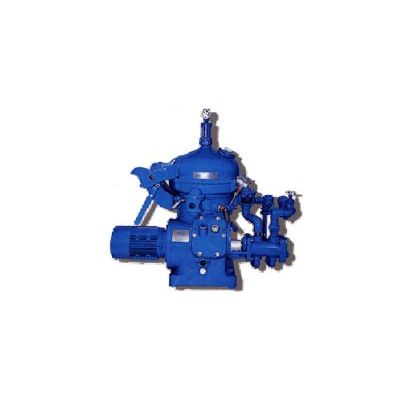

Separators sometimes called Vertical Centrifuges or Disc stack centrifuges are manufactured in two basic versions:

The HH 1448 Standard is a configuration of a drive system for a Decanting centrifuge. This configuration is the most basic of many available configurations. The Centrifuge bowl is driven by a main drive motor and the conveyor is driven through a planetary gear box with a simple torque arm setup. The torque arm is torque limiting device to protect both gearbox and conveyor against mechanical overload. The conveyor speed is simply the Bowl RPM reduced by the gearbox ratio.

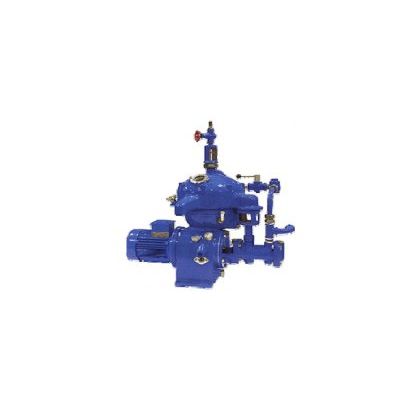

The HH 219 centrifuge is a Mineral oil cleaning system with a low installation cost. It is a small and compact system with well proven components.

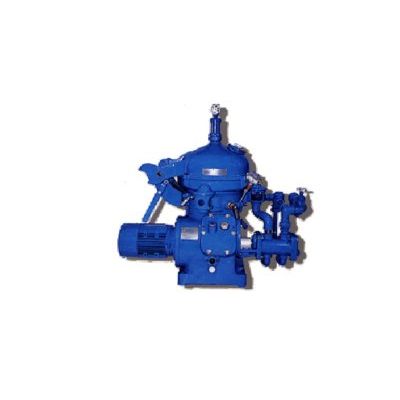

The HH 219 centrifuge is a Biodiesel cleaning system with a low installation cost. It is a small and compact system with well proven components.

Our largest tank cleaner, the Gamajet IV “GT” is designed to clean larger sized tanks with diameters of over 15` (4.57 m). Developed and upgraded from the proven Gamajet III, the IV “GT” is a hydraulically driven rotary tank cleaning machine that revolves 360° in both horizontal and vertical planes. Synchronized solid jets provide a tight and thorough scouring pattern covering all interior tank surfaces in one complete cycle. The IV “GT” is available in stainless steel or silicon bronze with a choice of oil-lubricated or flo-thru (wash fluid lubricated) gearboxes. Gear trains are designed to maximize wear life which offers improved reliability and reduced downtime. A choice of twelve nozzle sizes, various hydraulic turbines and stators along with two gear systems, offer a wide operating range of flow rates, nozzle rotation speeds, and wash cycles.

The Lightest, Most Powerful, Large Tank CleanerThe GAMAJET EZ-8, also known as the GAMAJET VIII, provides the same flow as traditional, larger tank cleaners, but this new unit is lighter, shorter, and narrower for much easier entry and maneuverability and offers unparalleled ease of handling in a wide variety of tank cleaning applications.Smaller in diameter than any other fluid driven unit with similar flow characteristics the GAMAJET EZ-8 does not require any power assists.It fits through small openings while maintaining the flow required to clean larger vessels and its light weight and smaller size makes it easy to move and handle.The versatility of this machine when it comes to pressure and flow make it ideal for most large tank cleaning applications.

There is a Way to Clean Your Underground Storage Tanks The Gamajet X is the first, and only, automated tank cleaning machine capable of getting 100% of residual fuel, dirt and sludge out of underground storage tanks.Designed to fit through standard UST inlets, the new lightweight unit is fluid driven and requires no external power supply to clean any size storage tank. Its powerful 360 degree rotary jets blast away contaminants and break up dirt and sludge that can be conveniently vacuumed away. The is the only machine small enough to fit into USTs, yet with enough power to clean 100% of the interior. It easily puts the contaminant-laden sludge into solution which allows for complete liquid extraction and thorough tank cleaning.Using a Gamajet spinner you can quickly clean the tanks and have them ready to accommodate the next load without the risk of contamination. Responding to the needs of the petroleum and contract cleaning industries.

A Fast and Easy Way to Clean Small TanksThe new Gamajet V’s compact size readily passes through a 3 inch opening, making it ideal for cleaning small tanks, vats and vessels.Gamajet V offers the cleaning power and flexibility you need. It surpasses spray balls, water blasting, boil outs, manual hose, and scraping and chipping.The Gamajet Vis a fluid-driven, rotary tank cleaning machine designed to fit through small passageways and to clean smaller vessels (up to 15’ (4.57 m) in diameter by 15’ (4.57 m) high). It revolves 360° in both the horizontal and vertical planes, with synchronized solid jets providing a tight and thorough scouring pattern on the inside tank surfaces in just one complete cycle. Its horizontal and vertical rotation patterns are interlocked and controlled by gears, not by any reaction forces. A choice of nozzle sizes, turbines and gear speeds offers a range of flow rates, pressures and wash cycle times.
