Gamic GmbH products

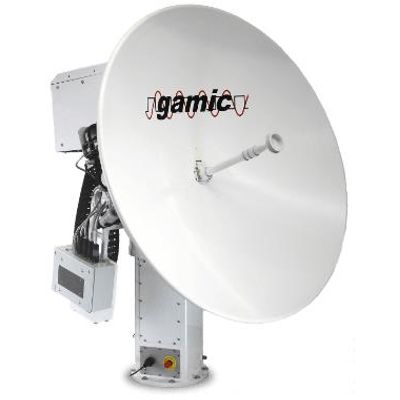

The GMWR-25-SP/DP is a cost-effective and flexible X-Band Doppler weather radar with magnetron transmitter. It is designed for operation with a range of 100 km up to a maximum of 150?km and uses Doppler technology for accurate radial wind velocity measurements. The dual polarization option enables attenuation correction, advanced product generation, and hydrometeor classification.

The GMWR-400/1000-SST is a cost-effective, flexible, and entirely solid-state X-Band Doppler weather radar. It is designed for operation with a range of 100?km up to a maximum of 150 km and uses Doppler technology for accurate radial wind velocity measurements. Its dual polarization feature offers attenuation correction, advanced product generation, hydrometeor classification, and detection of non-meteorological objects.

The GMWR-25-WS is a cost-effective X-band Doppler weather surveillance radar for reliable observation of critical weather around airports and other important infrastructures. It is designed for operation ranges up to 32 NM (60 km) and has very high update rates of less than 12 seconds per 360° scan. One major benefit is its seamless integration into ATC infrastructure.

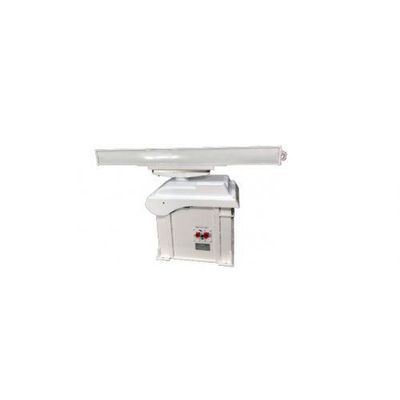

The GWSR is a wave sensing radar developed by GAMIC for FutureWaves, a product by General Dynamics APS, which provides detailed sea state measurements and forecasting of vessel motion response to waves.

ENIGMA V is the latest generation of the popular and advanced weather radar signal processor for single and dual polarization developed by GAMIC. It consists of a host (ENIGMA PC) and a completely redesigned IFD (Intermediate Frequency Digitizer). The IFD converts your radar output to a stable and high quality digital signal while the host provides clean output data by applying powerful algorithms and corrections.

GAMIC’s weather signal extractor GWSP is designed to augment ASR/ATC radars with a comprehensive weather data output. It uses the existing surveillance radar data to detect and report severe weather situations in the surrounding area. The GWSP has been installed over 50 times and is operating successfully for more than 10 years by German, Swiss, and Canadian Air Forces, and at Schiphol airport (Amsterdam, NL).
