Gamma High Voltage Research products

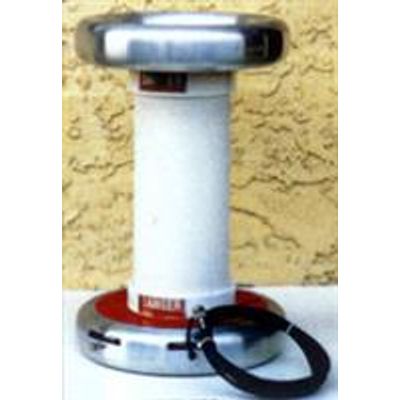

GAMMA MODEL HVD-100 provides laboratory or production facilities with an excellent method Tor measuring high \oltagc with an uccurao iMttW than 0.2%.  The GAMMA  divider b designed for use with standard digital voltmeters or differential voltmeters.   The 2000 megohm input impedance is ideal Tor measuring high voltage, low current sources which would be over loaded by traditional impedance dividers. A 10" toroidal high voltage bushing eliminates leakage due to corona, ullowing voltage divider ratio integrity to be maintained up to 100KV.

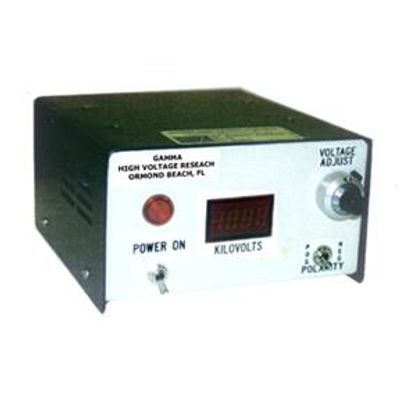

The Gamma `ES` series provides a portable High Voltage Source of power for scientific and industrial applications, with power levels to 20 watts and voltage levels to 100KV. The 100KV supply in this series weighs approximately 11-lbs. making it ideally suited for portable or laboratory applications.

Fully Adjustable from 0 to Maximum Output Voltage. Reversible Polarity. Digital Voltage Meter. Low Ripple. Low Noise. Short Circuit, Over-Load and Arc Protected. Compact Modular Design.

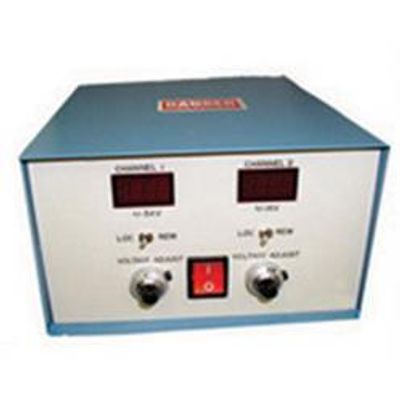

The GAMMA BP scries of Bi-Polar Power Supplies is available in up to Eight Channels of output. Channel Outputs of the same or different ratings can be combined in one enclosure. Each Channel is equipped with a voltage monitor and output connector and is independently controlled and regulated. Single Digital Meter with selector switch provided.
