Gammaspectacular (Bee Research Pty Ltd) products

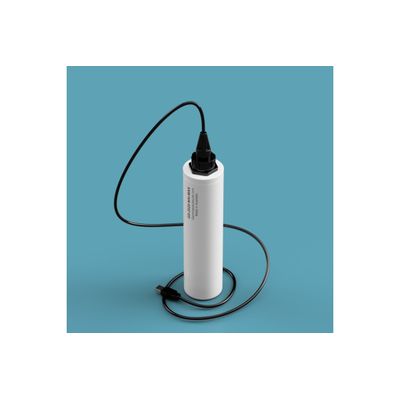

High Speed spectrometer - Up to 100,000 cps. The GS-2020-NAI-MAX is a 2x2" NaI(Tl) detector with integral high speed spectrometer, this detector can count up to 100,000 cps with excellent resolution. It connects directly to a PC and works with free open source software called Becqmoni.

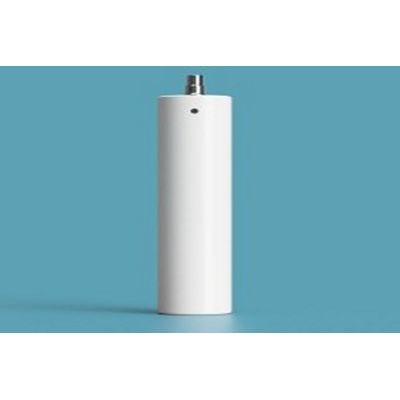

NaI(Tl) Gamma Scintillation Detector 1.5" x 1.5" Crystal, This detector is a great general purpose detector, it has an encapsulated  38 x 38 mm Sodium Iodide crystal, coupled to a PMT with integral voltage divider. The whole package is housed in a spun aluminium housing and finished in pearl white powder coating. The detector is supplied with an SHV male connector, compatible with the GS-USB-PRO, but can be supplied with a HV-BNC if required. We recommend this detector for use with the GS-USB-PRO spectrometer. This detector is built by Bee Research from quality new components.

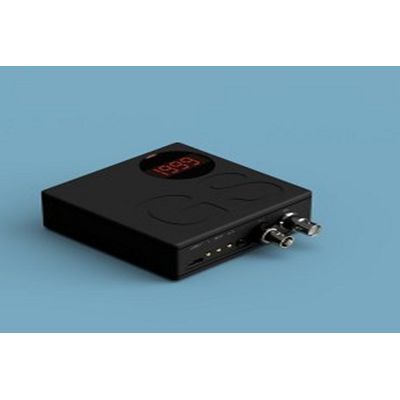

The new GS-PRO-V5 is the latest Gammaspectacular, it`s improved design draws on all the experience and feedback received from over 2000 customers. The GS-PRO-5 comes in a high quality machined aluminium enclosure and is significantly smaller measuring only 100 x 100 x 35 mm.  There have been several improvements to the circuit, but the overall functionality remains the same. The GS-PRO-V5 runs on free software and simply connects it to any PC or Mac* USB port and works with any brand of PMT based scintillation detector for spectrometry or any geiger counter for simple counting experiments.

This is a fully functional one of a kind prototype of the GS-NEUTRON-III which we are selling at a discount. The only difference is in the design of the housing and moderator. The GS-NEUTRON-III has a high efficiency He3 tube with built in high voltage bias and preamplifier with bluetooth and logic signal output. Operation is super simple, a single on/off switch activates the circuit, which is powered by a single 9 volt battery, the ultra low current circuit can power it for several weeks. The bluetooth circuit is discoverable by the Atom Radiometer app for iPhone and Android which serves as the user interface. The detector also provides a single BNC output with a logic pulse  which can be used for data logging.

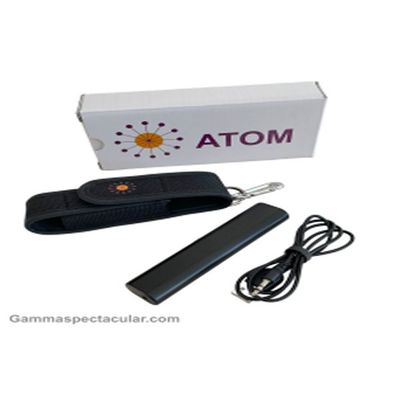

Atom Fast is a radiation detector and dosimeter with 8*8*50 mm CsI crystal; Atom Fast is made for radiation monitoring of land, buildings, vehicles, construction materials, etc. You can use Atom-Fast for gamma and X-ray measurements in physical experiments and educational purposes. Atom Fast contains a sensitive radiation detector (CsI scintillation crystal and silicon photomultiplier) and all electronics required to power and get readings from the sensor, Bluetooth 4.0 wireless interface and lithium-ion battery.  Smartphones or tablet PC’s are used to process information gathered from the scintillation detector and to show readings on screen. Applications to run Atom Fast can be downloaded for free from the Apple AppStore (for iOS) or Google Play (for Android).
