Gardner Denver Nash, LLC products

The NASH Vectra SX liquid ring vacuum pump and compressor series delivers optimum performance with unprecedented production efficiencies. Available in 5 models, the capacities of the Vectra SX liquid ring vacuum pumps and compressors range from 25 to 260 m3/h (15 to 150 ACFM) , and have been designed to meet the widespread needs of the process industry.

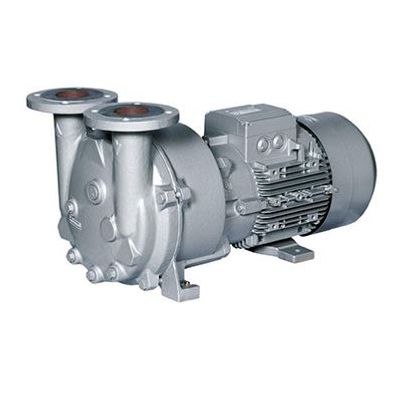

NASH 2BV series mono-block pumps are engineered to provide suction volumes of up to 600 m3/h with pressures of up to 33 mbar abs. With sound pressures of less than 75 dBA, the 2BV series provides quiet, vibration free operation, ensuring compliance with the strictest noise standards; all in a compact, space saving package.

The NASH 2BM Mag Drive liquid ring vacuum pump and compressor series provides reliable, leak free performance for applications requiring the highest levels of safety. Different than the 2BM1, the 2BM5 model has only 1 inlet and discharge port. With a hermetically sealed pump body and capacity from 75 to 440 m3/h (45 to 260 ACFM) the 2BM5 liquid ring pump/compressor is an ideal match for process applications in the chemical, pharmaceutical, petrochemical, and the food industries.

The NASH SC liquid ring vacuum pump and compressor series is a reliable and flexible alternative to the popular NASH CL series. Designed as an upgrade to the existing CL models, the SC series delivers proven performance with flexible installation options and reduced maintenance requirements. Available in 9 models, the capacities of the SC pumps range from about 120 to 2,000 m³/h (70 to 1,150 ACFM). SC pumps and compressors are typically found in food and general industrial applications.

The NASH 2BE1 liquid ring vacuum pump and compressor series covers a broad range of suction volume from 100 to 22,500 m³/h (60 to 13,000 ACFM), vacuum range of 33 mbar abs. (to 1 inHgA) and pressure of 3.5 bar abs.(50 psia). Based on the proven reliable flat sided liquid ring vacuum pump design the 2BE1 is available in 23 models, has a large differential pressure capability, and is ATEX Certified. For these reasons, the 2BE1 is one of the most popular liquid ring pumps worldwide and can be found in almost all industrial vacuum applications including the chemical, pulp & paper, and power generation industries.

The NASH Vectra liquid ring vacuum pump and compressor series deliver optimum performance with unprecedented production efficiencies. The Vectra GL models, with capacity ranging from 195 to 1,400 m³/h (115 to 830 ACFM), are engineered to deliver outstanding reliability and performance for general industrial applications.

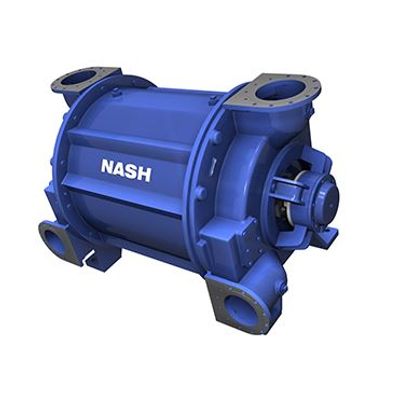

The NASH 905 liquid ring vacuum pump series has been optimized to deliver superior reliability and performance over the existing 904 and CL models. With capacities ranging from 4,800 to 22,000 m³/h (2,800 to 13,000 ACFM) the 905 is ideal for applications such as chemical processing, paper, mining, geothermal power generation or anywhere reliable compression of corrosive gases is needed.

The NASH CL liquid ring vacuum pump & compressor series delivers classic Nash performance with a broad range of suction volume, vacuum, and pressure. This single stage liquid ring vacuum pump & compressor series is available in 12 different models, with capacity ranging from 240 to 16,500 m³/h (140 to 14,800 ACFM) and can be found in many applications including paper machine dewatering, autoclaves, carburetor testing, chucking, condenser air removal, container filling, cooking, deaerating, drying, evisceration, exhausting, molding, pickup and conveying, priming, slot extraction, and solvent recovery.

The NASH P2620 liquid ring vacuum pump model allows efficient operation over the entire vacuum range without the need to change the pump's internals. With the largest capacity in our portfolio, ranging from 23,800 to 39,000 m³/h (14,000 to 21,800 ACFM), the P2620 is designed to operate in demanding environments such as paper, power, mining, and chemical process industries.

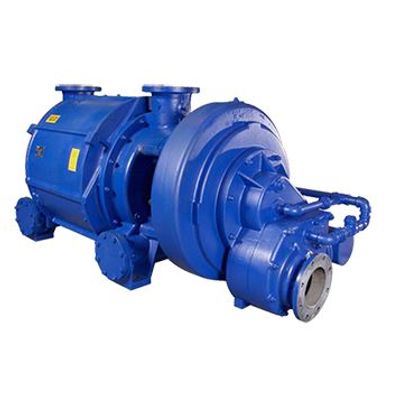

The popular NASH AT two stage vacuum pump series has been providing reliable high vacuum performance in the power industry for over 25 years. With capacity ranging from 680 to 4,750 m³/h (400 to 2,800 ACFM) the AT`s four vacuum pump models are an ideal choice when you need a rugged and long-lasting machine to handle your saturated process gases.
