Gather Industrie GmbH products

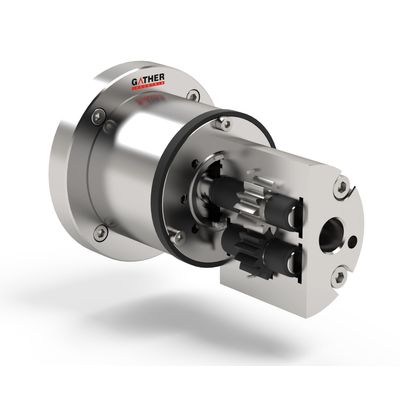

The magnetically coupled GATHER Gear pump is  a hermetically sealed dosing and process pump. In numerous industrial sectors (chemicals, pharmaceuticals, food, medicine, cosmetics, etc.) it is mainly used for the pulsation-free delivery or metering of non-lubricating liquids (e.g. water, salt solutions, acids, alkalis, solvents, etc.).

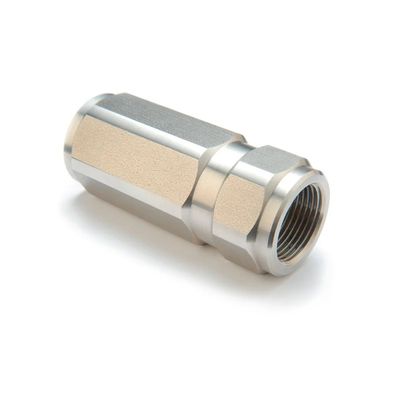

GATHER Non-return valves can be used for liquids, gases and vapours. The proven accessories for our magnetically coupled pumps ensure constant flow resistance. They are used under vacuum in various pump applications. The non-return valve is available in stainless steel or Hastelloy.

The GATHER filter with drain plug is a universal filter designed even for extreme process conditions. Operating temperatures of up to 350°C at system pressures of up to 500 bar are possible. The stainless steel and Hastelloy^® versions qualify this filter for use with aggressive media. Through using “pleated” filter elements, a compact design with a large filter surface is created, which causes only low pressure losses. The filter is optimally suited for use as a pre-filter in suction lines.

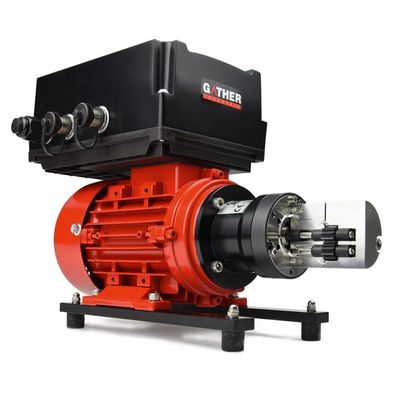

As already explained under „Magnetically coupled gear pump“, the GATHER gear pump is a hermetically sealed pump.  This pump was designed multifunctionally in its materials in order to be able to pump many different liquids used in the laboratory. In addition, a drive with integrated speed control is used which is a „plug and play“ solution ready for conncetion and available from stock.

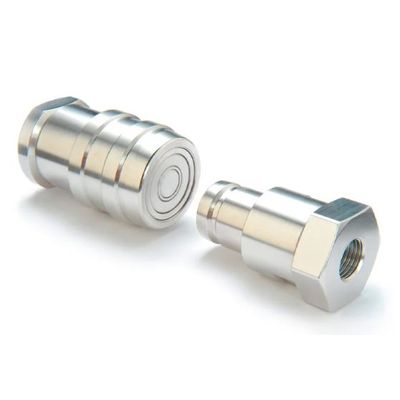

GATHER’s flat-face quick disconnect couplings of the DBG series shut off on both sides and can be operated with one hand. They are designed in such a way that no liquids escape when disconnected and no air pockets enter the pipe system when connected. The design of their internal structure allows inline cleaning CIP (Cleaning in Place).

Principle: First seal, then release the flow! During the coupling process, the ring valve of the socket and the flat valve of the nipple push against each other. Before the valves release the flow, the interior is shut-off against the environment. The dead space-free design prevents air inclusions when connecting and drip losses when disconnecting.

GATHER’s flat-face quick disconnect couplings of the DBG series shut off on both sides and can be operated with one hand. They are designed in such a way that no liquids escape when disconnected and no air pockets enter the pipe system when connected. The design of their internal structure allows inline cleaning CIP (Cleaning in Place).

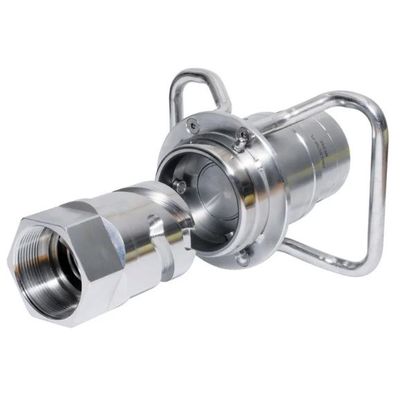

The hose couplings of the DBG SV series have self-closing shut-off valves. When disconnecting, there are no liquid leakages from the hose and container, no air or dirt enters the line system when connecting.  These dry-break hose couplings offer a high degree of safety during refuelling, filling and decanting, because despite frequent coupling, environmental damage or hazards to persons due to leaking liquids are excluded. The liquids do not come into contact with the ambient air. Coupling and uncoupling is very easy and smooth, even if the lines are under residual pressure.

The quick disconnect couplings of the HK series are single shut-off, double shut-off or straight-through. The double shut-off version is to be earmarked for hazardous media such as acids, alkalis, hot water or steam. Single shut-off couplings can be equipped with a non-return valve in the socket or nipple, depending on the application. During connecting the valves do not push against each other until the coupling is shut off to the outside. Conversely, they are only separated when the valves are closed. This type of quick disconnect coupling works splash-free.
