The status alarm is a remote module lending itself to a wide variety of warning and alarm applications, the module provides a combined audible and ‘text selectable’ illuminated window indication. The audible sounder may be muted at any time with the visual alarm indicator remaining on until the alarm condition has cleared.

The Status Alarm II is a remote module lending itself to a wide variety of warning and alarm applications. The module provides a combined audible and `text selectable` illuminated window indication. The audible sounder may be muted at any time or will automatically mute by default after a 5 minute period of continuous operation; the visual alarm window will remain illuminated until the alarm has cleared. An optional internal relay can also be provided to further extend the functionality of the Status Alarm II.

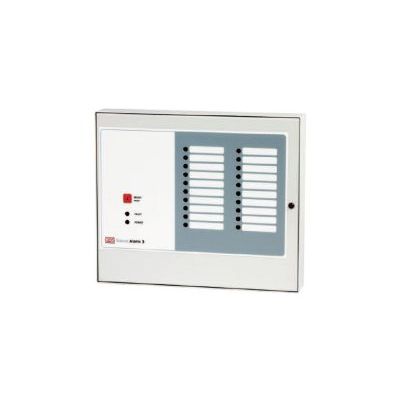

System Function : When any alarm input circuit receives a signal, the appropriate alarm LED will flash with the sounder and alarm relays turning ON. Pressing the reset switch will mute the sounder, and turn the red flashing alarm LED on constant, the relays will reset (option - non resettable relays). When the alarm signal has cleared pressing the reset switch will clear the alarm LED. System Test: Pressing the reset pad for 15 seconds will turn all the alarm indicators on (stage 1), maintaining the reset pad on for a further 15 seconds will activate alarm relays and corresponding remote indicators (stage 2).
