Gem Manufacturing Co., Inc. products

Flat Flange eyelets are recommended when a low profile or a clearance factor is required. Soft materials, where a Rolled Flange could distort the surface, and recessed applications are other criteria for this style of eyelet. They are the second most popular flange for printed circuits.

Flat Flange eyelets are recommended when a low profile or a clearance factor is required. Soft materials, where a Rolled Flange could distort the surface, and recessed applications are other criteria for this style of eyelet. They are the second most popular flange for printed circuits.

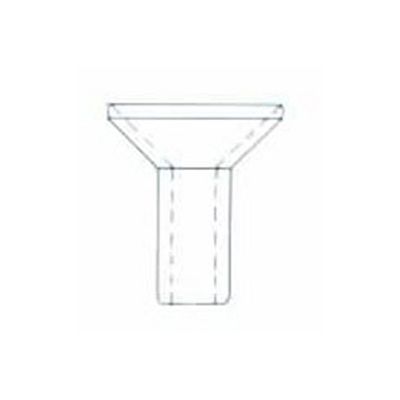

Funnel Flange eyelets are specified principally for printed circuitry and other electronic applications. The ease of insertion of component leads, compatibility with PC board dimensions and easier soldering have established Funnel Flange eyelets as the preferred choice of electronic designers.

Mark Eyelet Part Number : M8043 SEL. Description : Loose Piece With Sealant. Length : 0.155 in. Lead Size : 0.016 - 0.020 in. Shape : Round. Mounting Hole : 0.040 ± 0.003 in. Style : Ribbed Low Profile. Contact Plating : Tin. Thickness : 0.0001 in.

Mark Eyelet Part Number : M8059 SEL, Description : Loose Piece With Sealant, Contact Type : 3 Tyne, Length : 0.155 in, Lead Size : 0.008 - 0.010 x 0.015 - 0.020 in, Mounting Hole : 0.040 ± 0.003 in, Style : Ribbed Low Profile, Contact Plating : Tin, Thickness : 0.0001 in.
