Geologix Limited software

The GEO Software Suite is an integral part of the information delivery workflow of the operations team.

WellXP provides a one-stop shop for uploading and sharing of all your electronic well assets. This cloud-based, zero footprint system can be accessed from anywhere in the world enabling you to quickly and effectively share well reports, real-time GEO logs and key real-time drilling information.

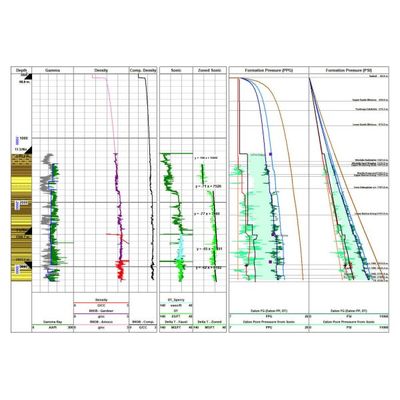

Pore Pressure Surveillance; Monitor your drilling window in real-time with live Pore Pressure and Fracture Gradient charts. Isolate shale sections and define your NCT to calculate PPFG from a range of source data such as DX, DT and Resistivity. Import or calculate OBG. Refine the PPFG calculations with an interpretive tool for clarity in presentations to colleagues and use on future wells.

Breakout Analysis ; GEO Borehole BreakOut Analysis module analyzes hole diameter from a Four Arm caliper dataset and distinguishes overgauge and undergauge sections with respect to bit size. Based on industry standard methods, it further identifies Breakout affected zones and differentiates these from Washout areas. Displayed alongside interpreted lithology, judgements can be made on the lithology units causing borehole collapse.

Produce a real-time net-pay calculation in order to reduce the time required for planning and sending completion equipment offshore in development wells.

WellSTORE is a WITSML based data conversion and delivery store facilitating the aggregation and standardised delivery of multiple data types and sources through the Internet. It is designed to deliver continuous access to service company data by expert systems such as G&G and Drilling applications using WITSML. WITSML – or Wellsite Information Transfer Specification Markup Language – is the industry standard protocol for Internet based access to well-site data.

WellXP is the operations hub for your drilling campaign, suited to multi-well and multi-vendor services. Subject to your role in each well track, contribute or manage operations remotely from any device.

When the GEOSUITE is deployed on the rig to the wellsite geologist, they may upload as required their key geological interpretations. Lithology, descriptions, shows, formation tops and casing picks can be transmitted at the click of a button to more regularly update the geological operations group.

The well operations template is finalised and a prognosis log is filled out with planned casing, prognosed tops, expected litho units, logging scheme and mud plans. Day vs Depth information can also be loaded.
