Geospace Technologies Corporation products

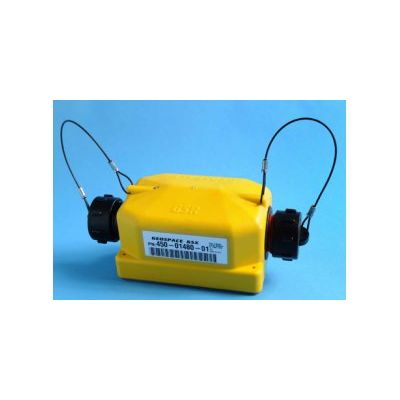

The GSX is designed for cable-free/radio-free seismic data recording. The self-contained unit in-cludes 1 to 4 channels of 24-bit digitization, an integrated/high sensitivity GPS receiver, built-in test signal generator, up to 16 GB per channel of non-volatile solid-state data storage, and a high-speed data port. The unit is housed in a sealed case, with input connector and extended life battery con-nector/data port connector.

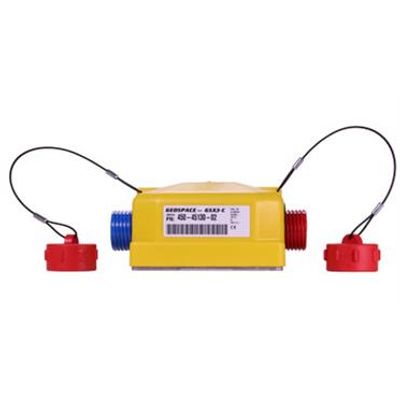

The GSX-C is designed for cable-free/radio-free seismic data recording. 4G LTE cellular network access is available in US and European models. Statuses can be uploaded at user selectable intervals. Seismic data can be uploaded to the cloud on demand.

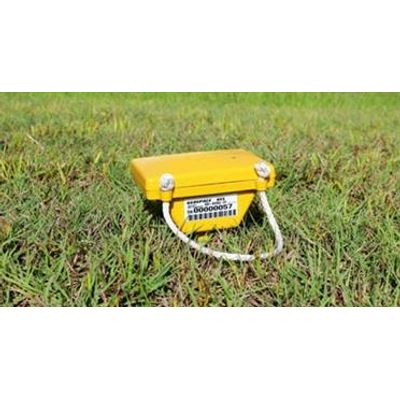

The GCL is a self-contained, autonomous data recorder. An internal geophone, battery, charger, 24-bit digitizer, GPS and GLONASS receiver are enclosed in its sealed case. A built-in test signal generator and up to 32 GB of non-volatile, solid-state data storage allow for quality and reliable data. Faster and more efficient operations can be achieved with the use of the GCL by eliminating the process of engaging connectors for power and data transfer.

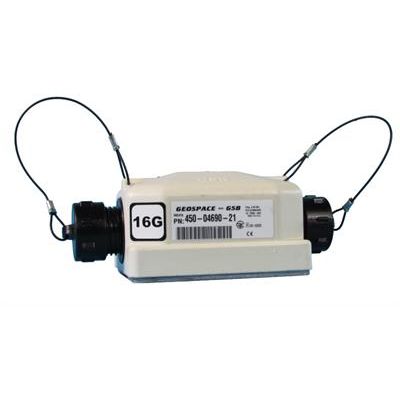

The GSB is a self-contained, autonomous data recorder. A battery, charger, 24-bit digitizer, GPS and GLONASS receiver are enclosed in its sealed case. A built-in test signal generator and up to 32 GB of non-volatile, solid-state data storage allow for quality and reliable data. Although the GSB contains an internal battery for 24 hour a day for 60 days operation, an external battery can be connected to extend operational time.

Geospace Technologies manufactures advanced multi-component ocean bottom seismic recording systems featuring scalable system architecture enabling ten of thousands of channel-count recording capability. The system may be configured for permanent reservoir monitoring or retrievable acquisition. Our OBC systems set new standards for subsea reservoir characterization and exploration.

The OBX-90 is designed for extended duration seafloor seismic data acquisition. These nodes can be deployed in depths exceeding 3,400 meters with continuous recording for up to 90 days.

The OBX-150 has the longest, single acquisition duration of the OBX family. These nodes can be deployed in depths exceeding 3,400 meters with continuous recording for up to 150 days.

The OBX-60 has an advantage of being a small, lightweight, deep water node. These nodes can be deployed in depths exceeding 3,400 meters with continuous recording for up to 60 days.

The GS-1 is a high sensitivity, self-generating velocity detector with extremely low natural frequencies. It is an excellent choice for detecting seismic activity for structural analysis, geologic hazards, vibration isolation, etc

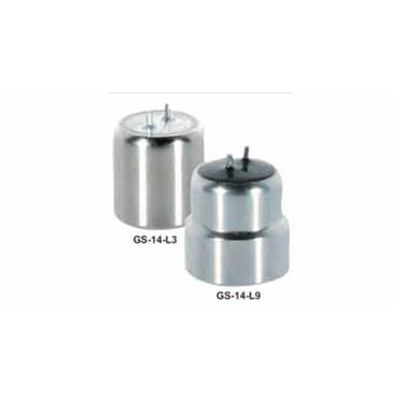

The GS 14 is a miniature, self-generating velocity detector designed for rugged environments. It withstands extreme shock with no change in performance characteristics. The GS 14 has been used as a reliable component in sonobuoys, smart fuses and intrusion detection systems.
