Geovent A/S products

Geovent - 5 Meter Extension Extraction Arm

Geovents Extension arms can be ordered in several variants from 2 to 5 meters, in a straight (1-link) version or up to 4m in the version with double joints (2-link). The Extension arm fits all our arms. It will be possible to get a total length of up to 9 meters - an easy way to extend the WING, COMPACT, ASA arms. When the Wing and Compact arm is mounted in the mounting flange, it is possible to turn the arm 360°. The arms are supplied as a kit, designed with the focus on easy installation and ease of use. Supplied complete incl. piping and flexible joints. If you want shorter or longer versions, this is possible. Geovent wall mounted extension arm is used to extend the ASA, Wing or Compact arm range. It is smoothly operated and is easy to position, due to the special design and use of cone bearings, freemed flange bearings in joints + the use of friction discs on the surface. This makes it possible to adjust the friction of the axis’s by simply adding or reducing tension.

Geovent - Model Perma Arm - Labor Extraction Arm

Energy-efficient bends - the market’s lowest pressure loss. Easy assembly and easy maintenance. The perfect choice of arm for hairdressers, dentist, pharmacies, hospitals etc. The flexible self carrying construction consist of anodized aluminum pipes with 2 or 3 cast plastic joints. In addition, the PERMA arm comes in a ESD approved version, suitable for the electronics industry a well as the chemical, plastics and mechanical industries.

Geovent - Model GFB2 - Industrial Welding Smoke Extraction Filter Unit

The GFB2 filter is the complete solution when it comes to cleaning extracted air efficiently. The filter removes as much as up to 99,97% of hazardous particles from the extracted air. The GFB2 filter is used in a wide range of businesses, primarily industry. It is used for filtering air from processes such as welding, grinding, sanding, plasma-/laser cutting and powder coating. The filter´s capacity is an airflow up to 7.200 m³/h, and can be connected in parallel, if needed. By default, the filter is delivered with a cleaning system, using shots of compressed air, to clean the filter cartridges from excessive dust. As standard, it comes with an filter control unit (timer based as standard, differential pressure upon request) and an easy to move collection bucket. Geofilter GFB2 is made from galvanized sheet metal, and has easy service access, with hatched double doors. We do not normally recommend placing the filter outdoors due to condensation issues.

Geovent - Model MultiBox IV 13-701 - Ventilation Controller with Pressure Range

The MultiBox IV is a secures optimized ventilation solution considering both energy, CO2, and noise. It sends service messages and define the startup time and output voltage. MultiBox IV can be used for pressure range from 10 to 4000 Pa. MultiBox IV is especially useful for dynamic pressure regulation in installations with throttle valve and/or a fan with frequency inverter. The desired pressure or flow (pressure difference) is encoded as a fixed point. The built-in regulator will adjust the damper or frequency inverter. The alarm is activated if the regulation does not hold pressure/flow within the selected alarm limits. Easy to install with touch screen Speed regulation of fan with frequency inverter through an analog 0 to 10V DC signal Control of 24V motor damper On/off control of 24V motor damper Acoustic and visual alarm Pressure measurement and other practical information is shown on the display. Built-in pressure transducer for the range from 10 to 4000 Pa. 230V connection

Geovent - Model LSFG / MSFG 146 - 250 - Extraction Fan

GEOVENT centrifugal fan LSFG and MSFG with forward curving impeller is used for extraction within the industry or for comfort ventilation, depending on the variant. The fan is made of 100% galvanized steel for optimum corrosion resistance and therefore, it is suitable for outdoor installation on the roof or on the wall. There is a complete program of accessories, and the fan can be delivered with a number of options, such as flex connection, mountings, rainshield, motor protection, pressure monitor and soundproof box. As standard we supply supporting angels with vibration absorbers, inlet nozzle with net and clamp for mounting the outlet flange. Motor: Directly driven by a B5-Flange motor. Sealing class IP-55. Voltage: 3x400V or 1x230V / 50 Hz 3 of the fans sides can be used as mounting flange. Made of hot-galvanized plate. All screws and bolts are electro galvanized.

Extraction of Exhaust Fumes

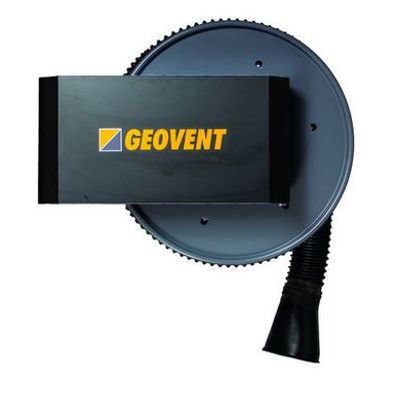

Geovent - Model GTE - Electric Driven Hose Reels

The Geovent GTE hose reel is a versatile solution for extracting exhaust gases, welding fumes, and more. Designed to save space with an automatic roll-out hose, it features easy compatibility with central extraction systems or dedicated fans. Available in various widths and hose diameters, the GTE hose reel meets diverse needs with flexibility and durability, perfect for workshops, garages, and industrial environments.

Geovent - Model GTS - Spring Driven Hose Reels

The GTS hose reel is a versatile, spring-driven solution for efficient exhaust extraction, easily upgraded to an electric-driven model. Available in multiple sizes and lengths, it connects seamlessly to central extraction systems or Geovent fans. With a durable, high-temperature GeoFlex exhaust hose, the GTS handles vehicle fumes effectively, making it ideal for applications involving cars, trucks, and military equipment. Accessories like auto start/stop switches are also available.

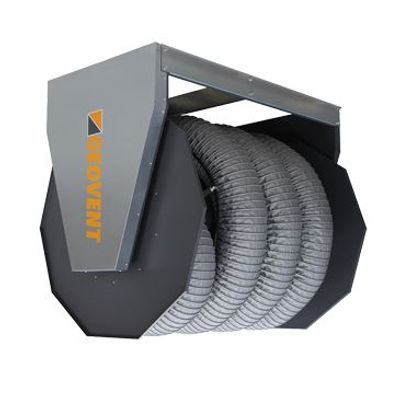

Geovent - Model GTE ø250 - Electric Driven Hose Reels

The Geovent GTE ø250 Hose Reel is a versatile solution for extracting exhaust gases from vehicles like trucks, loaders, and military equipment. With a powerful motor and remote control, it provides easy operation, keeping hoses organized and off the floor. Suitable for high-temperature applications, it offers customizable hose options and an automatic start/stop function, ensuring efficient exhaust extraction in demanding environments.

Geovent - Channel Extraction Fume Duct

The Geovent channel duct type 35 is a versatile extraction system designed for efficient removal of exhaust gasses and fumes in large workshops and at assembly lines. With a movable trolley and up to 100 meters of duct, it provides flexible positioning for different work areas. Its easy installation, user-friendly design, and range of accessories make it ideal for streamlined, linear workflows.

Geovent - Model CERA - Exhaust Arm

The CERA Arm by Geovent is a flexible, non-contact exhaust extraction solution, ideal for workshops handling vehicle fumes. With 360° rotation and adjustable joints, it ensures precise positioning near exhaust pipes for efficient gas removal. Mounted on a movable channel duct, it adapts seamlessly to various workshop layouts, providing a safe and clean environment for both small and large vehicles.
