Gertrud Diebels products

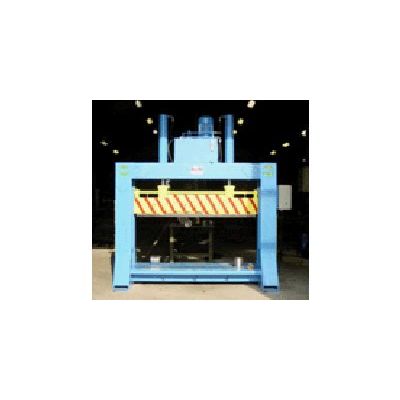

25 t press power so even for heavy 200 L drums with steel ring enforcement Energy saving, silent 2-step hydraulic automatic press process, place the 200 L drum, push the START button and later pull out the small drum automatic END switch off spill tub take up the rest fluid heavy duty teeth plug air holes into the drum surfacw closed cover for seser protection.

The Cable stripping machine for PVC, plastic and lightly armoured cable with a diameter of 2 - 80 mm. The cable is cut along two sides. This machine is simple to adjust and has a high cutting speed. Changing the rollers and blades is simple and quick.

We offer also machines which cut remaining rolls out of the production of paper or packaging industry from printing offices and textile industry. These heavy rolls cannot be cut by a normal cutting machine efficiently and safely. This Guillotine“roll cutting machine has no problems with these rolls. The machine is available in different models. It can be used to cut paper, plastics and aluminium foil. We offer roll cutting machines for rolls up to a width of 3.000mm and a roll diameter of 1.200 mm. The different types are also available to handle with the extra great roll diameter of 1.200 mm. This is shown by an A after the model designation.

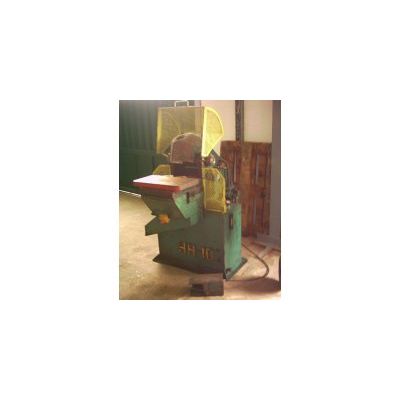

Producer Moros/TypeH-H-10.Shear forces 30t. Electric drive7, 5kw(400V).Handles with copper, aluminium casting, brass  etc. Work bench removable. Safety emergency-stop.Control foot control

The type A 600 alligator shear is fitted with a hydraulic hold-down. The shear head is operated by a foot pedal for single or continuous cutting. The shear head is protected by a safety cage. If the shear is to be subjected to extra heavy loading, a Heavy Duty version is available which has a larger oil tank and oil cooling.

The type JMC 150 has a mechanical holddown plate. The shearing machine can be controled by a foot pedal with a mechanic switching for single cuts or continuous cutting. It has a safety cap. The JMC 150 alligator shear is a DESK TOP mashine.

The Cable stripping machine for PVC, plastic and lightly armoured cable with a diameter of 6 - 100 mm. The cable is cut along two sides. This machine is simple to adjust and has a high cutting speed Changing the blades is simple and quick.

Cutting edges on three sides of the bale box and lid give this machine the ability to handle with oversized materials out of aluminium, copper, zinc and other metals.

The wire-drawing-machine has been developed to separate the core of an open-wire line out of A1 aluminium. The handling of the machine is simple and not complicated. The rolls of the entry can be adjusted by a hand wheel to different diameters of the steel core (3- 20 mm). In the initial phase you have to lay bare 100 mm of the open wire line by hand. Then you put it into the entry rolls. After grasping the wire, the machine draws the steel core out of the wire. A special tool holds back the A1 aluminium wire. The separating of the different materials works quickly and easily. A toolkit for wire diameters of 5/8/15/20 mm takes part of the delivery schedule. This machine offers a quick and easy separation of these two materials, to get a good price at the market.

The types A 400 / A 500 have a mechanical holddown plate. The shearing machine can be controled by a foot pedal for single cuts or continuous cutting. It has a safety cap. The machine can be delivered with wheels or with the possibility to be lifted by forklift truck.
