Gometrics products

Pressure Switches and Thermostats

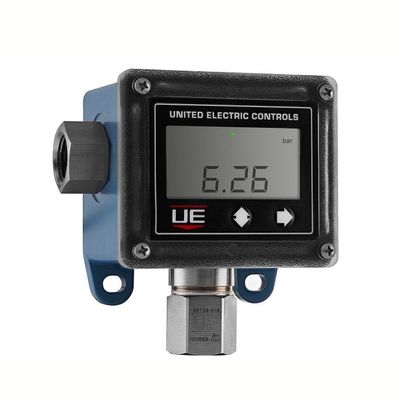

Gometrics - Excela Electronic Process Thermostat/Pressure Switch

The ONE Series safety transmitter has been designed by UNITED ELECTRIC CONTROLS to simplify installation, increase safety and eliminate false alarms. Redundant self-diagnosis “IAW” of the equipment detects the open/closed state and faulty sensor. The analog output of the transmitter provides the process variable and fault detected information. It has digital outputs to provide an alarm of equipment failure to execute an emergency stop. The instrument is password-protected to prevent unwanted parameter changes, eliminating the risk of tampering, and memorizes internally the maximum and minimum values reached. The LED backlighting incorporated in the equipment improves the visualization of process variables, parameters and status in low light locations.

Gometrics VANGUARD - Wireless Gas Detector for Toxic and Combustible

The Vanguard WirelessHART gas detector from UNITED ELECTRIC is ideal for monitoring toxic and combustible gases without costly, fixed wiring. With a five-year battery life and a calibration button, the Vanguard detector is easy to operate and maintain. Each detector has a WirelessHART transceiver, antenna, display, long-lasting power module, gas sensor and signal processor for the gas sensor. Vanguard uses a sensor architecture with the “Flexsense”trademark, which allows the sensor to identify its target gas and self-configure itself to a Vanguard transmitter when connected. It is currently available with either a non-dispersive (0-100% LEL) infrared methane sensor (NDIR) or an electrochemical hydrogen sulfide sensor (0-100 ppm).

Gas Mixers and Dilutors

Gometrics - Humidity Generator Module

The IGM-CHHR is a humidity module that can be used in conjunction with IGM or MGP2 gas mixers to create different gas mixtures including a certain degree of relative humidity. Thanks to our advanced gas mixer software, a part of the dry gas mixture will be circulated through the water bubblers and, as a result, the relative humidity of the output gas mixture will reach the desired value. This is done in a very simple way and in such a way that the ppm concentration of the target reference gases will not change. To control the RH generation module you will need to configure the Mixer Control Unit (MCU). The MCU is a standard PLC-based system designed to automatically change gas mixer and moisture module flow set points based on the state of a process variable. The MCU will measure the process variable (e.g., RH, temperature, pressure) and modify the flow set points sent to the mass flow controllers depending on the algorithm defined by the scientist or expert engineer.

Gometrics - Industrial Gas Mixer

There are processes in the industry in which it is critical the correct manipulation of gas flows. One of the most common operation is the blending of 2 or more gases available from gas cylinder standards, either pure or premixed with certified gas component concentrations. The solution developed by GOMETRICS makes it really easy to carry out the operations of manipulation of these gases with a high level of performance. Thanks to a very versatile and propietary software the IGM allows the engineer, researcher or technician to optimally generate the required gas blend for your process in a matter of seconds. Typical applications include calibration of gas detectors, linearity analysis for analyzer verification, packaging for the preservation of food, material surface treatments and biochemical reactors.

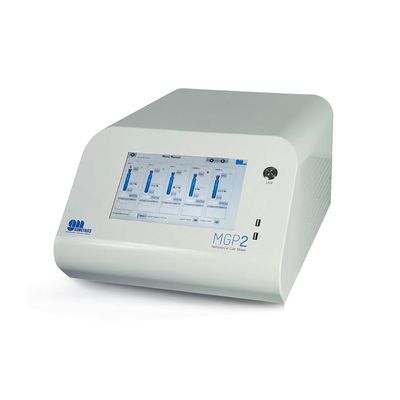

Gometrics - Laboratory Reference Gas Mixer

There are processes, both in industry and in laboratories, in which the handling of industrial gases is necessary. One of the most common operations is the dilution or mixing of two or more input gases. To carry out these operations, industries or laboratories can be equipped with different more or less complex devices that allow the handling of these gases. The solution developed by Gometrics allows handling operations to be carried out with a single instrument that is very easy to install and commission. The MGP2 is a device that allows the user to optimally perform the gas mixtures required for his application. In its design, priority has been given to precision, versatility, ease of use and safety. Special emphasis has also been placed on the user interface to enhance usability and ergonomics.

Calibration and Testing Systems - Basic Calibration Tools

Gometrics - Intrinsically Safe Digital ATEX Pressure Gauge

The T210-IS digital pressure gauge is part of the Tinycal T210 series, microprocessor-based portable instruments designed and manufactured by Gometrics to indicate pressure values. The T210-IS has the specificity of being prepared and certified for explosive atmospheres and is distinguished by its red cover.

Calibration and Testing Systems - Multifunction Calibrators

Gometrics - Multifunction Portable Calibrator

The MF680 multifunction process calibrator manufactured by Gometrics is an instrument that combines technology, robustness and ease of use. Ideal for field adjustments or calibrations of a wide variety of process instruments, an ideal compromise between performance, dimensions, ease of use and cost.

Calibration and Testing Systems - Calibration Benches and Panels

Gometrics - Advanced Panel Calibrator

The advanced MC6 panel calibrator allows calibration of pressure, temperature and electrical signal instruments. It also contains a comprehensive fieldbus communicator for HART, FOUNDATION Fieldbus and Profibus PA instruments. Its versatility and ease of use make this calibrator a unique tool. It has a large 5.7-inch full-color touch screen, and the user interface is available in multiple languages. Its ergonomic panel-mounted design is ideally suited to applications in the pharmaceutical, energy, gas and oil, food and beverage, service, chemical and petrochemical industries.

Calibration and Testing Systems - Pressure Patterns

Gometrics Beamex - Intrinsically Safe Communicator and Gauge

The Beamex MC6-Ex is an advanced calibrator and communicator, highly accurate with exceptional functionality. It is a multifunction calibrator-documenter and communicator, which offers the capability to calibrate pressure, temperature and electrical signal measuring instruments. It also contains a field communicator for HART, Foundation Fieldbus and Profibus PA instruments.
