Gorman-Rupp Co. products

The Ultra V Series® and VS Series® solids-handling, self-priming centrifugal trash pumps offer up to three times the pressure and up to 60% more flow. Available in a variety of pump station configurations or stand-alone in 3”, 4”, and 6” sizes. The superior solids handling and increased pressure capabilities of the Ultra V Series pumps make them ideally suited for various industrial and sewage applications.

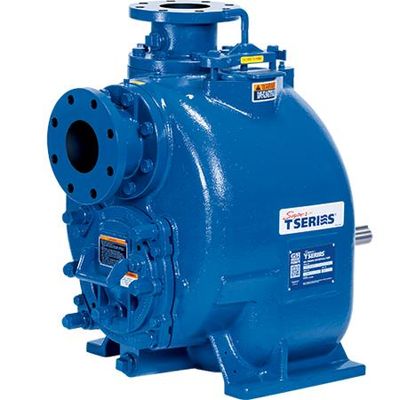

Designed for economical, trouble-free operation, the superior solids-handling capabilities of the Super T Series® pumps make them ideally suited for a variety of applications, including solids-laden liquids and slurries. In addition, the large volute design allows automatic repriming in a completely open system without needing suction or discharge check valves.

The self-priming centrifugal T Series® is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have made Gorman-Rupp T Series pumps the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it`s a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to reprime automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.

Gorman-Rupp Super U Series pumps are among the most efficient self-priming, solids handling pumps available on the market. Their unique hydraulic design and smooth wall volute casing minimize friction loss and drag. The multi-vane, open impeller is designed for high-efficiency operation yet can still handle limited solids. The pumps deliver high efficiencies (up to 75%) and perform efficiently across a broad operating range. Varying machine loads that cause pumps to operate right or left of their best efficiency point will affect operating efficiency by only a minute percentage. These pumps offer the same reliability and performance as the Super U Series with additional features.

O Series pumps were originally designed for handling petroleum products. Later, O Series pumps were introduced into the industrial market for effective handling of solvents and similar liquids, as well as excellent clean water handling.  The straight-in-suction design without a check valve eliminated entrance restrictions provides quick, reliable self-priming with few moving parts offering saving thru minimal maintenance and increased efficiency.  The O Series has a variety of seal configurations to choose from allowing it to handle a number of different liquids.

Gorman-Rupp 80 Series medium head, mild solids-handling, self-priming centrifugal pumps are designed for non-stop work loads. The straight-in-suction design of these high efficiency pumps guarantees quick positive priming and allows them to operate at higher suction levels than most other self-priming centrifugal pumps. The liquid being pumped enters directly into the eye of the impeller, and a suction check valve prevents in-line return flow when the pump is shut off. And, because they have few moving parts, 80 Series pumps are easy to maintain and service, saving money in the long run. 80 Series self-priming centrifugal pumps are available in a variety of configurations for all of your industrial, construction, mining, agricultural, municipal and petroleum fluidhandling needs.

Gorman-Rupp 10 Series pumps are specifically designed for handling solids, corrosive liquids and slurries. They have few moving parts, so maintenance is minimal. If a clog occurs, it can be removed easily through the cover plate opening without disturbing piping or the use of any special tools. The 10 Series offers a variety of metallurgy and seal configurations to choose from to handle a number of different liquids.

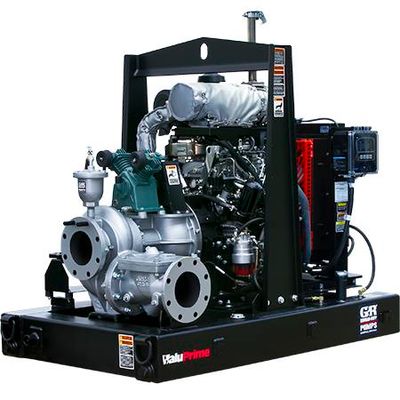

Gorman-Rupp’s new line of ValuPrime priming-assisted centrifugal pumps is designed to dewater your job site without taking a chunk out of your bottom line. For applications not requiring higher head and higher flow, VPA Series pumps offer the same quality components you have grown to expect from the experts at Gorman-Rupp.

Gorman-Rupp SF Series submersible solids-handling pumps are designed to provide you with the ultimate in pumping performance. All SF Series pumps use NEMA Premium Efficiency motors and pass a minimum 3" spherical solid. Vortex pumps use the patent-pending impeller technology.
