Gottlieb Nestle GmbH products

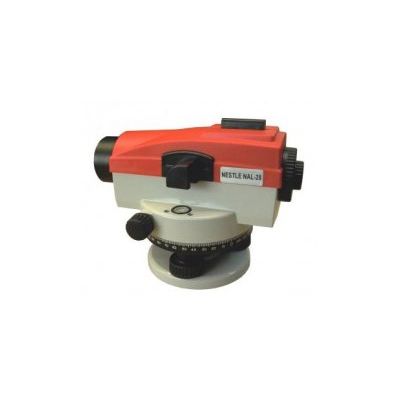

The NESTLE NAL series is designed for building construction applications:Available with 20x, 24x, 28x and 32x magnification. Measurement of height differences between Points. Distance measurement via stadia lines. Height layout. Horizontal angle measurement. Air-dampened compensator for fine adjustment. All operating elements are positioned conveniently. Casing sealed according to protection class IP54 for protection against splash and dust. Aluminium body, casing cover and control knobs made of Plastics.NAL20 with 20x magnification, model no. 15000001. NAL24 with 24x magnification, model no. 15002001. NAL28 with 28x magnification, model no. 15004001. NAL32 with 32x magnification, model no. 15006001.Scope of delivery: NAL level, plumb bob, adjustment tools, manual, case.

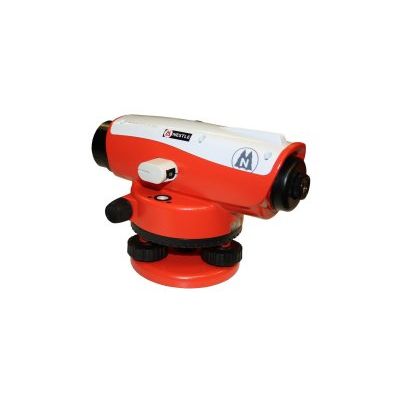

The NESTLE NLS series is designed for building construction and precision levelling:Available with 20x, 24x and 32x magnification. Measurement of height differences between Points. Distance measurement via stadia lines. Height layout. Horizontal angle measurement. Magnet-dampened compensator for fine adjustment. All operating elements are positioned conveniently. Casing sealed according to protection class IP65 for protection against splash and dust. Aluminium body, casing cover and control knobs made of Plastics.NLS20 with 20x magnification, model no. 15008001. NLS24 with 24x magnification, model no. 15010001. NLS32 with 32x magnification, model no. 15012001.Scope of delivery: NLS level, plumb bob, adjustment tools, manual, case.

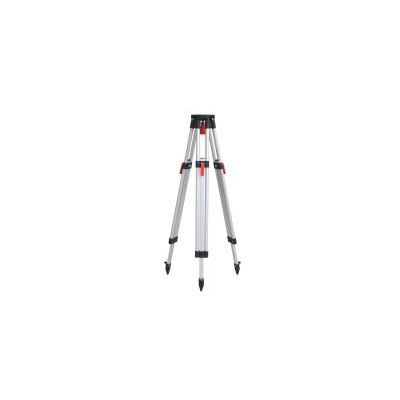

The lightweight 13000000 is especially designed for levelling, which often requires quick repositioning. Quick locking with excentric clamping levers. New patended circumferential clamping system. The clamping force takes effect on the outer and inner profiles. The force is always constant at every grade of extension. We only use high-quality aluminium for the tubes and profiles. The anodized aluminium parts are weather-proof and designed for toughest use. The aluminium tubes slide without jamming. This prevents the material from wear and keeps the tripod ready for use over a long period of time. Tripod head made of polymer-fibreglass composite. The special feature is the circular vial which is integrated in the tripod`s head-ideal for quick setting up. The plastic parts are made of polymer-fibreglass composite and are extremely robust. These quality characteristics make NESTLE tripods the superior choice in comparison to competitive products.

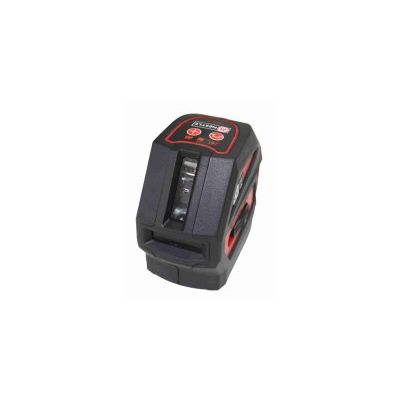

Line Laser for Indoor Working; Set up and start work! The NESTLE NCL-2 has an integrated pendulum compensator which does the fine adjust by itself. An outstandingly visible laser line. You could use a receiver for longer distances – switch into the pulse mode. No operating errors – clearly arranged control panel. It is possible to fix the horizontal and vertical laser lines to operate in every position. Low-bat indicator starts blinking when battery voltage under

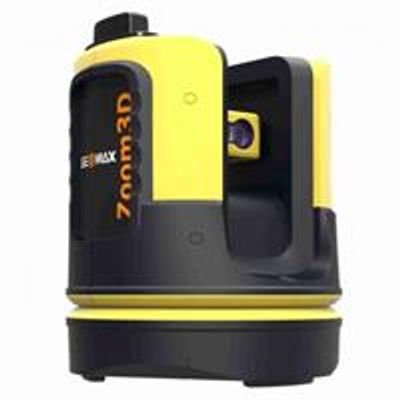

The Zoom3D is a motorized 3D measurement system with optional automatic target tracking. The ease of use has been designed for non-surveyors. There is only one button for turning on and off the instrument, any operation carried out wirelessly via a handheld computer. By Zoom3D you simply and safely 3D stakeout and survey in indoors and outdoors. The Zoom3D sets new standards and is the ideal tool for simple construction surveying, building modelling in BIM area (BIM = Building Information Modelling) and versatile interior data collection. To control the measurements we recommend Panasonic FZ-M1 tablet 7 “and Field Software X-PAD 3D

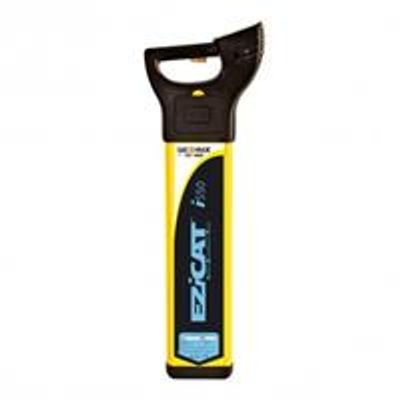

EZiCAT i550, model no. 27501000, locator with additional depth display function*. The determination of the precise location of underground lines to protect employees and equipment during an excavation project has never been more important. The EZiCAT devices identify the location of underground lines by the receiving electromagnetic signals radiated from them. The intelligent EZiCAT software interprets these signals and provides the user both audible and visual information to the position and orientation of the hidden lines. For depth displaying a signal transmitter t100 or t300 is necessary.

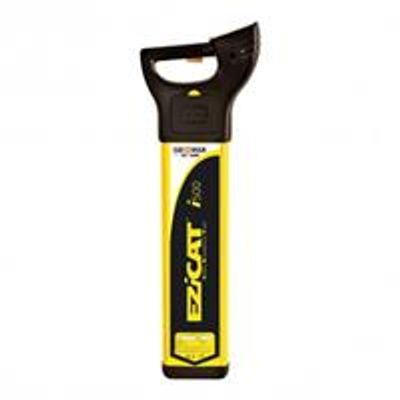

EZiCAT i500, model no. 27500000, rugged instrument for easy and fast line location. The determination of the precise location of underground lines to protect employees and equipment during an excavation project has never been more important. The EZiCAT devices identify the location of underground lines by the receiving electromagnetic signals radiated from them. The intelligent EZiCAT software interprets these signals and provides the user both audible and visual information to the position and orientation of the hidden lines.

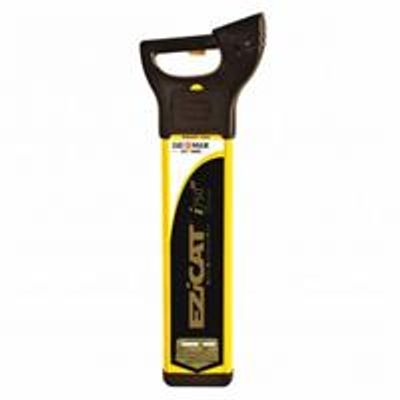

EZiCAT i750xf, model no. 27518000, locator with depth display function*, data logging, with Bluetooth and GPS. The determination of the precise location of underground lines to protect employees and equipment during an excavation project has never been more important. The EZiCAT devices identify the location of underground lines by the receiving electromagnetic signals radiated from them. The intelligent EZiCAT software interprets these signals and provides the user both audible and visual information to the position and orientation of the hidden lines. For depth displaying a signal transmitter t100 or t300 is necessary.

Measure the distance in seconds without the help of another person by simply pressing a button. Avoid the risk of work accidents during difficult and dangerous measurements, e.g. when heights are measured. Thanks to the precise laser technology, the starter model Leica DISTO™ D1 delivers reliable measurement results. The operation of the device is very simple and intuitive. The Leica DISTO™ D1 can be quickly and easily connected to the Leica DISTO™ free App Sketch for transferring and documenting measurements.

The compact and handy Leica DISTO™ D2 has many interesting functions and is still simple to use. Thanks to its ergonimic and compact design with soft grip, the Leica DISTO™ D2 sits securely in your hand, is lightweight and fits in any pocket. The innovative X-Range Power Technology makes it possible to measure distances up to 100m. This technology ensures optimum measure performance, what means fast and reliable measurements. Whether measuring out of corners, slots or from edges, with the multifunctional end-piece you are prepared for all measuring situations. The instrument detects the end-piece automatically, which helps to avoid expensive measuring errors.
