Detroit Diesel OM904 Tier-3 diesel, 4 cycle, inline 4 cylinder, liquid cooled, electronic controlled. Vertical canister style lube filter attached to engine. Remote mount primary fuel/water separator. Gross Rating: 172HP @ 2000 RPM (129kw) 498 ft. lb. Torque @ 1200-1600 RPM  (675Nm). Net Rating: 152 HP @ 2000 RPM (114kw).  Variable viscous fan clutch system. Vertical stacked hyd. oil cooler, charge air cooler
and radiator. Maximum slope: 30o 12 volt starter, 100 amp alternator, two. SAE #C31-S 1000 CCA batteries, two-stage dry type air cleaner with centrifugal precleaner and safety element. Evacuator valve and service indicator. Fuel tank capacity: 99 gallons (375 L)..

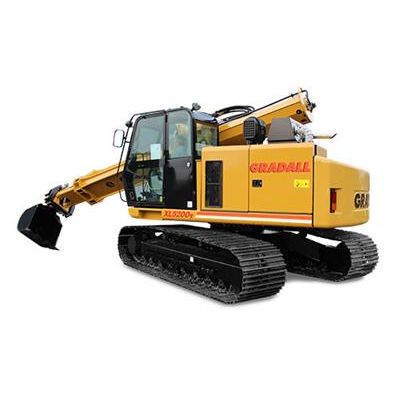

Series V crawler models feature Tier 4 final compliant Volvo engines and other advantages, preparing them for cost-efficient, highly productive versatility on mud, rocks, sand and dirt. Versatility is rooted in the legendary full-tilting, telescoping boom that can do more with more attachments, even working under bridges and in tunnels where conventional booms won`t fit.

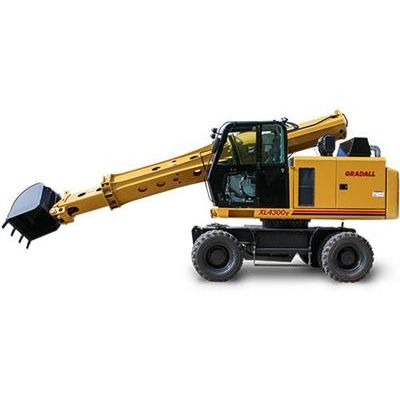

Excellent stability allows rough terrain wheeled excavator models to pick and carry large loads as well as work at the front, rear or either side of the carrier - all without the need for optional outriggers. A highly mobile undercarriage on Series V models moves easily over both pavement and dirt, all powered by a Tier 4 final compliant Volvo engine. The low-profile telescoping boom can work under bridges and trees, accomplishing more work with full boom tilt advantage.

Highway speed excavators can be driven up to 60 mph, eliminating the need for a lowboy trailer while they move quickly to job sites and then back to the safety of the equipment yard. Series V models feature full tilting telescoping booms and new Tier 4 final compliant Volvo engines as well as AutoDrive™ mobility advantages including an automatic transmission and other advantages.

VOLVO TAD571 VE, TIER 4f, 4 cycle, inline 4 cylinder, liquid cooled, electronic controlled. Vertical canister style lube filter attached to engine. Vertical canister style main fuel filter and fuel/water separation with manual feed pump attached to engine. Water in fuel indicator and alarm. Gross Rating: 173HP @ 2200 RPM (129kW) 590 ft lb Torque @ 1100-1500 RPM (800Nm) Net Rating: 153 HP @ 2200 RPM (114kW)
Variable viscous fan clutch system. Vertical stacked hydraulic oil cooler, charge air cooler and radiator. Maximum slope: 30° 24 volt starter, 100 amp alternator, two SAE #C31-S 1000 CCA batteries, two-stage air cleaner with high-efficiency pre-cleaner, vacuator valve and remote service indicator. Fuel tank capacity: 99 gallons (375 L).

VOLVO TAD571 VE, TIER 4f, 4 cycle, inline 4 cylinder, liquid cooled, electronic controlled. Vertical canister style lube filter attached to engine. Vertical canister style main fuel filter and fuel/water separation with manual feed pump attached to engine. Water in fuel indicator and alarm. Gross Rating: 173HP @ 2200 RPM (129kW) 590 ft lb Torque @ 1100-1500 RPM (800Nm) Net Rating: 153 HP @ 2200 RPM (114kW) Variable viscous fan clutch system. Vertical stacked hydraulic oil cooler, charge air cooler and radiator. Maximum slope: 30° 24 volt starter, 100 amp alternator, two SAE #C31-S 1000 CCA batteries, two-stage air cleaner with high-efficiency pre-cleaner, vacuator valve and remote service indicator. Fuel tank capacity: 99 gallons (375 L).

VOLVO TAD571 VE, TIER 4f, 4 cycle, inline 4 cylinder, liquid cooled, electronic controlled. Vertical canister style lube filter attached to engine. Vertical canister style main fuel filter and fuel/water separation with manual feed pump attached to engine. Water in fuel indicator and alarm. Gross Rating: 172HP @ 2000 RPM (128kW) 590 ft lb Torque @ 1100-1500 RPM (800Nm) Net Rating: 152 HP @ 2000 RPM (113kW)
Variable viscous fan clutch system. Vertical stacked hydraulic oil cooler, charge air cooler and radiator. Maximum slope: 30° 24 volt starter, 100 amp alternator, two SAE #C31-S 1000 CCA batteries, two-stage air cleaner with high-efficiency pre-cleaner, vacuator valve and remote service indicator. Fuel tank capacity: 99 gallons (375 L).

Halogen headlights, tail lights, back-up lights and alarm, stoplights, identification lights front and rear, directional lights, 4-way hazard lights, work lights and instrument panel lights. Windshield wiper/washer, West Coast style mirror system with plane and convex mirrors,
front and rear tow hooks, desiccant type air dryer with automatic purge valve and thermostatically controlled heater.

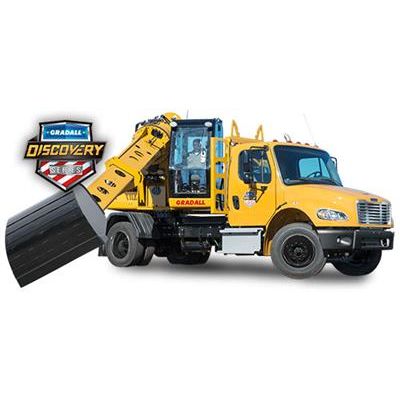

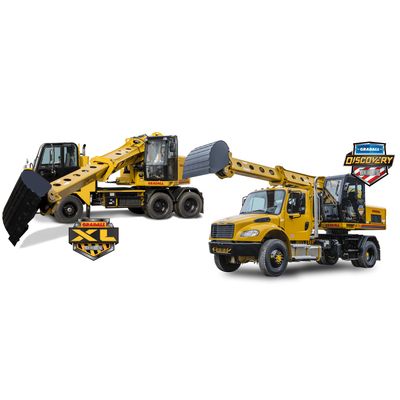

Gradall XL Series V and Discovery highway-speed excavators travel quickly to one or more jobsites and then back to the safety of the equipment yard at the end of the day. With Gradall’s world-famous full tilting, telescoping boom, and an array of available attachments, both XL and Discovery models offer versatility with unmatched mobility. Choose from XL Series V or the Discovery models built on a Freightliner chassis, designed with government and specialty contractors’ budgets in mind.
