Granzow, Inc. products

Granzow`s Series A direct acting solenoid valves are highly repeatable and reliable due to a heavy duty plunger design and high quality construction. These valves include a wide range of orifice sizes, are available in brass between 1/8" and 1/4", with sealing materials including Buna, FKM and PTFE, and pressure capabilities up to 1,450 psi. Interchangeable coils offered for this series cover a wide range of AC and DC voltages. Connectors such as cable grip, ½" NPT conduit or power cords are available as well.

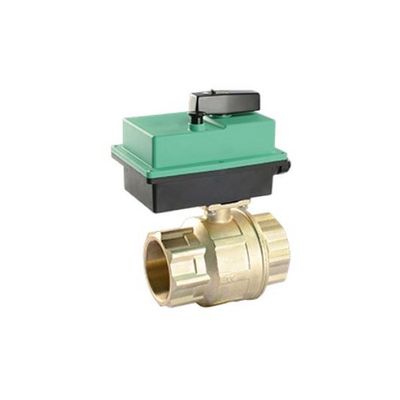

This line of valves features industrial strength actuators with 70 lbf-in of torque. Valve bodies are available in brass and lead free brass in sizes from ¼" up to 1". All models come standard with manual override.

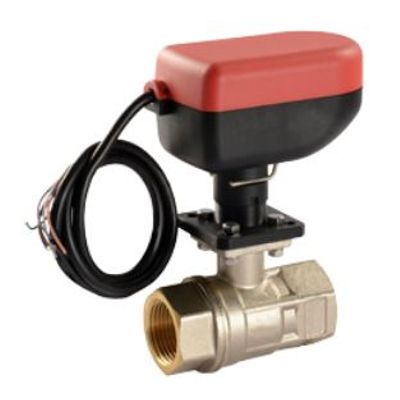

This line of valves features industrial strength actuators with up to 97 lbf-in of torque as well as heavy duty valve bodies in brass and lead free brass from ¼"–1¼" and in 316 stainless steel from ½"–1".

This line of valves features industrial strength actuators with up to 194 lbf-in of torque. Actuators come with two free microswitches and standard AC voltage models also include manual override. Heavy duty valve bodies are available in brass and lead free brass from 1¼"–2" and in 316 stainless steel from 1"–1½".

This line of valves features industrial strength actuators with up to 350 lbf-in of torque. Actuators come with two free microswitches and standard AC voltage models also include manual override. Heavy duty valve bodies are available in brass from 2"– 4", lead free brass in 2", and in 316 stainless steel from 1½"–2".

Cast metal pumps are used in paint, varnish, automobile, waste water, ceramic, porcelain, mining, building and chemical industries. More than 20 models with different sizes and designs are available to serve almost any type of application. The sturdy cast metal construction ensures high abrasion resistance when pumping abrasive media, a low flow resistance due to the high surface finish, availability throughout a wide temperature range, excellent corrosion resistance, and a long lifetime. In combination with the well-established control system, these compact and powerful cast metal pumps are easy to transport and are therefore used as both mobile units or stationary equipment. During the development of the pumps, great attention was paid to service friendliness, in order to minimize downtime.

Non-metallic pumps are used in galvanic, coating, paint, varnish, pharmaceutical, chemical, waste water and building industries, and are made of mechanically manufactured or uniquely designed injection-molded plastic parts. Non-metallic pumps were designed for problem-free pumping of corrosive and abrasive products in such applications.

Pipe Size:: 1/4". Inlet Pressure:: 43-315 psi. Set Pressure:: 3-21 psi. Flow Coefficient:: 0.57 Cv. Body:: Brass. Seal:: NBR. Temperature:: -4-140 °F. Connection Type:: Female. For Use With:: Compressed air, gas and liquids. Weight With Diaphragm:: ~2.65 lbs.

Pipe Size: 1/4". Inlet Pressure: 64-631 psi. Set Pressure: 5-43 psi. Flow Coefficient: 0.57 Cv. Body: Brass. Seal: NBR. Temperature: -4-140 °F. Connection Type: Female. For Use With: Compressed air, gas and liquids. Weight With Diaphragm: ~2.65 lbs.

Pipe Size: 1/4". Inlet Pressure: 169-1682 psi. Set Pressure: 12-116 psi. Flow Coefficient: 0.57 Cv. Body: Brass. Seal: NBR. Temperature: -4-140 °F. Connection Type: Female. For Use With: Compressed air, gas and liquids. Weight With Diaphragm: ~2.65 lbs.
