Graphite Metallizing Corporation products

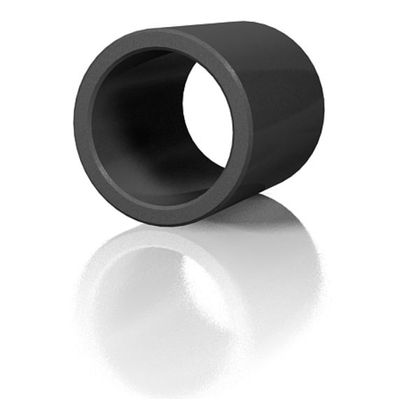

A complete size range of standard "off the shelf" solutions. These self lubricating bushings provide maintenance free service in temperatures to 1000° F (535° C). Available in grades for low and high temperatures and in FDA accepted grades. The sizes shown below are for general purpose applications. The final dimensions and tolerances will vary slightly with the temperature of the application and grade selected. The actual OD of the bushing will include allowance for a suitable press fit into a cast iron or steel housing of the size shown. The actual ID will include allowance for running clearance suitable for moderate speeds. Dimensions below are in inches. Metric and custom sizes are also available. To determine which grade (xxx) is right for your application, please contact one of our engineers at sales@graphalloy.com or 914-968-8400.

GRAPHALLOY^® Type 453 high temperature bearings are self-lubricating, contain no oil and provide long service life in high temperature applications. Suitable high temperature applications include industrial ovens, conveyors, overhead paint lines, valves, furnaces, louvers and trolley wheels. These sizes also fit many common overhead paint line conveyors. Self-lubricating GRAPHALLOY eliminates time consuming and costly maintenance. GRAPHALLOY survives hostile environments and high temperature applications with capabilities of +1000°F and more! Type 553 high temperature thrust washers are used with Type 453 high temperature bushings in many conveyor applications. Dimensions below are in inches. Metric and custom sizes are also available. To determine which grade (XXX) is right for your application, please contact one of our engineers at sales@graphalloy.com or 914-968-8400.

These stainless steel flange blocks are commonly used in dampers, louvers, and shutter installations.  The stainless steel housing makes these flange blocks ideal for wash down and other harsh applications.

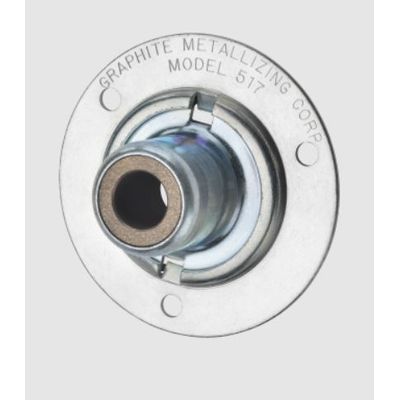

Metric shaft dimensions can be manufactured. Plated Carbon Steel Housing (Housing is made of 14 guage zinc-plated steel) This flange assembly provides for initial self alignment.  The broad size range makes the 517 series an economical solution for damper and other hard to lubricate applications.
