Gravity Flow Systems Southwest, Inc. products

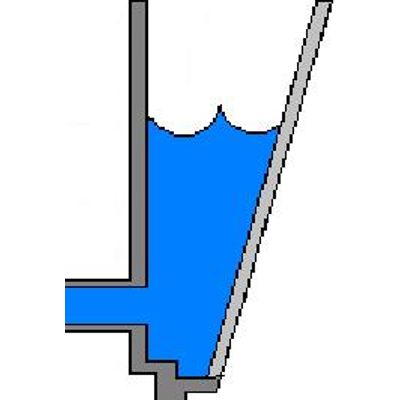

Lateral Flow Decant Panels offer the ability to remove liquids from a slurry, as the name implies, laterally. This ability provides for dewatering and thickening to a greater extent than that achieved via mere supernatant removal from the top of a basin.

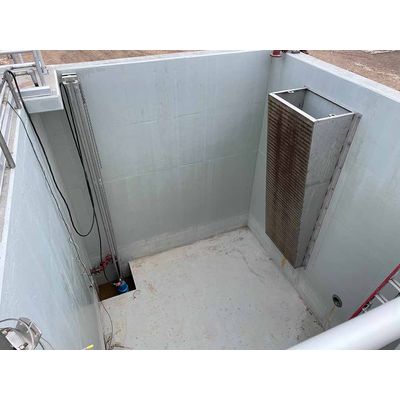

GFS has the answer to your Hydro-Excavation waste removal needs! Due to new Federal Regulations regarding Hydro-Excavation municipalities are finding it difficult to get rid of Vac-Truck Waste. This simple yet effective design allows rapid dewatering of sand, soil, gravel and other debris without overloading the rest of the wastewater system. The bed is designed for easy dumping and exiting. The Stainless Steel Wedgewire Trench Screens rapidly separate the water from the solids and the Wedgewire Decant Screen eliminates supernatant making it possible to waste multiple times per day.

The Wedgewater filter system is made up of 12″ square by two inch high interlocking high-strength polyurethane media tiles. The media features a special non-clogging design, easy maintenance, and near perfect reliability.

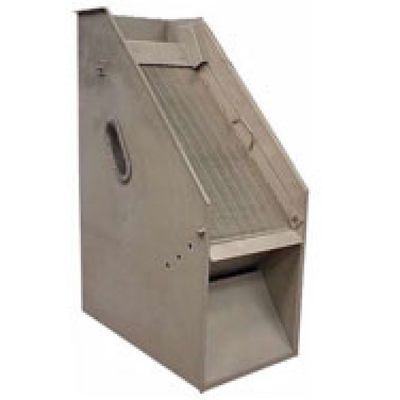

The Wedgewater Sieve takes maximum advantage of the basic principles of physics to reliably screen and classify. This well-documented technology has been proven effective in meeting the demands of municipal and industrial processing and treatment.

Our Stainless Steel Wedgewater Media filter bed systems are constructed of interlocking stainless steel Wedgewater filter panels. These Panels are extremely durable, and feature a special non- clogging design, easy maintenance, and near perfect reliability. All of our Wedgewater systems require a mere 1/6 to 1/10 the space of conventional sand drying beds. No specialized skills are required for operation. The system functions by force of gravity, so the only energy costs incurred are the minor requirements of the auxiliary pumps and polymer equipment.

GFS Lateral Flow Thickeners are the most effective method for removing excess liquids from all biological sludges and many industrial sludges. Gravity Flow Systems Southwest, Inc. Lateral Flow Thickeners require no direct energy or power input. Unwanted liquids are separated by taking advantage of natural phenomena.a
