Greenfield Tech Projects products

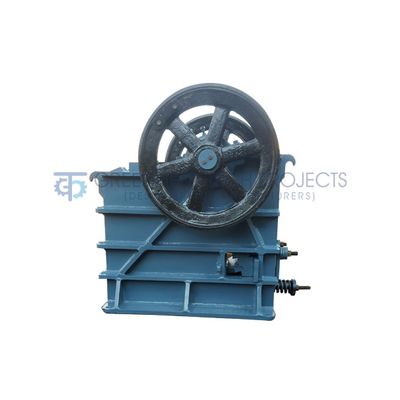

Mild steel fabricated crusher body is strengthened to withstand heavy load. Main (Eccentric) shaft is running on antifriction bearings. Jaw plates and chick plates are made from highly wear resistance manganese steel. Oscillating Jaw is fabricated from mild steel, which is fitted on main shaft. Both flywheels are work as pulleys. Flat OD wheel is for flat belt drive and V-grooved wheel is for V-belt drive. Out let gap can be varied easily by add OR remove mild steel plates between toggle plate and main body.

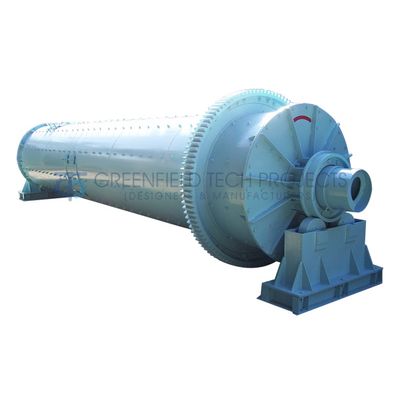

Heavy duty, continuous type ball mill is with three compartment and screen. Replaceable Liners are fixed inside entire mill.  Liners material and shape is selected based on material to be grind. Input material is fed in two primary grinding compartments. Large diameter balls for reduce particle size are laying inside first compartment. Material comes into second compartment for further grinding. Small size Balls are laying inside second compartment. Material comes into third for fine grinding.

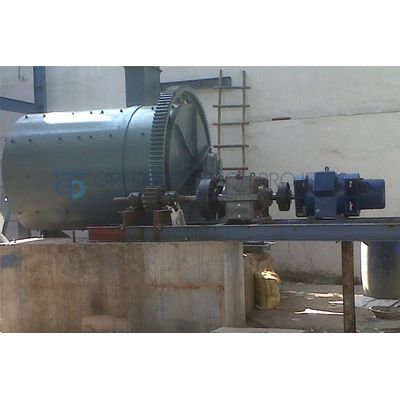

GREENFIELD batch type ball mill is working as batch type operation. Adequate size, shape and qty Grinding media is placed inside rotary drum from inlet port. Material can be fed from inlet connection provided in shell. All ports need to close before start rotating rotary drum. Fed material rotates with rotary drum. Grinding media rotate and dropped in side and reduce particle size. Mixing and grinding operation being done simultaneously when drum rotates. Mill is to be stop after completion of batch and remove material from outlet port.

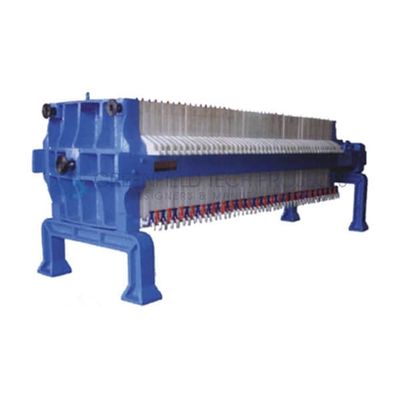

The membrane strainer is a solid liquid separation equipment using the principle of pressure feeding. It is being used successfully in almost every industrial filtration processes. It includes a series of filter / strainer plates and frames or recessed plates which are arranged alternately. A filter / strainer medium is provided in between the plates. A feeding pump is utilized to force the liquid through the medium leaving the solid trapped inside.

Greenfield Tech Projects  is one of the leading and reputed manufacturing company in India with 3 decades of  experience in the field of drying and processing of Industrial as well as food grade materials. Greenfield Paddle Dryers are  designed and manufactured to that efficiency that it can dry all kinds of sludge by utilizing either steam or heating mantles or oil as an heat source.

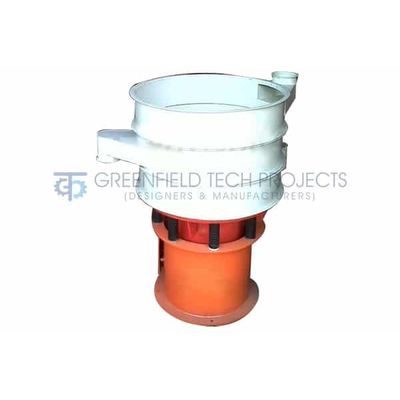

Gyratory motion is the most effective method for screening. It causes 100% rotary motion and causes dispersion stirring & stratification of material to be sifted. Feed material constantly flows in Horizontal motion along a loop pattern on Vibro screen surface. GREENFIELD Vibro screen provides optimum screening & assures maximum feed-rate & efficiency.

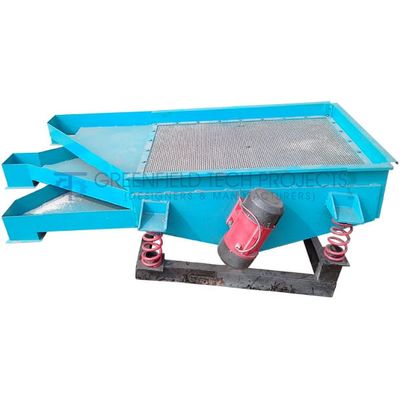

Industrial vibrating screen are used as standard practice where large capacity and high efficiency of screening are desired. Vibrating screen for stand alone or multiple installations are manufactured in a wide range of sizes for varying application and production demands. Each unit is compatible with all screening systems and can be integrated into existing and current processing plants. We offer wide range of vibrating screen and vibrating separator like industrial vibrating screen, vibrating screen separator, vibrating screens, industrial woven wire screens, woven wire screen. This industrial vibrating screen and vibrating screen separator available in industrial leading price.

We are engaged in offering Conveyor Belt to carry loose and fine material without littering. The angle of elevation is around 15 degree to 45 degree to develop as troughed tray with capacity to hold a variety of material. The capacity ranges from 100TPH to 2000TPH. Our team of engineers and other professionals make sure that each of the product we offer meet the requirement of the industries and efficiently fulfill the application. Moreover, Belt Conveyors are available at competitive rates.

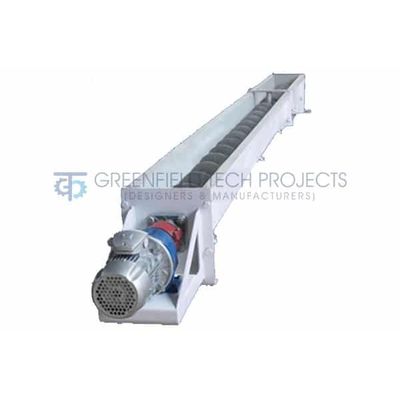

Sound manufacturing capabilities enable us to design and develop Screw Conveyor that can transport moisturized, fine, and dusty material that are easy to transport from one place to another. This kind of Conveyors Screw is demanded in industries like chemical, fertilizers, and others. We have the expertise to design and develop high grade Screw Conveyor System that serve the purpose of the customers and meet the needs of the clients. Above all, we offer these products at competitive prices.
