Greenwood Magnetics Ltd
5 products found
Greenwood Magnetics Ltd products

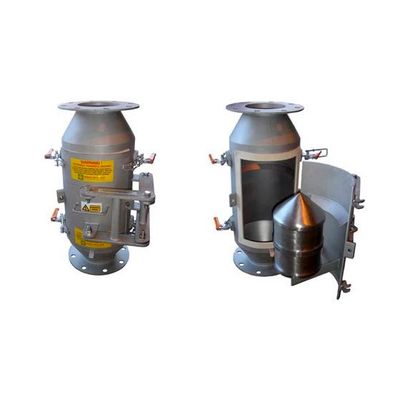

Greenwood Magnetics - Permanent Magnetic Bullet Separator
The Greenwood Permanent Magnetic Bullet Separator is designed to efficiently remove ferrous metal contaminants from either gravity-fed or pneumatic pipelines. Encased entirely in stainless steel, this compact separator is highly suitable for food powders and intake lines that deal with high-velocity and abrasive products such as wheat. Positioned strategically for easy access and maintenance, the magnets require regular cleaning, facilitated by either star knobs or optional quick release swing bolts. It caters to various pipeline configurations, ensuring minimal turbulence and zero blockage with internal deflectors. Offering a maximum magnetic strength of 7000 gauss, the separator is ideal for flour lines with an iron additive to prevent undesired removal. Full customization ensures it fits specific requirements, from line pressure to temperature handling. This technology proves particularly beneficial in sectors like food processing, powder handling, and recycling, effectively trapping metal fines to enhance product quality and operational efficiency.
Greenwood Magnetics - Easy-Clean Bullet Magnet for Ferrous Metal Extraction
The Greenwood Easy-Clean Bullet Magnet is engineered to efficiently extract ferrous metal contamination from both gravity-fed and pneumatic pipelines. Enhancing the traditional bullet magnet design, it integrates an easy clean feature that simplifies regular maintenance. This feature significantly reduces operational downtime and enhances safety by minimizing the risk of injuries associated with handling sharp metal fragments during cleaning. Designed for installation in either vertical or horizontal configurations, it is ideally suited for high-velocity pneumatic process lines or intake lines dealing with powders and other free-flowing materials. The innovative easy clean mechanism ensures that efficiency is maintained while providing a safer working environment for operators. It demonstrates Greenwood's commitment to operational excellence and user safety.
Greenwood Magnetics - Single Row Easy-Clean Grid Box
The Greenwood Single Row Easy-Clean Grid Box is an inline magnetic separator specifically designed for use in gravity feed chutes. It serves the essential function of extracting ferrous contaminants from powder or granular materials during processing, ensuring product purity. Crafted from stainless steel, this separator's flanged housing simplifies installation. A key feature is its ease of maintenance; by removing the drawer, powerful rare earth magnets are exposed, allowing any retained debris to fall away for hassle-free cleaning. Another advantage is the flexibility it offers, with design variants available such as options with angle deflectors to improve material flow or versions with dual parallel drawers for simpler handling. An application of this model was its provision to a major international food producer, equipped to filter loose tea with a processing speed of 5tph. Constructed to stringent food industry standards, the device includes a perspex inspection window and safety switches, and its internal welds are meticulously finished to prevent contamination risks.
Greenwood Magnetics - Double Row Easy Clean Magnetic Grid Box for Ferrous Particle Extraction
The Greenwood Double Row Easy-Clean Magnetic Grid Box is an efficient inline magnetic separator designed for use in gravity feed chutes. It is particularly effective in the extraction of ferrous particles from powder or granular materials in processing environments. This unit, constructed from stainless steel, is equipped with a flanged housing for straightforward installation. The double row design arranges magnetic grids alternately, enhancing the capture of ferrous contaminants. The cleaning process is straightforward: remove the quick-release door, extract the grids, and remove the magnetic tubes. Contaminants are easily disposed of as they fall freely from the grids. Some models feature adjustable magnetic tubes, allowing users to modify both the number of tubes and intervals between them, catering to varying product sizes and flow rates. This adjustable model has been pressure tested to 6 bar and is operable up to 120°C, highlighting its versatility and robustness in various industrial applications.
