Griffco Valve Inc. products

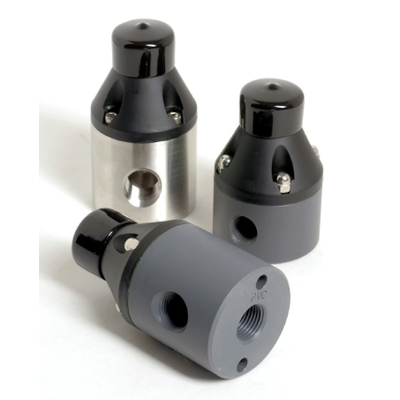

Griffco M-Series diaphragm low-flow pressure relief valves are pump system valves designed to protect chemical feed systems from over pressure damage caused by defective equipment or a blockage in the chemical feed line. Robust construction ensures reliability in the rigorous service of municipal and industrial applications. Also known as bypass valves.

Griffco G-Series back pressure valves are designed to enhance the performance of chemical feed systems by applying a continuous back pressure to the chemical feed pump, while also acting as an anti-siphon valve. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.

Griffco High-Flow diaphragm back pressure valves are designed to enhance the performance of chemical feed systems by applying a continuous back pressure to the chemical feed pump, while also acting as an anti-syphon valve. Larger orifice size makes the valves ideal for use with higher viscosity fluids.

Griffco BPMP-Series diaphragm back pressure valves are designed to enhance the performance of chemical feed systems by applying a continuous back pressure to the chemical feed pump, while also acting as an anti-syphon valve. Robust construction ensures reliability in the rigorous service of municipal and industrial applications. Wetted materials include: 316 SS, A20, Hast. C, and Titanium. Available sizes: 1⁄4″ – 1″. Also known as medium pressure anti-siphon valves.

Griffco M-Series diaphragm back pressure valves are designed to protect chemical feed systems from over pressure damage caused by defective equipment or a blockage in the chemical feed line. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.

Griffco G-Series diaphragm flanged back pressure valves with solid PTFE flanges are designed to enhance the performance of chemical feed systems by applying a continuous back pressure to the chemical feed pump, while also acting as an anti-siphon valve. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.

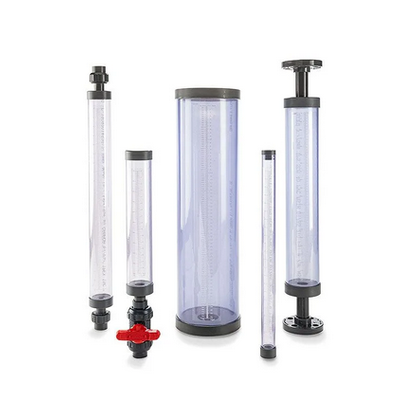

Griffco PVC Calibration Cylinders and Borosilicate Glass Columns are designed to enhance the performance of a chemical feed system by providing a verification of the flow rate of the chemical feed pump. Griffco offers a wide range of calibration column sizes and material options that work in many different applications.

Griffco injection valves (injection quills) are designed to ensure that chemical feed systems inject into the center of a process stream for better mixing and to prevent corrosion along the process pipe. The check valve prevents the process fluid from going back up the chemical line. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.
