GroPoint - by RioT Technology Corp. products

Data Loggers / Handhelds

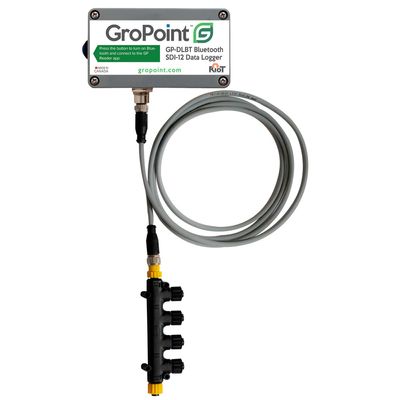

GroPoint - GP-BTDL Bluetooth Data Logger Kit

This kit will allow you to connect four SDI-12 Sensors. To connect eight sensors, you will need an additional M12 Male to Female Cable and 4-Port Expansion Bar, as well as a 2-Port Expansion Bar. Sensors must terminate in an M12 connector. This kit uses the free GP Reader Android App. The free GP Reader app (available for Android devices only) is used to check current conditions, download data and set up the sensor sampling interval (from one minute to 12 hours). With the app open on your smartphone, simply push the button on the GP-BTDL Bluetooth SDI-12 Data Logger to wake it up and automatically establish a wireless connection. Tap the Download button in the app to download all logged data. You can also check the current battery level of the Bluetooth Data Logger.

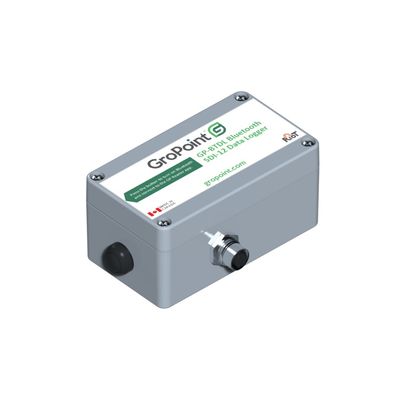

GroPoint - GP-BTDL Bluetooth Datalogger

The GP-BTDL Bluetooth SDI-12 Data Logger is wireless data logger that allows you to retrieve data through your Android device. It is left on site to reliably collect data from your GroPoint Soil Sensors or other SDI-12 sensors, allowing you to access the data when convenient. Our data logger will collect and store up to 4MB of environmental data, such as soil moisture, temperature, EC and more. The free GP Reader app (available for Android devices only) is used to check current conditions, download data and set up the sensor sampling interval (from one minute to 12 hours). With the app open on your smartphone, simply push the button on the GP-BTDL Bluetooth SDI-12 Data Logger to wake it up and automatically establish a wireless connection. Tap the Download button in the app to download all logged data. You can also check the current battery level of the Bluetooth Data Logger.

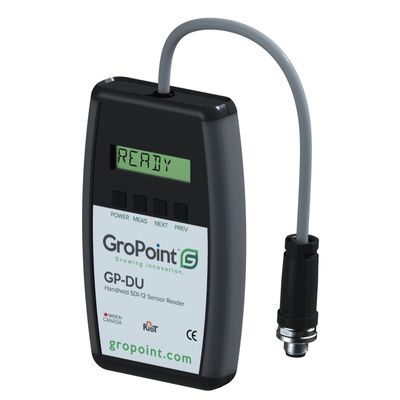

GroPoint - Handheld Sensor Reader

The GP-DU handheld reader gives immediate readings of current measurement conditions from GroPoint soil probes. It also allows testing of individual sensors to troubleshoot when the sensors are part of a larger system. It features a large display window in a robust weather resistant casing with a 3 pin EN3 connector. The GP-DU reads data from analog sensors and displays the volumetric moisture content as a percentage. The GP-DU SDI-12 is capable of reading all GroPoint SDI-12 sensors.

Wireless Telemetry Products - Orbit Data Uplink Products

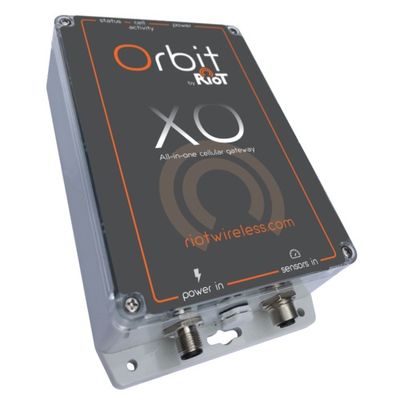

Orbit - All-In-One Cellular Gateway

Xo is a complete monitoring station platform. It includes all hardware, software and services needed for data acquisition, cloud-based data storage, viewing and analysis. It makes any sensor data easily accessible and the station remotely configurable. Just add sensors.

Orbit - All-In-One Cellular Gateway + SDI-12 LPWAN Gateway

Xo is a complete monitoring station platform. It includes all hardware, software and services needed for data acquisition and cloud-based data storage, viewing and analysis. In addition, it also features Radius LPWAN (Low-Power, Wide-Area Network) technology, functioning as a Radius Gateway in an SDI-12 wireless network. The Orbit Xo Radius will collect data from sensors directly connected to it and act as a data hub for all SDI-12 sensors (connected to Radius Motes) in an LPWAN network. All data collected is automatically forwarded to the cloud via a cellular connection. This eliminates the need to buy both a Gateway for your LPWAN network and a separate cellular uplink.

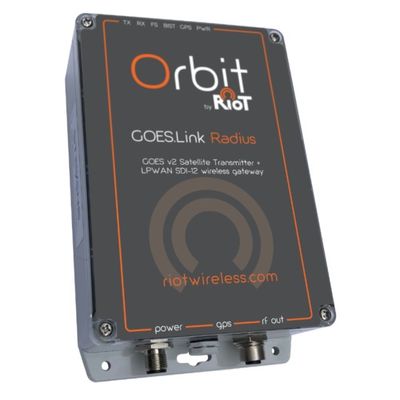

Orbit - GOES-Based Uplink and LPWAN Gateway Device

Orbit GOES.Link Radius is a GOES-based uplink and LPWAN gateway in one device. It includes all hardware (external battery pack not included), software and services needed for data acquisition and transmittal to cloud-based data storage via the GOES network, plus viewing and analysis. It also features Radius LPWAN technology, functioning as a Radius Gateway in an SDI-12 wireless network. Orbit GOES.Link Radius is a 300 or 1200 baud GOES transmitter that sends data via the GOES Data Collection System (DCS). The Orbit Xo Radius will both collect data from sensors connected to it, act as a data hub for all SDI-12 sensors (connected to TITAN Radius Motes), in an LPWAN network and automatically forward all data to the cloud via GOES. This eliminates the need to buy both a Gateway for your LPWAN network and a separate GOES uplink.
