Guangzhou Bacclean Tech Co., Ltd products

Modular Cleanroom lets you build an economical cleanroom (clean booth) in nearly any office or production space in just a few days. All steel frame supports ceiling grid, flexible vinyl strip shields, fluorescent lighting and fan/filter units to meet cleanliness requirements from ISO 5 – 8(clean booth). Clean booth Shields are made of static-dissipative PVC or Acrylic Sheet to control electro-static discharge.

It uses imported electronic components, so it has high performance and uses good sealing materials to ensure high internal sealing properties. Adopt the filtering system of primary level and advanced level,Efficiency is above 99.99%,Equipped with large air volume and low noise fan to ensure the wind speed at the outlet is above 26m/s.

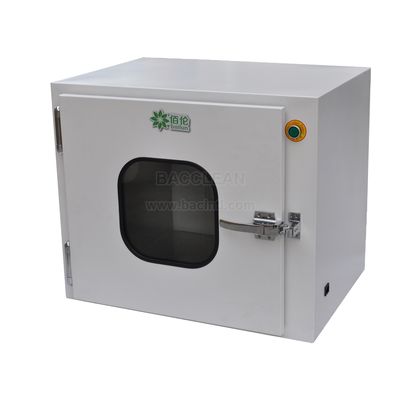

Pass box is a kind of assistant equipment for clean room.It is mainly used to pass the small articles between clean room and unclean room or two clean rooms.Because of interlocking system,it can reduce the cross pollution.

Designed specifically for use in industrial and commercial heating, ventilation and air conditioning systems as well as central ventilation and air conditioning systems for clean rooms and cleanrooms

Pleated panel air filters are designed for use in air filtration systems and equipment, as stand alone basic efficiency products or as pre-filters to higher efficiency bag, rigid box or cell type filter. Media bonded to expanded metal support grid create one of the most rigid filters of its type in the industry. The media pack, comprised of 100% polypropylene fibers, is bonded to the inside perimeter of the enclosure frame by a moisture resistant adhesive,providing a continuous and positives.

Plate type dust filter for high volume, heat resistance or less 300 ? or 170 ? or less and framework for aluminum alloy, stainless steel, galvanized sheet.

Applying ultrasonically weld to composite three layers of filter media together. The first pre filter fiber layer catches biggest dust in the air. The thin fiber catches smaller dust. The outer is the protective layer. The reasonable design guarantees the fine performance and prolong the service time. The excellent ultrasonically weld technology avoid the air flow leakage resulted from wind pressure. The separation layers with insulation strip avoids the adhesion between bags, decreases the resistance and enlarges the dust volume.

The high efficiency filter can be widely used in optical electronic, LED liquid crystal manufacturing, bio-pharmaceuticals, precision instruments, food and beverage, pcb printing and other industries dust-free purification plant air conditioning terminal air supply.

As a result of the brittleness of glass fiber paper, so in the use and installation should first consider not to contact sharp objects and repeated rubbing, secondly, glass fiber paper should be used in contact with water or other corrosive liquid as far as possible, so as not to affect its normal use. Clean plant must have good cleaning equipment. Thirdly, the reasonable use of coarse, medium and high efficiency filter ensures that each filter does not bear heavy dust load. Visual inspection shall be carried out before installation to check whether the appearance of filter paper and filter is damaged, and the sealing condition shall be tested after installation to strictly detect leakage.

V-bank air filters provide close to 90% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide between 80% and 85% efficiency for filtering particles between 1 And 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and between 35% and 50% efficiency for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze Nuclei, insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 11 V-bank air filters.
