22 products found
Gutermann AG Products
-
Water Network Monitoring
Permanent (or fixed) network monitoring means deploying sensors (loggers) permanently in your water distribution network. The sensors continuously collect information about the pipe network and automatically send leak alarms to your control center for actioning. The systems can be standalone with their own radio transmission network (see ZONESCAN NBIOT or HISCAN below) or integrated into exisiting transmission infrastructure such as major AMI networks (see ZONESCAN AMI below).
-

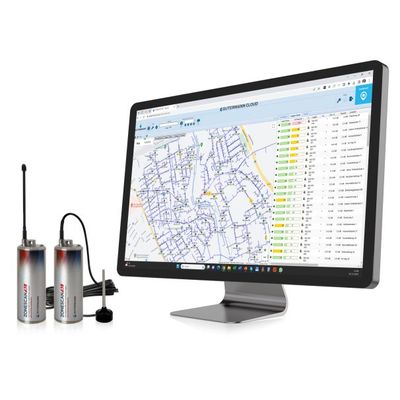

ZoneScan Alpha - Permanent Network Water Monitoring System for Water Loss Management System
More and more smart cities install ZoneScan Alpha as their all-in-one intelligent water loss management system to permanently and sustainably reduce Non-Revenue Water. Once installed, the system will automatically notify you of every leak in the monitored pipe network and at the same time give you exact locations of every leak. The software will then assist you in managing the validation and repair works, and keep track of all historical events to ...
-
ZONESCAN - Model NB-IOT - Correlating IOT Leak Logger
Correlating leak noise logger for permanent monitoring of water distribution mains using automatic NB-IoT cellular data upload to a cloud ...
-
Aclara Star ZoneScan - Model AMI - Integrated Leak Detection System
The GUTERMANN AMI leak detection technology combines the strengths of leak-detection technology from GUTERMANN and established two-way fixed network AMI technology from partnering AMI companies (currently Aclara and Birdz), yielding a more powerful, efficient method of detecting water main leaks. Deployed at regular intervals throughout the water pipeline network (attached to valves via the integrated magnetic base), the ZONESCAN AMI loggers monitor ...
-
HISCAN - Permanent Trunk Main Monitoring System
A permanently installed leak monitoring system for trunk mains that is both very sensitive (using correlating hydrophone sensors) and at the same time able to work independently for at least 5 years, using solar power for its data gateways. The data is sent to the GUTERMANN CLOUD allowing utilities to pinpoint leaks and investigate them ...
-
Correlating Radio Logger
The correlating sensors from GUTERMANN are arguably the most advanced, robust and best performing on the market. They record the sound frequency spectrum and allow to correlate between the different loggers in the kit. You can (i) avoid false positives by filtering out non-leak noise sources, and (ii) pinpoint the exact location of leaks using correlation and cross-correlation techniques between loggers. There are three standard applications for the correlating sensors: Lift & Shift mode to find quiet leaks or perform sectoral overnight leakage surveys to log the constant ambient noise levels and identify and pinpoint leaks. Drive-by mode for permanent or periodical deployment and daily to weekly collection of the data in a drive-by survey. On-site leak detection during the day without logging noise levels but with correlation and automated spectrum analysis for effective leak pinpointing (mainly MULTISCAN).
-
ZoneScan - Model 820 - Correlating Radio Logger
The ZoneScan 820 is easily the most advanced, robust and best performing logger on the market. It is the only radio logger worldwide that is capable not only of logging noise levels, but also record the sound frequency spectrum, and to provide enough sound detail to correlate. It is therefore the only radio logger that will allow you to (i) avoid false positives by filtering out non-leak noise sources, and (ii) pinpoint the exact location of leaks ...
-
MultiScan - Multi-Point Water Leak Correlator
The highly sensitive multi-point correlator for maxiumum convenience: Small, stainless steel sensor-transmitters, attractive Android app with fully automatic filtering and GPS-based automated geolocation and mapping for cable-free handling on your Smartphone or ...
-
Water Leak Noise Correlators
Correlators are powerful electronic devices to locate leaks on pressured pipes, where the rough location of the leak is unknown and the distances relatively high. Two (or more) sensors are placed in contact with the pipe on both sides of the suspected leak. Those sensors record and transmit the sound by radio to the processing unit. Mathematical algorythms are used to determine the exact location of certain noise profiles (such as hissing leak sound) on the pipe, by correlating the noises that reach both sensors and measuring the difference it takes to travel on the pipe from the leak location to each sensor. GUTERMANN has been among the first manufacturers of leak locating correlators worldwide. The AquaScan correlator range is characterised by world-leading sensors, compact and attractive design, robustness on the field and sophisticated filtering capabilities.
-

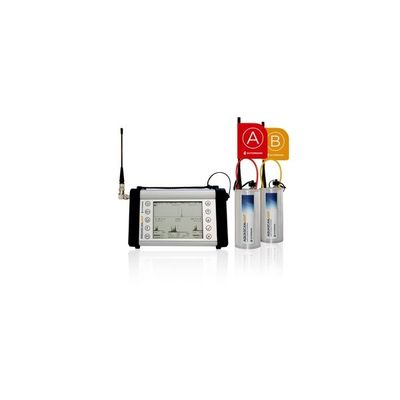

AquaScan - Model 610 - Water Leak Noise Correlator
The AquaScan 610 is the world’s first cordless leak noise correlator and provides highly accurate and error-free leak pinpointing. The combination of high performance, elegant design, compact size and advanced features make this the most popular leak noise correlator available. The AquaScan 610 is highly accurate and extremely portable. It is designed to withstand daily use, rain or shine, in outdoor ...
-
AquaScan - Model TM2 - Trunk Main & Plastic Pipe Correlator
Powerful high-end touchscreen correlator designed specifically to find leaks on large diameter pipes over long distances – intelligent, non-intrusive and user-friendly. This correlator is currently the most advanced correlator in the ...
-

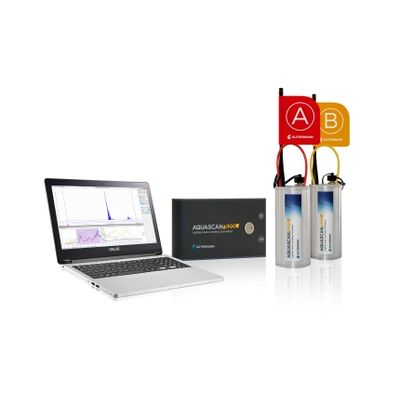

AquaScan - Model 620L - Laptop Water Leak Locating Correlator
Ultra-compact and extremely easy to use – the AQUASCAN 620L laptop correlator utilizing both the legendary, industry-leading cordless AQUASCAN sensor-transmitters and the powerful “Auto Filter” ...
-
EasyScan - All-In-One Water Leak Locator and Correlator
The All-in-one smart leak locator that is both leak noise correlator, acoustic ground microphone and electronic listening stick in one single powerful product. It is operated by smartphone or tablet, using a great-looking, very intuitive and easy-to-use Android app. With EASYSCAN even beginners get good results. With just a few quick manipulations you transform your EASYSCAN from the correlation function to the listening function. As a ...
-
Acoustic Microphones
Acoustic Microphones are used to detect and amplify the noise created by leaks in pressurised pipes. They are an essential part of any plumber`s and leak detection team`s operating equipment and are used to easily pinpoint exact locations of suspected leaks (last step in the generally applicable process Locate-Localise-Pinpoint). As part of the Intelligent Water Loss Management process, Acoustic Microphones are used to VALIDATE already pinpointed leak locations. The two basic options to use as microphone are the listening stick or the ground microphone.
-

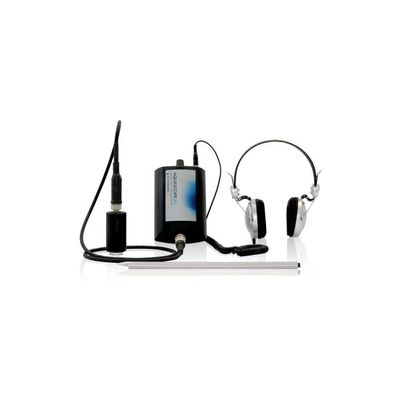

AquaScope - Model 2 - Acoustic Listening Device
The acoustic microphone any leak technician should have in the glove-box: light-weight, compact and with a pure and clear sound amplification. And it's very cost-effective ...
-

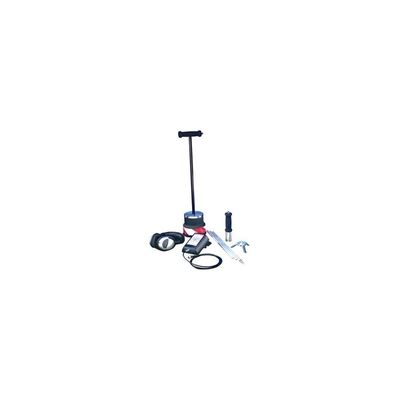

AquaScope - Model 3 - Universal Leak Locator & Acoustic Listening Device
The AQUASCOPE 3 is a high performance water leak detector designed for use by leakage technicians and plumbers to find leaks on water mains, water services and in residential or commercial properties. The acoustic microphone in this water leak detector amplifies the mechanical vibration created when water in a pressurized system exits the pipe wall. With an electronic listening stick, magnet, tripod microphone and ground microphone the operator can use ...
-
AquaScope - Model 550 - Acoustic Water Leak Detection Kit
The AquaScope 550 is the world’s first and only acoustic leak detector to have 'frequency shifting' to assist in the pinpointing of low frequency leaks found in PVC and large diameter pipes. Furthermore, the AquaScope 550 possesses impressive amplification capabilities. The professional leak hunter will therefore find even difficult leaks that are undetectable with other equipment. With a host of other advanced features, this must be the acoustic ...
-
Pipe and Valve Locator
Our range of pipe and valve locators are designed to be simple and intuitive to use and economical, and is therefore the ideal addition to any plumber`s and leak leakage operator`s equipment range.
-
MagScan - Model 100 - Ferrous Metal Detector
The MagScan 100 detects the magnetic field of a ferromagnetic object. It responds to the difference in magnetic fields. This provides a stronger signal at the edge of the pipe, valve or cover enabling the operator to mark the shape of the object located. When tracing a ferrous pipe, the covered valve can be located as an increase in signal ...
-
AquaTracer - Model 300 - Multi-Frequency Pipe and Cable Locator
The AQUATRACER 300 is a simple and accurate line and cable locator that was designed for those committed to protecting buried ...
-
EasyScan Product Family
-
EasyScan - Water Leak Detection Basic Kits
This is the basic kit that you need for all of your leak detection activities. However, it requires you to already possess an Android device including the in-ear headphones that come with ...
-
EasyScan - Water Leak Detection Full Kits
EASYSCAN Full Kit, including the basic kit, professional around-the-ear headphones and a pre-installed Android ...
-
EasyScan - Sensor Red
EASYSCAN Sensor (red label and handle), used for correlation and acoustic listening. Weight 0,50 KG. Delivery time within 2 - 4 ...
-
EasyScan - Sensor Blue
EASYSCAN Sensor (blue label and handle), used for correlation and acoustic listening. Weight 0,50 KG. Delivery time within 2 - 4 ...
-
EasyScan - Link
For the communication between the sensors and your Android device. Chargeable with a USB cable. Weight 0,10 KG. Delivery time within 2 - 4 ...
-
EasyClip - Cord with Magnet
2 meter long cord with custom-design clip and magnet for the deployment of sensors in deeper chambers. Weight 0,20 KG. Delivery time within 2 ...
-
EasyScan - Carry Case
With enough space for your entire kit, including external headphones and an Android device. Weight 4,50 KG. Delivery time within 2 ...
