GW Sprinkler A/S products

Water Mist

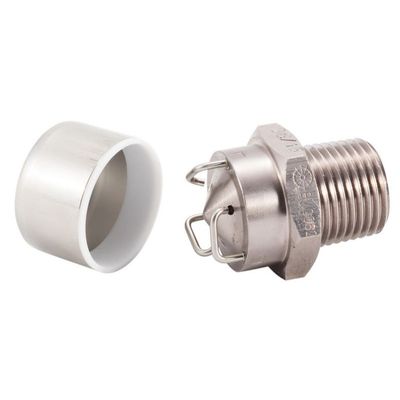

GW - Model M5 - Water Mist Nozzle K-5, Low Pressure, Non-Automatic

Low Pressure Water Mist Fire protection nozzle. FM tested with Bureau Veritas MED approval, CCS, Lloyds`s Register, ClassNK, US Coast Guard and RINA. The GW M5 is a compact low pressure water mist nozzle specifically developed for use in total and local
protection water mist fire extinguishing systems – both for marine and land based applications.

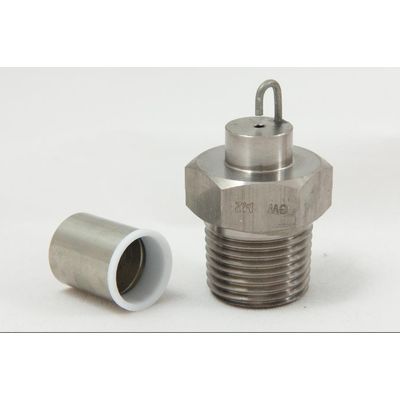

GW - Model M2 - Water Mist Nozzle K-2, Low Pressure, Non-Automatic

The GW M2 Nozzles are water mist nozzles for protection of local applications such as in duct systems and engine bilges. The nozzles are suitable for spraying water mist, as well as water mist with foam enhancement. GW Sprinkler recommends the use of Angus Tridol AFFF foam when enhancement is necessary. Nozzles may be installed in the horizontal and pendent vertical positions.

GW - Sprinkler System Water Quality Recommendation

The durability and operational reliability of any automatic sprinkler system is highly dependent on its design for purpose and continued external and internal maintenance & testing. The real thread and “silent killer” of a pressurized wet sprinkler system is normally invisible to the eye, as it is located inside the pipe work. It is the highly complex interaction between chemical, physical and biological elements in – and in contact with, the sprinkler water.

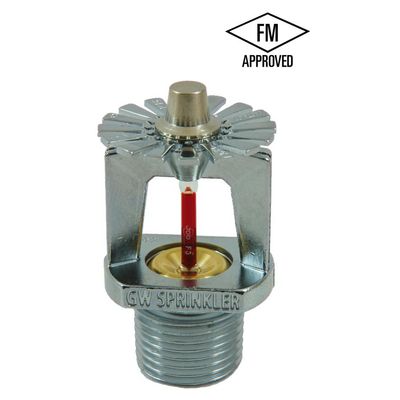

GW - Model LoFlow K-15 - Water Mist Sprinkler Low Pressure, Automatic

Water Pressure: 6 - 16 bar / Ceiling height: up to 5m / Nominal temp. rating: 68°C (155F) / Enclosure area: unrestricted / Spacing: max. 3,5m / Application density: min. 3mm/m2 / Non-storage occupancies: residential, offices, meeting rooms, hotels, museums, restaurant seating areas, schools / For additional information see: Products - Sprinklers Heads - LoFlow Nozzles.
