GWC Italia SpA products

Offshore

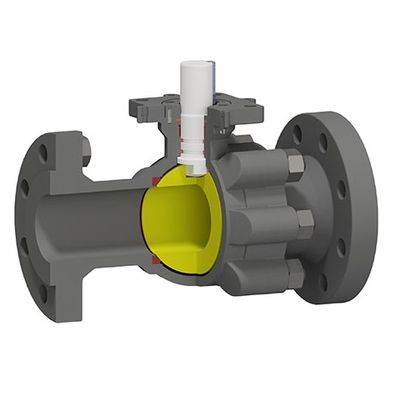

GWC Italia - Floating Ball Valve

Side-Entry (split-body) two or three pieces bolted construction, Seat-supported ball, renewable seats, Full or Reduced Bore, Bi-Directional. Production range: API 6D, Size: ½” – 6” (DN15-DN150), Class: ANSI 150 to 2500, Services: General / Sour / Corrosive / Erosive / Slurry, Standard Temperature: -46 °C / 220 °C (-50 °F / 430 °F).

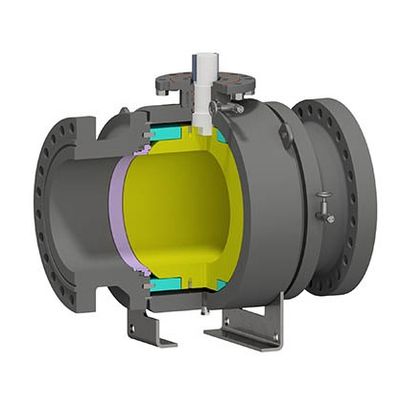

GWC Italia - Trunnion Mounted Ball Valve Side Entry Bolted Body

Side-Entry (split-body) two or three pieces bolted construction, Trunnion-supported, Floating seats spring energized, Full or Reduced Bore, Bi-Directional. Production range: API 6D: Size: ½” – 64” (DN15-DN1600, Class: ANSI 150 to 2500. API 6A: Size: 1 13/16” – 13 1/16”, Class: API 2000 to 15000 psi. Services: General / Sour / Corrosive / Erosive. Standard Temperature: -46 °C / 220 °C (-50 °F / 430 °F) .

Onshore

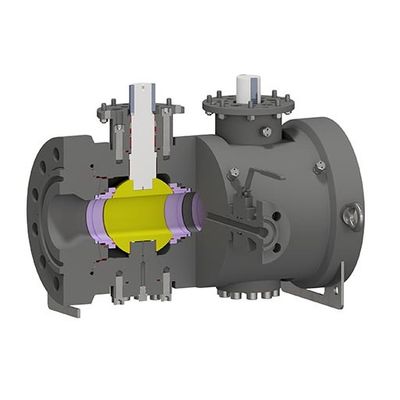

GWC Italia - Trunnion Mounted Side Entry Twin Balls Valve

Side-Entry (split-body) three-piece standard bolted body or compact design construction, Trunnion-supported, Floating seats spring energized, Full or Reduced Bore, Bi-Directional. Different Type of bleed connection is available: plugged, complete with blind flange or with needle / floating / trunnion valve.

GWC Italia - Trunnion Mounted Ball Valve Side Entry - High Temperature

Side-Entry (split-body) two- or three-piece bolted construction, Trunnion-supported, Floating seats spring energized, Full or Reduced Bore, Bi-Directional. Production range: API 6D: Size: ½” – 64” (DN15-DN1600). Class: ANSI 150 to 2500. Services: General / Sour / Corrosive. Standard Temperature: from 230 °C up to 450 °C (450 °F / 840 °F).

LNG

GWC Italia Cryogenic - Floating Ball Valve

Side-Entry (split-body) two or three pieces bolted construction, Seat-supported Ball, renewable seats, Full or Reduced Bore, Bi-Directional. Production range: API 6D. Size: ½” – 6” (DN15-DN150). Class: ANSI 150 to 2500. Services: LT / Cryogenic. Standard Temperature: -196 °C / -50 °C (-320 °F / -60 °F).

GWC Italia Cryogenic - Trunnion Mounted Ball Valve Side Entry Bolted Body

Side-Entry (split-body) two or three pieces bolted construction, Trunnion-supported, Floating seats spring energized, Full or Reduced Bore, Bi-Directional. Production range: API 6D. Size: ½” – 64” (DN15-DN1600). Class: ANSI 150 to 2500. Services: LT / Cryogenic. Standard Temperature: -196 °C / -50 °C (-320 °F / -60 °F) .

Pipeline

GWC Italia - Trunnion Mounted Ball Valve Top Entry

Top-Entry, Trunnion-supported, Floating seats spring energized, Full or Reduced Bore, Bi-Directional. Production range: API 6D:. Size: ½” – 64” (DN15-DN1600). Class: ANSI 150 to 2500. Services: General / Sour / Corrosive / Erosive. Standard Temperature: -46 °C / 220 °C (-50 °F / 430 °F).

Subsea

GWC Italia - Trunnion Mounted Ball Valve Side Entry Welded Body

Welded Body, Trunnion-supported, Floating seats spring energized, Full or Reduced Bore, Bi-Directional. Water depth: down to 3000 m (10000 ft). Production range: API 6DSS:. Size: ½” – 64” (DN15-DN1600). Class: ANSI 150 to 2500. API 6A: Size: 1” 13/16 – 13 1/16”. Class: API 2000 to 15000 psi. Services: General / Sour / Corrosive.

Distribution

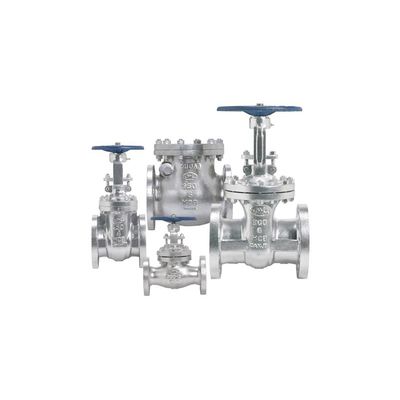

GWC Italia - Cast Gate, Globe and Check Valve

GWC Italia produces a wide variety of Cast Steel Gate, Globe, and Check valves. Production range:. API 600 and API 603. ASME B16.34. Size: 2” – 60”. Class: ANSI 150 to 1500. Services: General. Standard Temperature: -46 °C / 426 °C (-50 °F / 800 °F).

GWC Italia - Forged Gate, Globe and Check

GWC Italia produces a wide variety of Forged Steel Gate, Globe, and Check valves. Production range: API 602 / BS 5352. ASME B16.34. Size: ¼” – 2”. Class: ANSI 150 to 2500. Services: General. Standard Temperature: -46 °C / 426 °C (-50 °F / 800 °F).
