Haacon Hebetechnik GmbH products

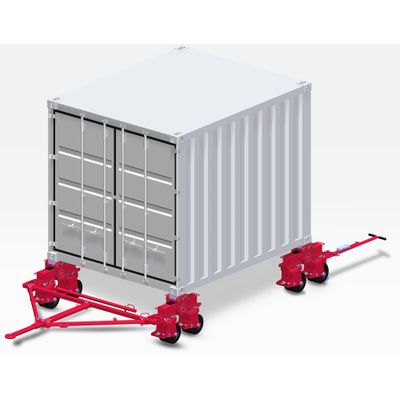

Container roller set for moving containers. Steering rod for moving the rollers when dismantled. With manual brake
Roller set consists of towing bar, eight steering wheels, can be locked in direction of movement. Can roll at up to 6 km/h on paved ground.

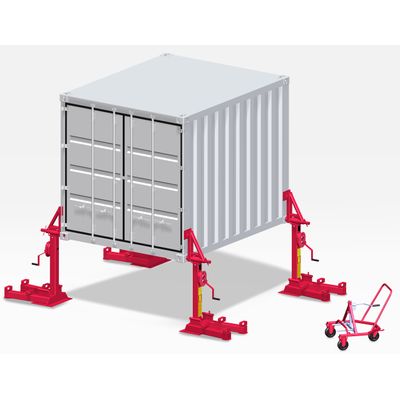

Jacks for placing standard containers. Container can be manually adjusted to the height of the vehicle. Mounting height min. 1,200 mm, max. 1,700 mm. Design in line with German Social Accident Insurance provision 54 (Deutsche Gesetzliche Unfallversicherung, DGUV V 54) (winches, lifting and pulling equipment). Spindle equipped with double safety nut. Easy to mount (time needed: approx. 8 mins). Easy and safe to use with low-speed and high-speed gear.

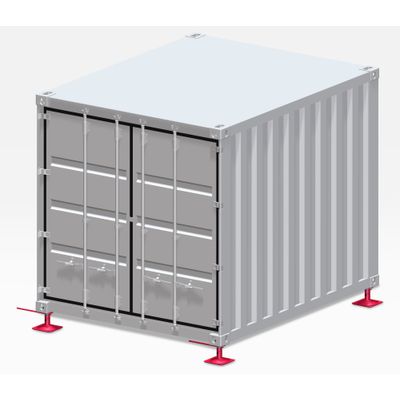

Manually operated screw jack elements for placing and aligning containers. Manual operation with lever. Mounted in the lower openings of the bottom corners of the container.

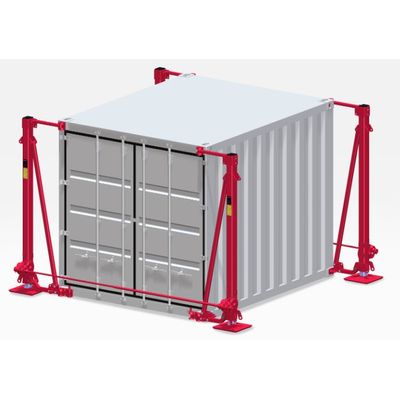

Lifting device for lifting, aligning and lowering containers. For lowering containers from lorries up to a height of 1,750 mm. System can be swivelled along either the short or long side. Does not need be disassembled during transport. Can be adjusted to any container height between 2,438 mm (< 8’) and 2,895 mm (9.5’).

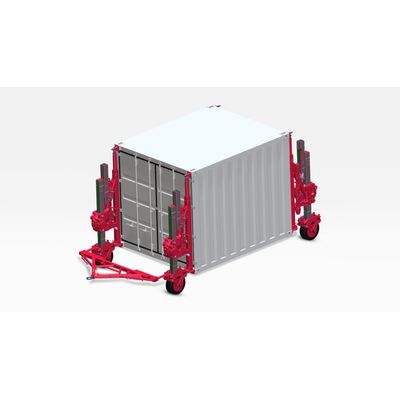

Lifting device for lifting, aligning, lowering and rolling containers. All-round application (lowering, loading aircraft, loading lorries, rolling). For most transport aircrafts. Does not need be disassembled during transport (lorries, aircraft). System can be swivelled along the short side. Space-saving, solid-rubber tyres allow for rolling up to 6 km/h. For lowering containers from lorries up to a height of 1,750 mm. Manual brake.

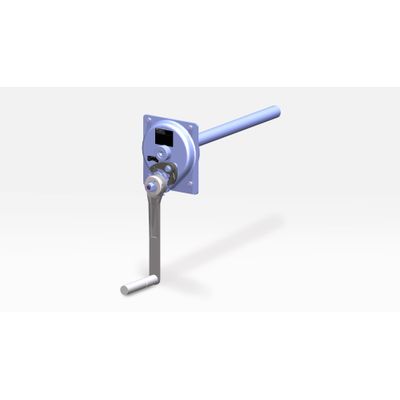

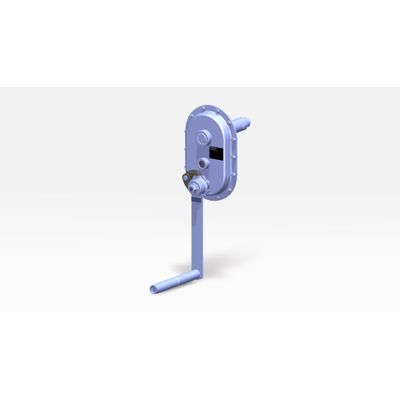

Can be motor operated for short periods at input speeds of up to 100 rpm; Durable and reliable; No maintenance required; Security crank with load-dependent backstop; Can also come without backstop when used for shifting loads; Can also come with:; One or multiple cable reels; Chain wheels for roller chains; Chain sprockets for link chains; Crank extensions; Crank shaft extension.

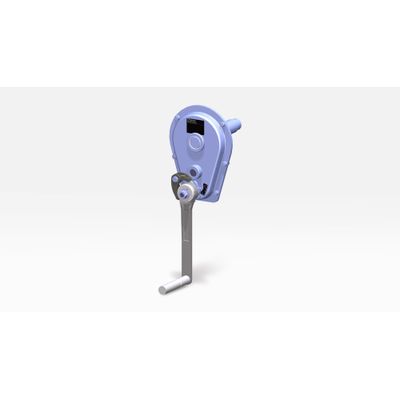

Can be motor operated for short periods at input speeds of up to 100 rpm; Durable and reliable; No maintenance required; Security crank with load-dependent backstop; Can also come without backstop when used for shifting loads; Can also come with:; One or multiple cable reels; Chain wheels for roller chains; Chain sprockets for link chains; Crank extensions; Crank shaft extension.

Can be motor operated for short periods at input speeds of up to 100 rpm; Durable and reliable; No maintenance required; Security crank with load-dependent backstop; Can also come without backstop when used for shifting loads; Can also come with:; One or multiple cable reels; Chain wheels for roller chains; Chain sprockets for link chains; Crank extensions; Crank shaft extension.

Can be motor operated for short periods at input speeds of up to 100 rpm; Durable and reliable; No maintenance required; Security crank with load-dependent backstop; Can also come without backstop when used for shifting loads; Can also come with:; One or multiple cable reels; Chain wheels for roller chains; Chain sprockets for link chains; Crank extensions; Crank shaft extension

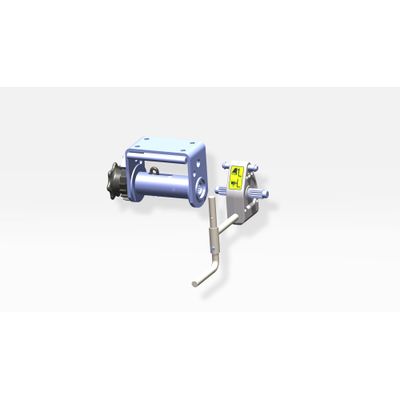

Easy to use, durable lashing winch: Can be used to tension either strap or wire cable; Operates with a recoil-free detachable gear; Meets the requirements of the German employer’s liability insurance association when used with detachable gear type 4504; Permitted capacity 2 t; Pre-tension force 0.5 t; Strap capacity 3 m, or cable capacity 9 m
