HABAGROUP products

Standard sizes: 4000x2450x2480 mm, 6000x2450x2480 mm, 8000x2450x2480 mm. Cover and wall details 2 mm, bottom construction of 3 mm lamina. Bars for replaceable cages equipped with control rolls and hooks. 1000/1500 liters drain basin, double bottom. Doors solutions are customized due to requirements. Gas sealed lighting (EX-class). Two ventilation holes. Sandblasted, priming and painting, customized colour tones.

Length 4300 mm, width 2300 mm, height 2300 mm, Hook-and-wire systems, Refrigeration, Floor heating.

Bottom 4 mm ja sides 3 mm metal sheet. Frame profiles (U-profile 100x50x4 mm). Hook and wire systems. Back rolls. Douple door in the back. Hooks on side for cover. Sandblasted (Sa 2,5), primer and coverpainted. Open containers can also be “tailored” according to customers wishes.

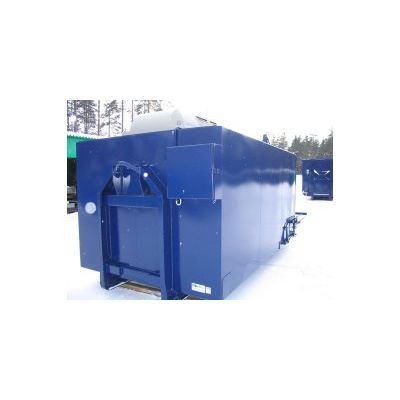

Equipment: leveling screw D 250 ,motor 1,5 kW, 400 V, 28 r/min,, demountable body , CL-bridges and -hooks, HL-hook (1570 mm), top hung door drain, P-seal, rear roller or rollers corner, bottom PL 3, sides PL 3, sides, inlets 16 A, Electrification multi-polar opposite side of the tank, full tank indicator, the inductive limit, surface treatment: Sand blasting to Sa 2.5, two-component paint, dry film N120 pm.

Standard sizes: 4000x2450x2480 mm, 6000x2450x2480 mm, 8000x2450x2480 mm. Cover and wall details 2 mm, bottom construction of 3 mm lamina. Bars for replaceable cages equipped with control rolls and hooks. Doors solutions are customized due to requirements. Two ventilation holes. Sandblasted, priming and painting, customized colour tones.
