Design features; Solid one-piece high torque durable stem. Tight stem-to-ball directional engagement, ensures relief hole alignment. Strict materials and manufacturing tolerances control.

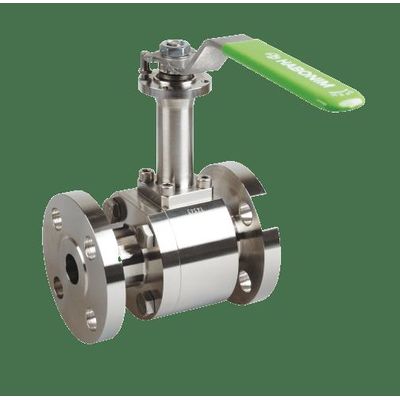

The Cryogenic Floating Ball Valve 3 Piece BD Series from Habonim features full bidirectional full differential pressure (ΔP) capability. It has a solid one-piece high torque durable stem that ensures tight stem-to-ball directional engagement with precise relief hole alignment, supported by strict materials and manufacturing tolerances.

Design features; 3-piece robust, forged valve. Double block. Blowout-proof robust stem design. Bi-directional as standard. API 6D certified (API monogram #6D-1278). Fire safe designed to API 6FA, API 607, ISO 10497. Comply with NACE MR0175/ISO 15156. Corrosion resistant low friction bearings. Double Piston Effect or Single Piston Effect seat design. Mixed SPE and DPE seats design also available. Integral top-works direct mounting pad to ISO 5211. 6” and larger valves are equipped with lifting lugs. 8” and larger valves can be equipped with vent and drain valves (Optional). Antistatic grounding between ball, stem & body.

V-ball or Shaped seat (V or slot) for control applications. Standard or full port design, forged or cast. ANSI B16.34 Class 900 (wall thickness), size ¼”-2” (DN8-DN50). ANSI B16.34 Class 400 (wall thickness), size 2 ½”-6” (DN65-DN150).

Complies with the ASME BPE standard for applications in which cleanability and drainability are essential for product quality. Patented HermetiX™ stem seal, made from FDA-approved polymer materials. The valve port diameter is identical to the tube inner diameter so that no expansion or contraction can take place inside the system, resulting in full drainage and zero traces that could cause contamination. ” To provide superior welding quality, to avoid rouging on austenitic stainless steel surfaces, and corrosion attack on welding areas. Metal parts are defined, as standard, with low ferrite and controlled sulfur”. Upon request, a forged 316L stainless steel material with ferrite content less than 1% is also available.

Double Block & Blead (DB&B) / Dual-Safe valve optimal design. Casted body for optimized cost affectivity. Incorporates two main isolation valves and one bleed valve in a single body construction. Lowest possible number of potential leakage points, reduces overall system size and weight by integrating valves, piping, and fittings into one compact design.

Ultra High-Pressure Hydrogen floating Ball Valve is specifically designed for high-flow welded lines. with a Size Range of 1⁄2”–2” (DN15–DN50) rated for 600 bar / 8,750 psi, (Class #3500).

The COMPACT actuator is a quarter-turn rack & pinion pneumatic actuator that doubles the torque of standard pneumatic actuators. The superior performance is achieved by Habonim’s four pinion design, which generates torque around a centrally located pinion. This translates into double the power for the same size actuator or half the size for the same amount.

Habonim patent innovative four-piston scotch-yoke design combines the benefits of high-power scotch-yoke mechanism to generate maximal power and high Start and End torques, where most valves require it and the balance and compactivity of the four-piston mechanism to provide fast and efficient operation with minimal maintenance. The patent four-piston scotch-yoke pneumatic actuator provides almost 100% higher power-to-size ratio. In other words, a comparable traditional high-torque scotch-yoke actuator will be twice as big as a Power CompAct unit. The Power CompAct unit is much faster in opening and closing and uses less compressed air to operate. The evenly balanced forces of the four pistons and short travel (short piston) provides un-matching high cycle long life without maintenance for hundreds of thousands of operations.
