HammerHead Trenchless Equipment products

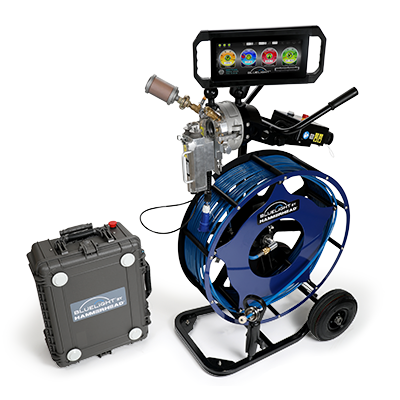

The Bluelight LED CIPP lining system for laterals and small drain pipes is the most advanced light-curing system available. The innovative technology empowers CIPP lining pros by alleviating the time pressures of other CIPP systems. The specially formulated resin only cures under light in the “blue” wavelength, giving installers a significantly longer working time between liner wet-out and curing. Once installed, the automated curing system pulls the LED light head through the liner, curing the resin almost instantly — up to five times faster than other methods. Instead of waiting hours for the liner to cure, a 50-foot sewer line could be fully cured in under 12 minutes. With 500 systems in the field and millions of feet installed worldwide, the Bluelight LED lining system is a proven solution for lateral rehab.

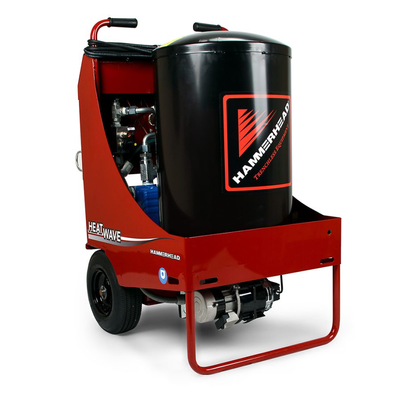

Dealing with the extra hoses and components of some hot-water curing systems can be cumbersome and awkward. That’s why we designed the HammerHead® HeatWave—an all-in-one, easy-to-use hot-water curing system. The boiler, pump and all controls are fully integrated in a single unit. That means you have less to tote around, fewer hoses to hook up, and less to clutter up your worksite. Its smaller footprint also makes it easier to work in tighter spaces. For working with larger diameter liners, the unit features larger hoses than previous systems for faster fills and more efficient, even heating in longer runs up to 12 inches in diameter.

Hammerhead Trenchless carries seven types of liners for CIPP applications to best meet customer needs, unique projects and curing methods. Our Liners are constructed of the highest quality material for reliable and consistent installation. Our liner and resin systems are compliant with industry installation standards including ASTM F1216 – Standard practice for rehabilitation of existing pipelines and conduits by the inversion and curing of resin-impregnated tube, Uniform Plumbing Code (UPC), International Plumbing Code (IPC), NSF International (NSF14), IAPMO, and ICC-ES.f time and unlike lining the new pipe can be the same size or even a size larger that the old pipe.

Only HammerHead Trenchless makes it possible for contractors and self-performing organizations to prepare and impregnate resins into CIPP liners right at the jobsite. Time-tested with computerized quality assurance controls front and center, the exclusive Mobile Wet Out system is custom-built to address each customer’s unique market conditions for efficient and highly successful installations. Designed with all of the required equipment securely built on-board, the mobile resin impregnation station includes automated pumps, ratio and mixing systems, a vacuum impregnation system, an integrated calibration roller, and temperature control systems to ensure optimum conditions for successful applications. HammerHead Trenchless Mobile Wet Out system is QA/QC compliant to ASTM F2994, and is the efficient alternative to other solutions that require transport of liners from centrally-located impregnation plants.

RS BlueLine is the tightest-fitting CIPP system available for potable water mains and transmission lines. It is certified to meet NSF/ANSI/CAN 61, the first and only CIPP system to gain FM Approval for compliance with FM Class 1616, and is approved by BNQ for potable water applications. Custom-engineered to fully restore structural integrity, and ensure long-term performance, RS BlueLine is tested and designed in accordance with AWWA, ASTM, and ISO standards for pressure pipe linings.  It reduces water loss and improves the operating conditions of deteriorated pressure pipes at a lower cost and with considerably less disruption than traditional dig-and-replace methods.

RS CityLiner rehabilitates gravity sanitary and storm sewer pipe and culverts ranging in diameter from 6 to 48 inches. With unparalleled advantages, including styrene-free resins for safe, environmentally friendly installations, RS CityLiner makes it possible to prepare and install CIPP liners right on the job site with confidence of continued quality every time.

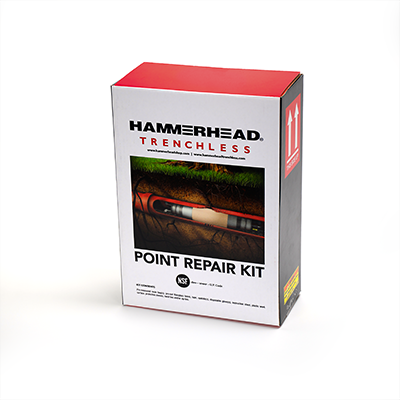

Point repair from HammerHead Trenchless is an appropriate solution for a wide variety of issues seen in different types of pipes. It can be used in conjunction with CIPP installations or as stand-alone application over offset joints, pipe separations and damaged siphons. It can also be used to seal off interior drops and cap off unwanted laterals. It can even replace missing sections of pipe, repair 90° bends, bridge transitions or add extensions to a culvert.

Combined with Picote’s powerful Miller machines, the full line of tooling obliterates roots and hard debris from even damaged or cracked pipes.

At the heart of the Picote system are the powerful Miller units. Five models ranging from the compact and lightweight Micro-Miller for short shots in 2.00–4.00″ pipes to the Heavy Duty Maxi-Miller Power Plus with a 59′ shaft and the capability to work in pipes as small as 4.00″ and as large as 12.00″ in diameter. These Millers can power the award winning Smart Cutters, Twisters, liner removers and pipe cutters in lining operations and can also operate the powerful range of grinding chains for highly efficient drain cleaning.

Cut back on costly mistakes with the pipe cutter. For trimming back liner that has overshot into the main during the lining process.
