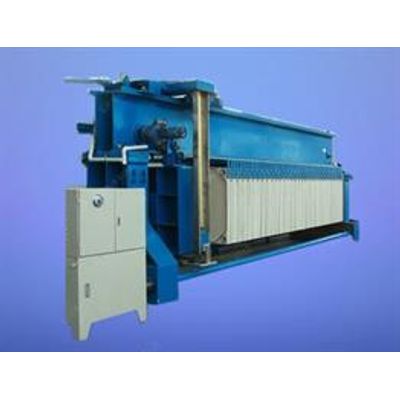

FLYING Fully Automatic Filter Press is the high performance solution for producing high dry solids filter cake, side bar or overhead beam design, With Plate Shifting & Plate Shaker For Auto cake Discharge Along With PLC Based Electrical Control Panel & Pneumatically Operated Control Valves, Flow Sensor and Hydraulically Operated Bomb Door (Drip Tray). FLYING filter press considered all automatic factors for your sludge project, In Filter Press Initial filtration process takes place with the push of a button. All processes (filtration-squeezing-washing cake or air blow cake-discharge cake) will be finished automatic by control center of filter press.

Auto filter press with Filter Cloth Tilting Device for high viscosity cake, high efficiency.

Auto filter press with Cloth Washing Device, washing water recyclable.

FLYING recessed Chamberfilter press is mostly used in solid/liquid separation system. Flying sidebar filter press is the cost-effective solution for producing high dry filter cake, being used in widely industrial applications, FLYING filter press especially useful in the dewatering of acid and alkali wastewater Advantage: low moisture content of filter cake, high efficiency filtration.

FLYING plate and frame filter press are dewatering machines which utilize pressure 5bar typically to remove the liquid from a liquid-solid slurry. They provide a simple reliable method of tight compaction pressure to all filter plates and frames to dewater solids. Simply install filter cloth on plate, easy discharge cake. Plate and frame filter press be used to low pressure industries.

Material of plate and frame is cast iron, used to high temperature industrial oil

FLYING PP Mixed Pack Membrane Filter Press is available for all chemical and environmental protection applications with plate sizes up to 2000 mm. Max. Squeezing pressure upto16 bar. After filtration process, Air pressing or water pressing can be selected for squeezing filter plate with pressure 10-16bar,This process is designed for reducing moisture content in cake and increase solid rate by 8%-35%.

FLYING Rubber Mixed Pack Membrane Filter Press is available forfood and environmental protection applications with plate sizes up to 1500 mm. Max. Squeezing pressure up to 8-10bar. After filtration process, Air pressing squeezing filter plate with Max. Pressure 8-10bar, can get less moisture cake.

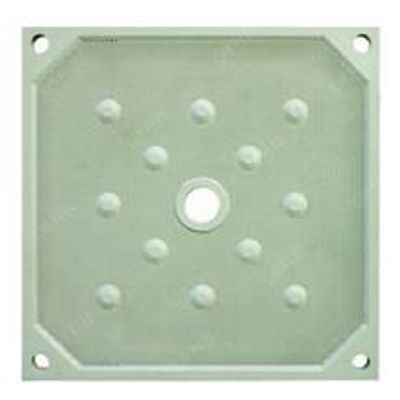

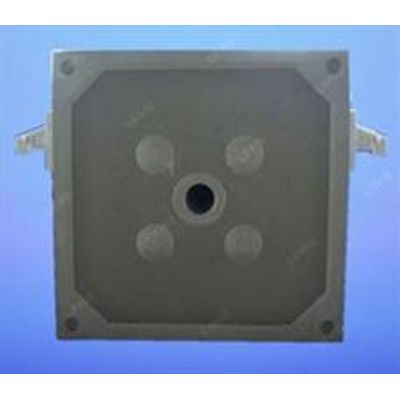

FLYING Recessed chamber filter plates can be designed to 6, 8, 10, 12, and 16 bar operation pressure in a recessed plate filter press. They are available for sidebar or overhead press designs. Hangers or side handles can be fixed. Full range of plate size: 250mm to 2.0»2.0m. Non gasket plates and plates with gasket are available, open filtrate and closed filtrate are available

FLYING Recessed Chamber Filter Plate-Closed Filtrate: collect filtrate by outlet corner holes of plates. Holes in these corners form a pipe or tube and collect the filtrate which discharged to a manifold at the feed end of the filter press. Spigots may be used to examine the filtrate externally.
