Hansa-TMP Group products

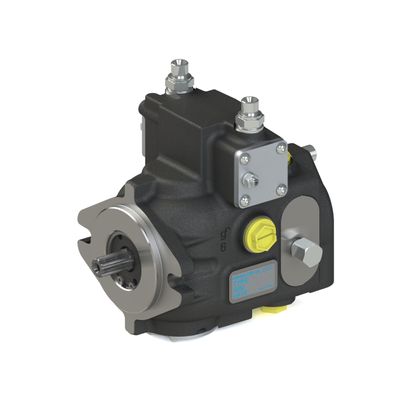

TPV 1100 pump from the HANSA-TMP Manufacturing line is a variable displacement axial piston pump with swashplate, for closed loop hydrostatic transmission. With the aim of improving and ensuring optimal performance to our customers, we have updated our axial piston pumps. In fact, the current TPV 1100 represents the technical update of the previous pump TPV 1000. The new version guarantees greater resistance on fatigue test of pump bodies, better accuracy in the neutral position of the pump and increased performance.

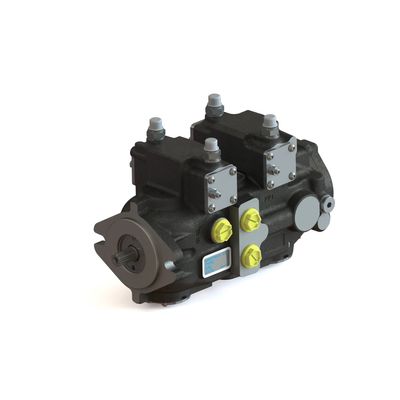

The TPV 1300 BTB pump from the HANSA-TMP Manufacturing line is a variable displacement compact tandem axial piston pump, with swashplate system, for closed loop hydrostatic transmission, technical update of the previous TPVT 1200 pump.

Characteristics: Low noise. Low pulsation. Long service life. High power density.

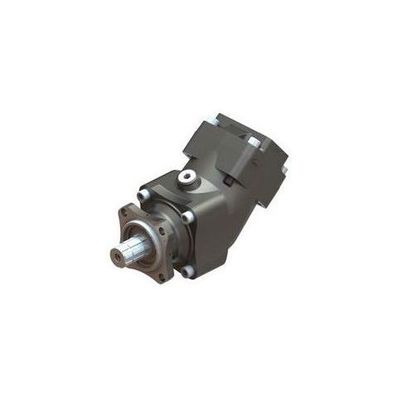

TPB is a series of fixed displacement axial piston pumps for mobile and stationary vehicles. The pump is equipped with well-dimensioned double tapered roller bearings, which allow high shaft loads and provide excellent speed characteristics. Externally drained, the pump is speed-optimised and therefore supplied for either left (L) or right-hand (R) rotation direction.

Hand pumps for mobile, industrial and wind power applications. Double-acting pumps with or without tank. Single-acting pumps with or without tank. Foot-lever pumps. Pumps with differential function. Pump with 2-speed function. Air-hydraulic pumps. Accessories. 9 standard solutions are available.

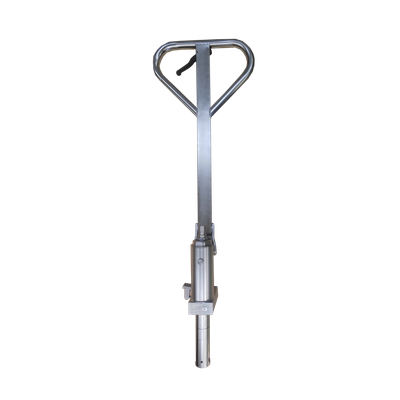

Pallet truck pumps as a guarantee for durable solutions and time-proof trucks. Pump unit completely made of stainless steel. Optimum corrosion protection, long service life. Solid hydraulic pump, welded construction, avoiding scaling.

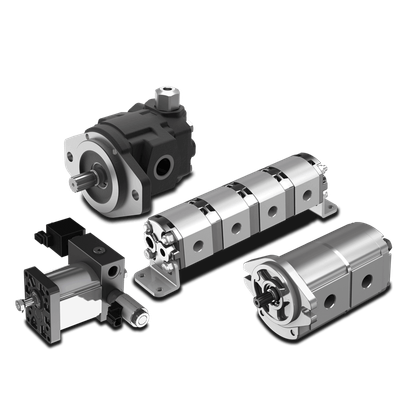

Availability of new range of pumps with aluminium body and aluminium or cast iron flanges, in single or multiple pump configurations. Thanks to the new oversized shaft, these pumps are particularly suitable for all those applications where traditional aluminium pumps are used at the limit of their performance, such as on mobile operating machines with heavy duty cycles due to pressure or mechanical stress. In addition, the new modular construction provides greater versatility, sharing possible configurations and allowing new options.

Displacement: From 2,5 to 1.400 cm3/n

Pressure: 2,5 MPa

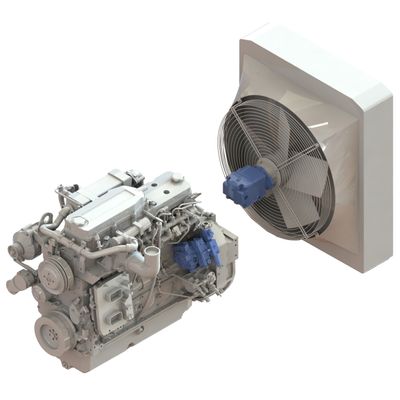

Integrated solution for the Fan Drive system: a closed circuit pump with a specific control designed for the operation of cooling fans combined with a piston motor for the rotation of the fan.
