Haviland Drainage Products Co products

Haviland’s flexible dual-wall pipe, SmoothFLEX, is changing the market and how you install agricultural mains. Extra crew members, equipment, and trench boxes are no longer needed. Installation time is cut in half! All while offering the same drainage rates as our Smooth Flow sticks.

Smooth Flow pipe is a corrugated polyethylene pipe with a smooth interior. This combination provides a lightweight, durable product for storm sewers, culverts, and many other applications where high strength and maximum flow are essential. Haviland Smooth Flow pipe is available with plain ends from 8″ to 30″ and with belled ends from 4″ to 60″. Smooth Flow pipe conforms to AASHTO M-252 and AASHTO M-294 specifications. An installation guide is available specifically for Smooth Flow pipe on our website. As shown below, 4″ through 6″ pipe can be ordered in pallets.

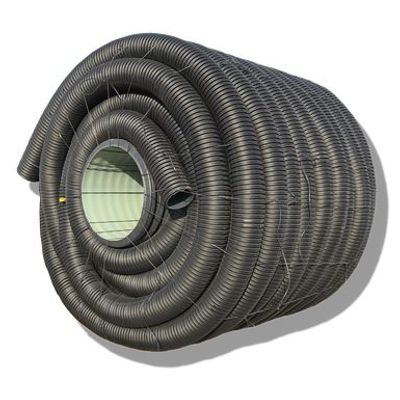

Haviland Drainage’s flexible corrugated pipe is flexible enough to meet the needs of both the Heavy Duty pipe & Tubing market as well as the Agricultural Market.

ri-Wall pipe is a three-layered high-density polyethylene sewer and drain pipe. With a welded bell for a consistent fit, the product is truly revolutionary. It provides better impact resistance, added strength and is easier to handle than conventional sewer drain pipe. Consisting of a white exterior and black interior, tri-wall pipe meets or exceeds ASTM F-810 when installing in accordance to ASTM F-481. It is available in 3″, 4″ and 6″ diameter, in 10′ lengths and bundled in pallets. Thirty pallets can be shipped per truckload on 53′ trailers. 4″ 2 Hole Tri-Wall is available with 5/8″ holes upon special request.

Many federal regulations require end sections to have low slopes and safety bars. Haviland safety slope end sections, used with corrugated metal pipe, meet or exceed these specifications.

22½° Elbow 4", 6", 8", 10", 12", 15", 18", 24", 30", 36", 42", 48", 60"

Smooth Flow fittings are fabricated from Smooth Flow pipe to maintain good flow characteristics through the fitting. Available with plain or belled ends, Smooth Flow fittings can be custom-fabricated to satisfy the most unique applications. Call you Haviland sales representative to check the price and availability of custom-made items.

Double Tee 4", 6", 8", 10", 12", 15", 18, 24", 30", 36", 42" 48" 60".

Smooth Flow fittings are fabricated from Smooth Flow pipe to maintain good flow characteristics through the fitting. Available with plain or belled ends, Smooth Flow fittings can be custom-fabricated to satisfy the most unique applications. Call you Haviland sales representative to check the price and availability of custom-made items.

Subsurface detention/retention systems are often used as a more efficient use of land, rather than the use of a pond. A pond takes up a large amount of space, rending it unusable for anything other than stormwater storage, whereas the use of a subsurface system leaves the surface land available to be developed. Often times retention/detention ponds have many pitfalls such as safety concerns, stagnate water, lack of available ground space for development, etc. The use of a subsurface system alleviates most or all of those concerns.
