Hayes Fusion products

Hayes specializes in providing world-class butt fusion machines that weld thermoplastic pipes such as polyethylene HDPE and polypropylene PPR. This in turn, gives consumers high quality, exceptional durability and commercial-grade butt fusion machines that deliver a superior weld with ease of use, which will maximize thermoplastic pipe fusion procedures while reducing costs. We offer a variety of options for each pipe size that you need to weld. We have a specialized team with knowledge in both pipe fusion and maintenance to offer full support. We inspect all our products before shipping to ensure quality control. We stand behind our product line through our manufacture warranty policy. DVS/ISO STANDARD LOW PRESSURE FUSION EQUIPMENT. Our welding equipment TURBO-LP Series is designed and manufactured according to the European international standard DVS/ISO 2207 low pressure fusion pipe.

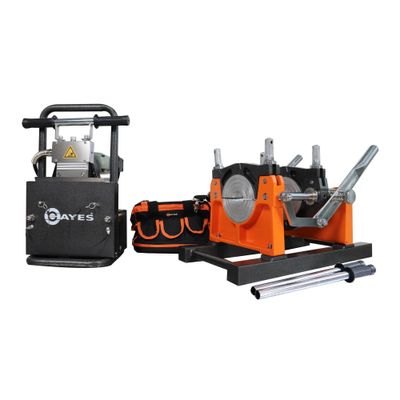

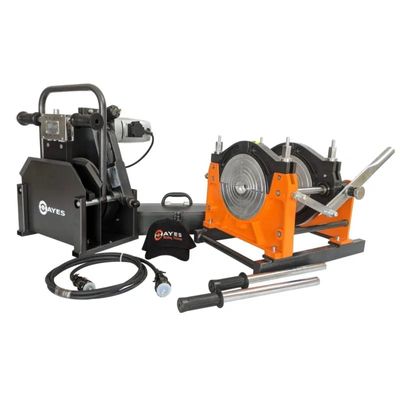

Working Range: 2″-8″ | Voltage: 220 V 50/60 Hz. Power: 3100 watts | Working temperature: 0-518 °F. Display: Fahrenheit | Machine weight: 172 lbs. Shipping info: 221 lbs. (42” x 22” x 30”). Delivery: Ships in 2 business days. | Item location: SC, USA. Our Manual butt fusion machine pipe welding COMBAT PROX series butt fusion machines will give many years of service if operation procedures and maintenance are followed carefully and correctly.

Working Range: 2″-6″ | Voltage: 110 V 50/60 Hz. Power: 1700 watts | Working temperature: 0-518 °F. Display: Fahrenheit | Machine weight: 132 lbs. Shipping info: 168 lbs. (42” x 20” x 27”). Delivery: Ships in 2 business days. | Item location: SC, USA. Our Manual butt fusion machine pipe welding COMBAT PROX series butt fusion machines will give many years of service if operation procedures and maintenance are followed carefully and correctly.

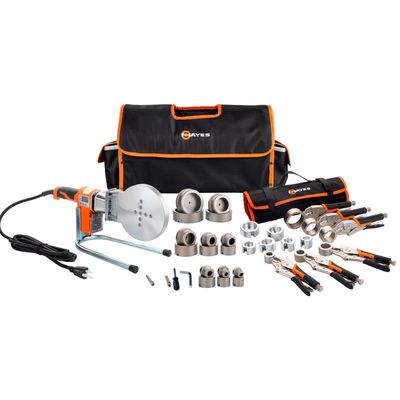

The HY4PRO-X-KIT is a 110V thermo-plastic pipe welder kit suitable for socket fusing pipes and fittings made of HDPE (Polyethylene), PPR (Polypropylene), PB (Polybutene) and PVDF. 110V – Fahrenheit Display – IPS Inches adapters. Ready to weld thermoplastic pipe from 1/2 in. IPS to 4 in. IPS. The pipe welding tool has a heat resistant aluminum plate with internal controller and thermocouple sensor that is programmed, adjusted and sealed for the most stable temperature. The pipe welding tool has a digital Fahrenheit screen with adjustable temperature control, ergonomic handle and voltage protection. All our socket/heating adapters (Male and Female) go through a 5-stage process, which includes sandblasting the pure aluminum, then a base coat and followed by 3 layers of teflon to reduce polymer adhesion. This all increases the durability and longevity for a quality product.

The HY2PRO-X-KIT is a 110V thermo-plastic pipe welder kit suitable for socket fusing pipes and fittings made of HDPE (Polyethylene), PPR (Polypropylene), PB (Polybutene) and PVDF. 110V – Fahrenheit Display – IPS Inches adapters. Ready to weld thermoplastic pipe from 1/2 in. IPS to 2 in. IPS. The pipe welding tool has a heat resistant aluminum plate with internal controller and thermocouple sensor that is programmed, adjusted and sealed for the most stable temperature. The pipe welding tool has a digital Fahrenheit screen with adjustable temperature control, ergonomic handle and voltage protection. All our socket/heating adapters (Male and Female) go through a 5-stage process, which includes sandblasting the pure aluminum, then a base coat and followed by 3 layers of teflon to reduce polymer adhesion. This all increases the durability and longevity for a quality product.
