HBD Industries, Inc. products

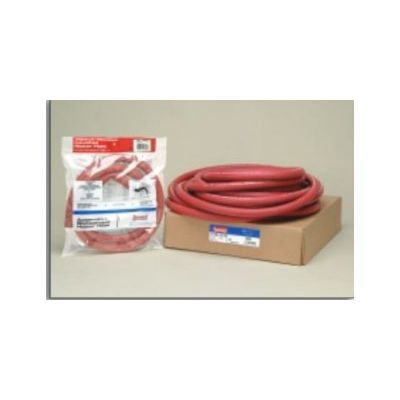

A replacement for hose on most cars and light trucks. This standard grade hose is similar to SAE20R3 for normal duty service. Withstands the abuse of corrosive solutions and additives. Resists weathering to provide a long, trouble-free service life. A blue insulating layer helps to minimize heat loss. Four spiral reinforcement for extra strength.

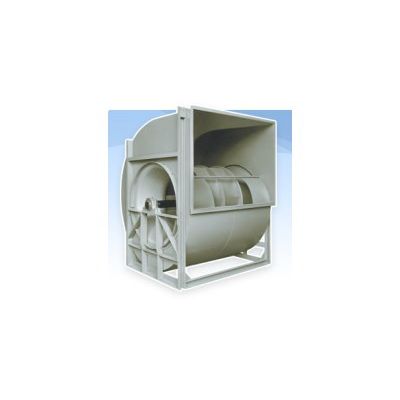

The Peerless Blowers `Power Fixed` nonoverloading blower is built for the many applications required by both commercial and industrial users. The backwardly inclined flat blade construction produces a high efficiency blower ideal for medium and high pressure applications. This highly efficient design provides for extremely quiet operation. Each blower housing is continuously welded for sturdy construction. Only rugged duty cast iron housed bearings are installed in the `Power Fixed` blower. Shafts of nonsulpharized carbon steel are precisely turned, ground and polished for a precision fit. Each wheel is statically and dynamically balanced for optimum trouble-free performance and longevity. The `Power Fixed` non-overloading blower is built with dependability and minimum maintenance in mind.

Peerless Blowers Model `KE` is generally used on small kitchen hoods where grease filters may or may not be installed. They are also used where air contains dirt, lint or foreign material, as the wheel is a self-cleaning type. The KE direct drive blowers are available in 5 sizes ranging from a 7-3/4 ` wheel to a 13 1/2 ` wheel. The CFM range is 93 to 3393 with up to 2 1/4 ` static pressure. The fans have cast aluminum radial blade wheels. The KE direct Drive fans are designed with a heavy-duty housing and base. All fans are available in either clockwise or counterclockwise rotation and the housings are rotatable up to 8 different positions. All of the fans are available with either single or three phase motors in a variety of enclosures. All direct drive radial blade fans are tested in accordance with AMCA codes and standards.

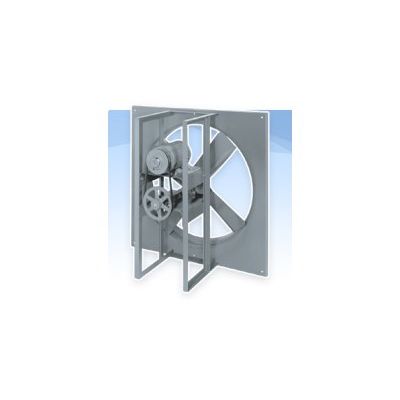

Peerless Blowers propeller fans are used as heavy duty industrial ventilation fans in steel mills, machine shops, packing plants, etc, or in duct installation where static pressure up to 1inch is encountered. The belt drive propellers fans are available in 7 different sizes ranging from an 24` propeller to a 60` propeller. The CFM range is 4800 to 63445 with up to 1 ` static pressure. The propeller fans are constructed with an heavy duty panel and support arms. The propellers are steel. The panel has a deep drawn venturi. All fans are furnished with ball bearings with grease fittings for lubrication. All belt drive fans are furnished with open driproof motors as standard. Totally enclosed motors are also available

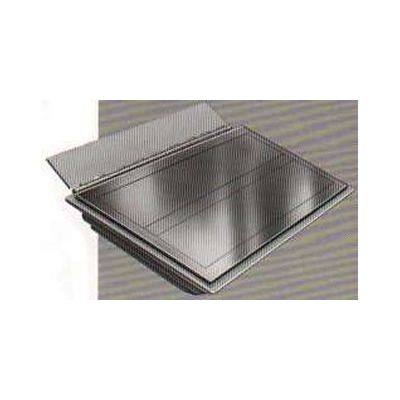

Stearns` Ceramic Single-Gap and Double-Gap Plate Magnets economically trap iron particles in any free-flowing materials on conveyors or in chutes, ducts or spouts. Positive tramp iron removal can be obtained by suspending Stearns permanent plate magnets over chutes, spike apron feeders and belt conveyors. For handling a heavy flow at high speeds, the efficient Stearns Ceramic Two-Stage Plate Magnet Separator removes tramp iron from materials conveyed pneumatically or in free-flowing gravity systems.

Peerless Blowers propeller fans are economical fans used in kitchens, laundries, bakeries, industrial ventilation, equipment cooling, and also farm ventilation. They can be used any place where a smaller amount of ventilations desired. Peerless Blowers offers direct drive propellers fans in 6 different sizes ranging from an 8` propeller to a 20` propeller. The CFM range is 273 to 6200 with up to 3/4` ` static pressure. The propeller fans are constructed with an integral motor-fan guard mounted on a steel panel. The propellers have aluminum bases with steel hubs. All fans come with totally enclosed motors.

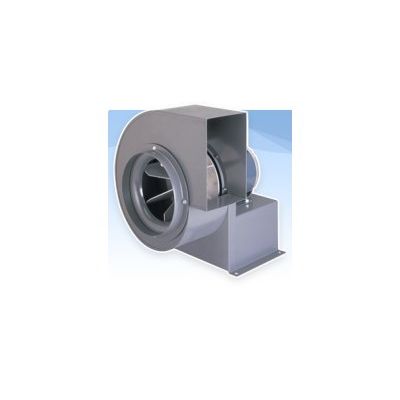

Peerless Blowers Model `PWB` is used in industrial applications for small exhaust systems where air is laden with dust or grit and also for supplying high pressure air for conveying and cooling. The PWB belt drive blowers are available in 5 sizes ranging from a 7-3/4 ` wheel to a 13 1/2 ` wheel. The CFM range is 60 to 2322 with up to 15 ` static pressure. The fans have cast aluminum radial blade wheels. The fans are available in arrangement 10 and have a maximum operating temperature of 180 degrees F. The PWB belt drive fans are designed with a heavy-duty housing and base. All fans are available in either clockwise or counterclockwise rotation and the housings are rotatable up to 8 different positions. All of the fans are available with either single or three phase motors in a variety of enclosures. All direct drive radial blade fans are tested in accordance with AMCA codes and standards.
