Used on H90, Sidewinder models and discontinued H100B, HS-12x16, and Copperhead saw models. Band wheel with the bearing already pressed in. This is the part that should be ordered rather than the band wheel without bearing as shown in parts manuals. For technical information regarding band wheel alignments see instructions on our website under the "Support" tab and "Technical Support Documentation" titled "Horizontal Saws Band Wheel Alignment". Do Not overgrease the fitting on the idle wheel. It utilizes a class 5 sealed bearing and the grease only acts a a barrier to help keep out dust and dirt. In adition to our replacement parts, HE&M Saw also offers a range of other band saw components and accessories, including blades, metal cutting fluids, fluid sump tank treatments, fast acting rust remover, and lubricants. See our extensive line of high quality fluids here.

Part Length Digital Read Out (DRO) (Right Hand). Hand Wheel not included. Set part lengths on H90A-1, H-90A-4, H90A-C, H105A-4, H105A-C, H105LA-4, H105LA-C,  Sidewinder A-1, Sidewinder A-4, Sidewinder A-C, Cyclone A-4, Cyclone A-C and some older discontinued models such as the Twister A, & V100LA-4. For Aluminum handle see part B-009474-000-03-B-000 . Note: on the RH (Right Hand) version the digital numbers decrease when the wheel is turned to the right, the knurled head screw is located on the right side of the counter, and the counter is mounted on the right side of the Index Plate , on the LH (Left Hand) version the numbers increase when the wheel is turned to the right, the knurled head screw is located on the left side of the counter, and the counter is mounted on the left side of the Index Plate.  For LH (Left Hand) version see the part number P-007407-000-00-0-000

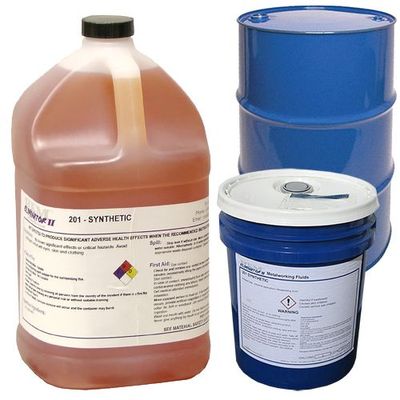

∗ Up to one week manufacturing lead time ∗ 100% Synthetic oil-free formula, Oil Rejecting Formula, Superior resistance to microbial degradation, Leaves minimal residue, Low foaming characteristics, In addition to our Synthetic Cutting Fluid, HE&M Saw also offers a range of other band saw components and accessories, including blades, Benchtop Bandsaws, other metal cutting fluids, fluid sump tank treatments, fast acting rust remover, and lubricants. See our extensive line of high quality fluids here.

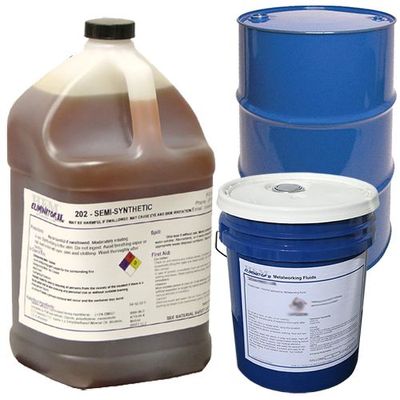

∗ Up to one week manufacturing lead time ∗ Multi-Purpose Heavy Duty Semi-Synthetic formula, Contains no Chlorine, Nitrates, Phemols, DEA, Superior resistance to microbial degradation, Leaves minimal residue, Low foaming characteristics, In addition to our Semi-Synthetic Cutting Fluid, HE&M Saw also offers a range of other band saw components and accessories, including blades, Benchtop Bandsaws, other metal cutting fluids, fluid sump tank treatments, fast acting rust remover, and lubricants. See our extensive line of high quality fluids here.
