Headwall Photonics products

Hyperspectral Sensors

Hyperspec - Hyperspectral Sensors

The newest member of our award-winning sensor family. Was first shown live in our booth at spie photonics west.

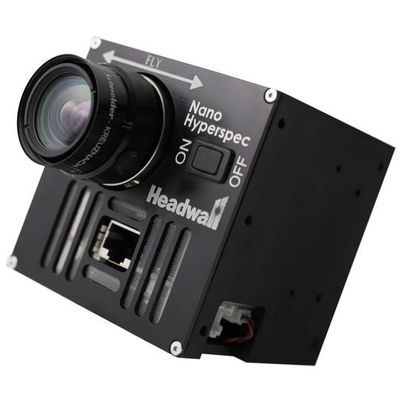

Nano-Hyperspec - Hyperspectral Imaging Sensors

Spectral range 400-1000nm (VNIR). 270 spectral bands. 640 spatial bands. FWHM slit image 6nm. Max frame rate 350Hz
480GB internal data storage. Typical applications: airborne & ground remote sensing.

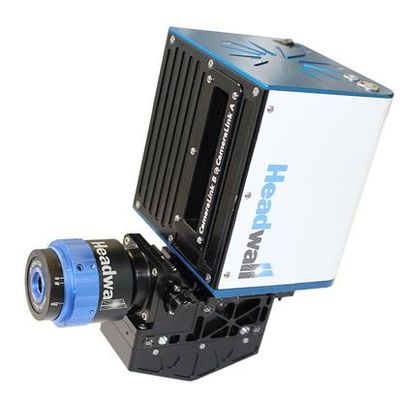

Micro-Hyperspec - Hyperspectral Imaging Sensors

Typical applications: airborne, satellite, and ground remote sensing, advanced machine vision, lab.

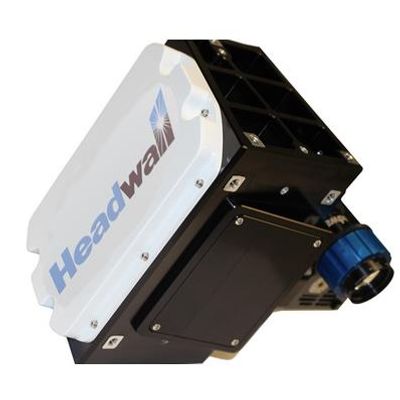

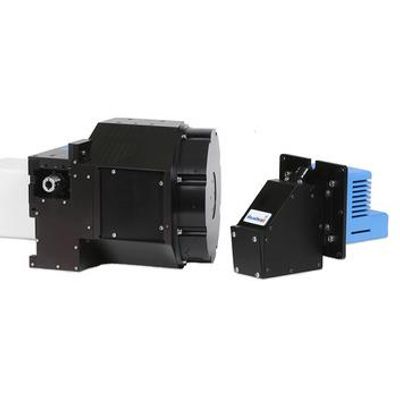

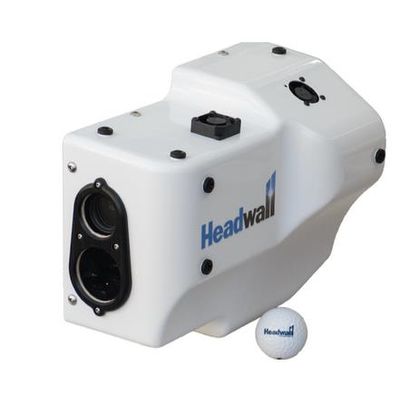

Co-Aligned - Hyperspectral Imaging Sensors

Spectral range: VNIR + SWIR (400-2500nm). Spectral pixels: 270 VNIR; 267 SWIR. Spatial pixels: 640. FWHM slit image: 6nm VNIR, 8nm SWIR. Max frame rate: 350Hz VNIR; 200Hz SWIR. Internal data storage. Typical applications: Airborne and ground remote sensing that require coverage between 400-2500nm.

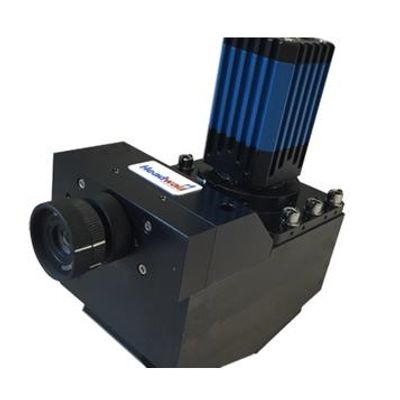

Headwall-Photonics - High-Resolution Chlorophyll Fluorescence Imaging Sensors

Spectral range: 670-780nm. Spectral resolution (FWHM): 0.1 - 0.2nm. SNR 120:1 unbinned. Spectral bands: 2,160. Spatial pixels: 1,600. Typical applications: Remote sensing, particularly environmental monitoring where high-resolution chlorophyll fluorescence measurements are needed.

Hyperspec - Hyperspectral Imaging Sensors

Spectral range 250-500nm. Spectral bands: 409. Spatial pixels: 1,100. Frame rate: 30-50Hz. FWHM slit image: 1.4nm. Typical applications: process monitoring, Lab, scanning kits.

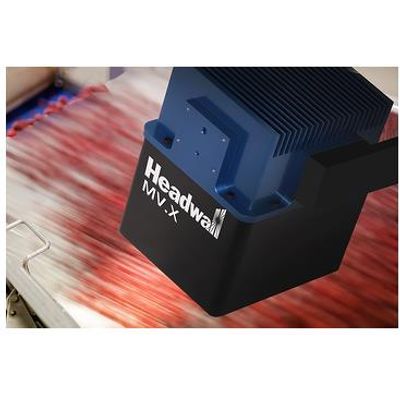

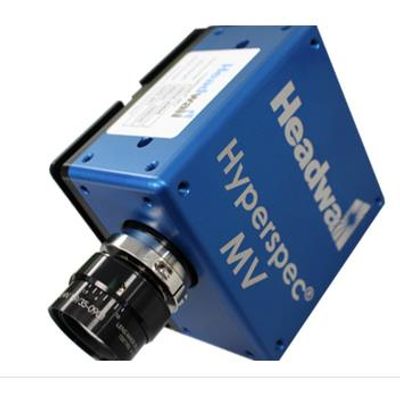

Hyperspec - Hyperspectral Imaging Sensors

Spectral range: 400-1000nm. 270 spectral bands. 640 spatial pixels. Max frame rate: 485Hz. FWHM slit image: 6nm. Typical applications: Advanced machine vision (food inspection & grading, recycling).

Hyperspectral Sensor Drone Integration

Headwall - Unmanned Aerial Vehicles (UAVs)

Unmanned Aerial Vehicles (UAVs) have evolved into the `Go-To` platform for many remote-sensing applications. Headwall`s integrated hyperspectral sensor drones combine our advanced sensor with a choice of GPS/IMU mounted on a high-performance UAV. Drone-mounted LiDAR and a stabilizing gimbal are also available.

Headwall Photonics - Turnkey UAV Package with Hyperspectral Imaging + LiDAR

The Nano HP is a next-generation VNIR hyperspectral imaging sensor with integrated GPS/IMU in a compact, lightweight enclosure. The original Headwall Nano-Hyperspec became the best-selling airborne remote sensing system of its kind for lightweight drones. Whether distinguishing plant species, identifying mineral deposits, or monitoring changes to our environment, we understand the critical role our sensors play in complex and challenging missions. That’s why we offer comprehensive packages that have all the components you need for a successful mission capturing hyperspectral imaging data on a UAV. https://headwallphotonics.com/products/remote-sensing/nano-hp-400-1000nm-hyperspectral-imaging-package/

Raman Spectrometers

Headwall - Raman Spectrometers

Headwall`s Raman spectrometers provide exceptionally high signal-to-noise efficiency and signal throughput. They are based on a patented aberration-corrected, all-reflective design using Headwall`s own diffraction gratings. Aberration-corrected diffractive technology enables the use of large fiber bundles within the spectrometer. Sampling of larger target areas is thus possible while maintaining enhanced signal integrity.
