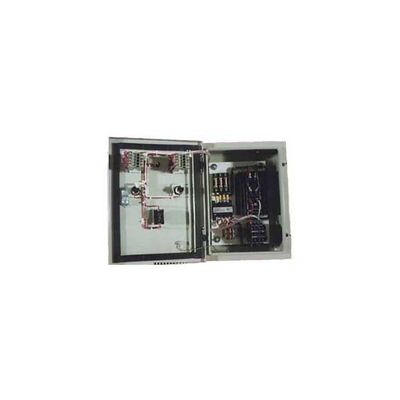

Custom Control Panels for a wide variety of applications are manufactured by Heaters Controls And Sensors. From Custom Control Panels that are needed to operate in 60ºC environments, to laboratory controllers that are to maintain temperatures within +/- 0.01ºC.

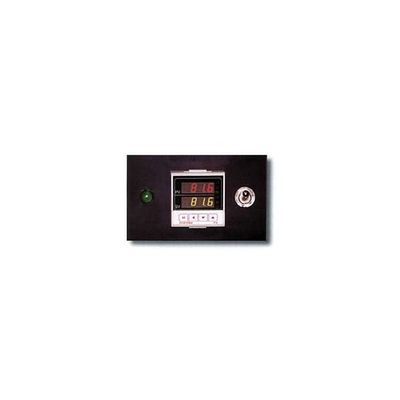

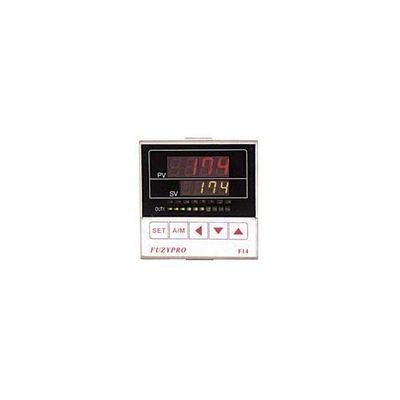

FuzyPro 1/4 DIN Temperature Controller Heat/Cool Controllers can easily be configured to provide precise control. The advanced Smarter Logic `Fuzzy` allows processes to be controlled better than ever before, with virtually no initial overshoot or temperature variations.  As the control detects a process disturbance the fuzzy logic continuous decision making function quickly returns the process value to the setpoint. The large dual displays allow the set point and process value to be visible at all times. In addition self-diagnostic capabilities, sensor linearization and cold junction compensation are all performed by the powerful, single chip microprocessor. The 2` in panel depth is the shortest of any similar function control available.

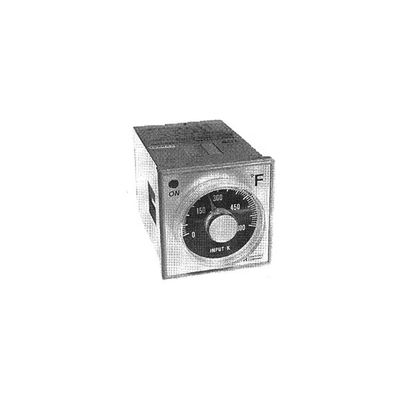

The 1/16 DIN Analog Temperature Controller Solid State Multifunction Timer, is a cost effective product that has excellent application flexibility with 4 operating modes, and sixteen time ranges, that are all selectable from the front panel. This versatile timer has 2 SPDT relays rated at 10 amps 120 volts and is available in 2 models Model D which features a maintained output and model E which has 1 maintained and 1 momentary output.

Field Selectable Input/Output Controller features universal field selectable outputs for the main control output. The main control output can be selected from a relay contact, a voltage pulse, or a 4 to 20 mAmp output. Field Selectable Input/Output Controller also excepts 44 types of thermocouple, RTD, DC voltage and DC current. In addition these controllers can have 2 independent alarm contacts that are programmable to be deviation, process, or set value alarms. The Heater break alarms utilize an external current transformer that monitors the heater current and activates an alarm should the current fall below a threshold value that has been set by the operator. The loop break monitors and protects the entire temperature control system. The loop break alarm will detect Heater Breaks, Thermocouple or RTD failure, short circuits, or the failure of an operating device such as a mechanical relay, Mercury Relay or SSR.

High Current, Large Meters, 10 or 20 Amps. SCR Control 0.5 sec cycle time. 24 VDC, 120, 208, 240 Volts. 1 Phase Operation. Percentage Power Control 0 to 100% from front panel. Heater, Current Indication in 1 amp or 0.1 amp resolution. Soft start ambient to setpoint/ramping setpoint and pretune. Heater Break Alarm or Heater Loss Alarm & Indication option. Optional Heater Break or Deviation Buzzer for Fault conditions. Various Temperature Sensors, inputs RTD or Thermocouple, 0.1º. mVolts or mAmps, input -1999 to 9999 decimal as required. Programmable Controller option 4 recipes. 16 steps Ramp Soak. Continuous Auto Tuning fro tighter control at all temperatures.

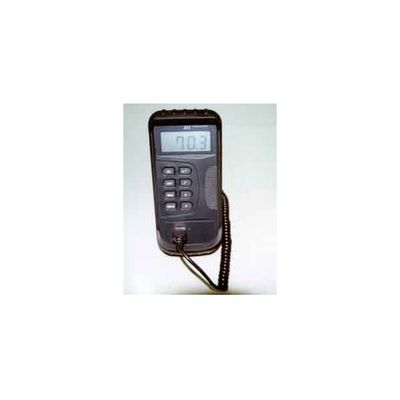

Digital Thermometer 3 1/2` digit liquid crystal display (LCD) with maximum reading to 1999. Standard 9V battery (NEDA 1604, IEC 6F22). Dimensions of the Digital Thermometer are 147mm (H) x 70mm (W) x 39mm (D) and the weight is 7.4 OZ (210G). Temperature Scale: Celsius or Fahrenheit user selectable. Measurement Range: -50ºC to 1300ºC (58ºF to 2000ºF). Resolution: 1ºC or 1ºF, 0.1ºC or 0.1ºF.

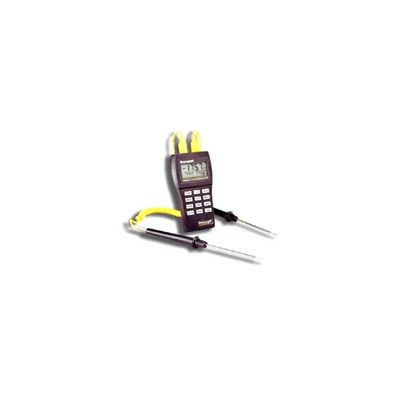

T1/T2 differential, 2 point Field Calibration, Field Calibration lock-out, MIN/MAX, HOLD, STORE, selectable resolution and optional AC adapter. Multi-data LCD and 12 button keypad allows for simplified set up. DuaLogR Thermocouple Thermometer and Logger features real time data logging and infrared data output capabilities. Meter accepts up to two thermocouple inputs. Choose from J, K, T, E, R, S, N or B thermocouples. Display temperatures in °F, °C, °R or °K scales. Resolution and input filtering are selectable to improve readability during rapidly changing temperatures.

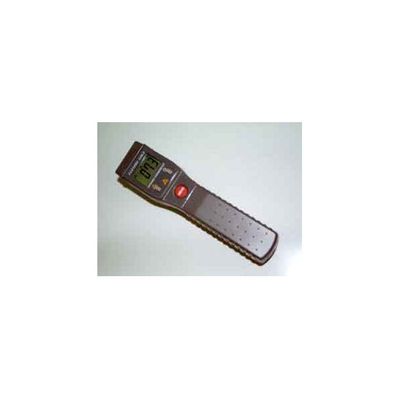

Response Time: 1 second. Spectral Response: 6 to 14mm nominal. Emissivity: Preset 0.95. Analog Output: 1mV/ºF. Detection Element: Thermopile. Optical Lens: Fresnal Lens. Sighting: 1-beam laser marker < 1mW (class 2). Field of View: 2.56"Æ at 39.37".

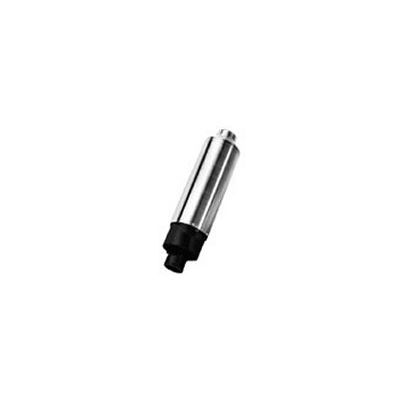

Air Heaters are designed to heat flowing air up to 1500ºF. These highly efficient air heaters can be accurately controlled with a variable voltage source, or with the use of feed back temperature controls. The compact size of the Air Heaters and the high efficiencies enable the Air Heaters to be used for a variety of applications and air flows ranging from 25 to 1500 S C F H. Air Heaters are compact in size and are available from .410 D X 41 /2" long in size. Air Heaters are compact in size and are available from .410 D X 41 /2" long in size.

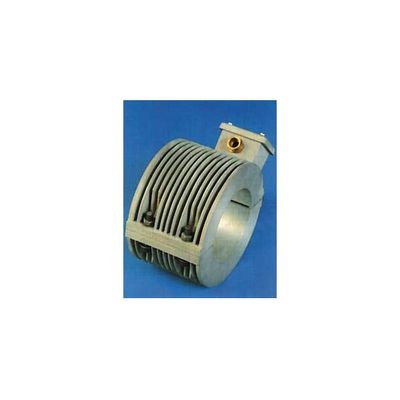

Aluminum Cast In Heaters offer a high quality and efficient method of heating and controlling Extruders, Compression Molding Platens, Heat Sealers, Vacuum Forming Platens. The heat cool capabilities of Aluminum Cast In Heaters provide high accuracy temperature control of +/- 2 degrees. These precision Aluminum Cast In Heaters are available in various sizes and watt densities ranging from 10 t0 60 watts per square inch. Aluminum Cast In Heaters are pressure casted insuring a dense porosity free casting that can been supplied with either cooling fins or seamless stainless steel cooling tubes that guarantee longer life.
